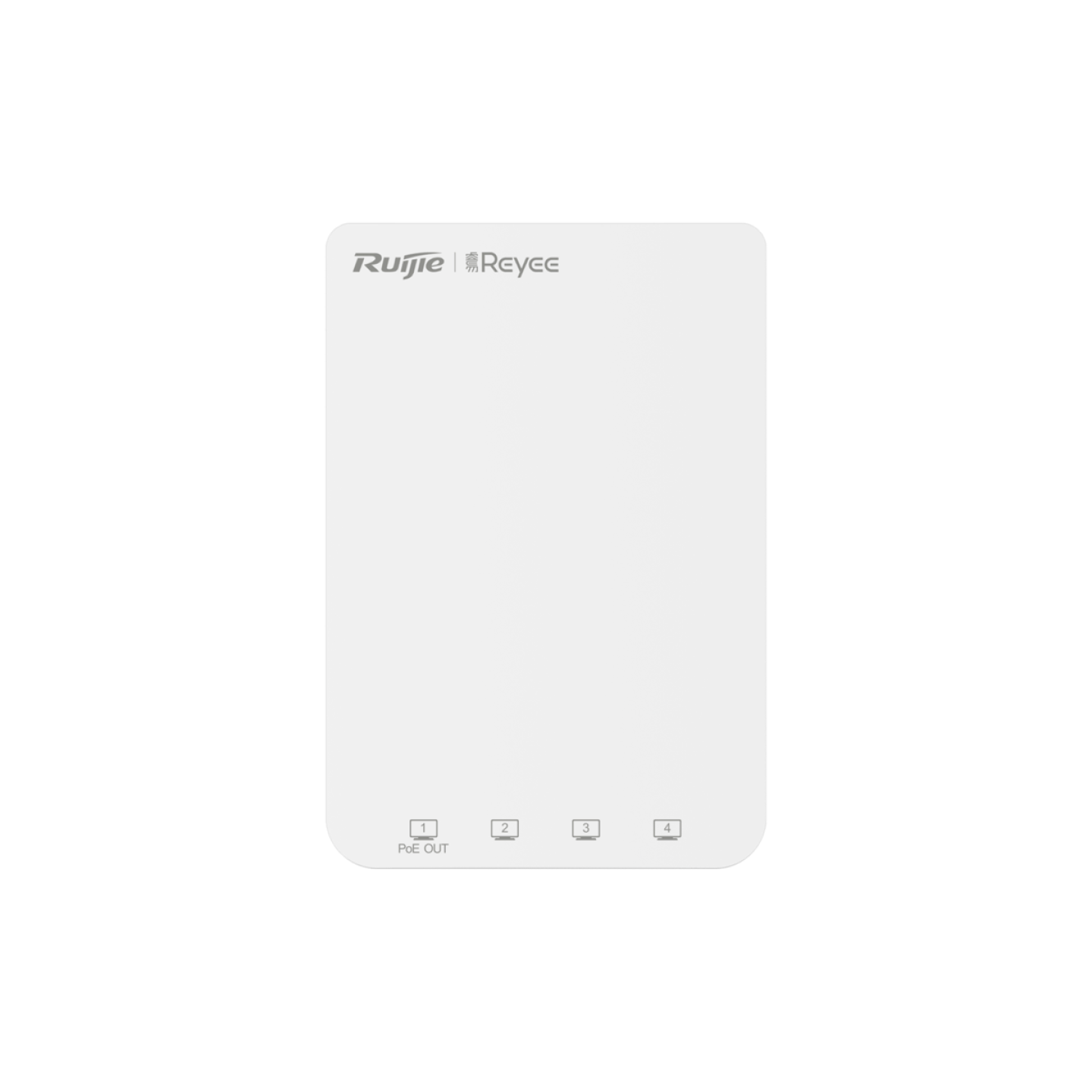

Ruijie Reyee RG-RAP1200(P)

Specifications

• Weight

≤ 0.24 kg

• 5 GHz Band

Up to 867 Mbps.

• Dimensions

126 mm × 86 mm × 50 mm

• Rear Panel

1 × 10/100/1000BASE-T Gigabit Uplink Port (PoE In).

• Front Panel

4 × 10/100/1000BASE-T Gigabit LAN Ports (used for connecting smart TVs, IPTV boxes, desktop computers, or IP phones).

• 2.4 GHz Band

Up to 400 Mbps.

• Wi-Fi Standard

Wi-Fi 5 (802.11ac Wave 2) with 2x2 MU-MIMO capability.

• Client Capacity

Supports up to 110 concurrent clients (Recommended: up to 80 clients).

• Physical Layout

Built to fit universally inside global standard 86mm wall mechanics boxes.

• Power Consumption

Maximum consumption is ≤ 8W (excluding active PoE output).

• Wireless Data Rate

Combined speeds up to 1267 Mbps.

• Management Features

Includes free cloud networking via the app, seamless Layer 2/3 network roaming, captive portals, and unified topology optimizations.

• PoE Passthrough (PoE Out)

When the access point is powered via an 802.3at (PoE+) switch, LAN Port 1 can output standard 802.3af PoE power. This allows you to power an external device (like an IP phone or an entry-level security camera) directly from the wall plate without using an extra power injector.

• Wired Interfaces (5 Gigabit Ports)
