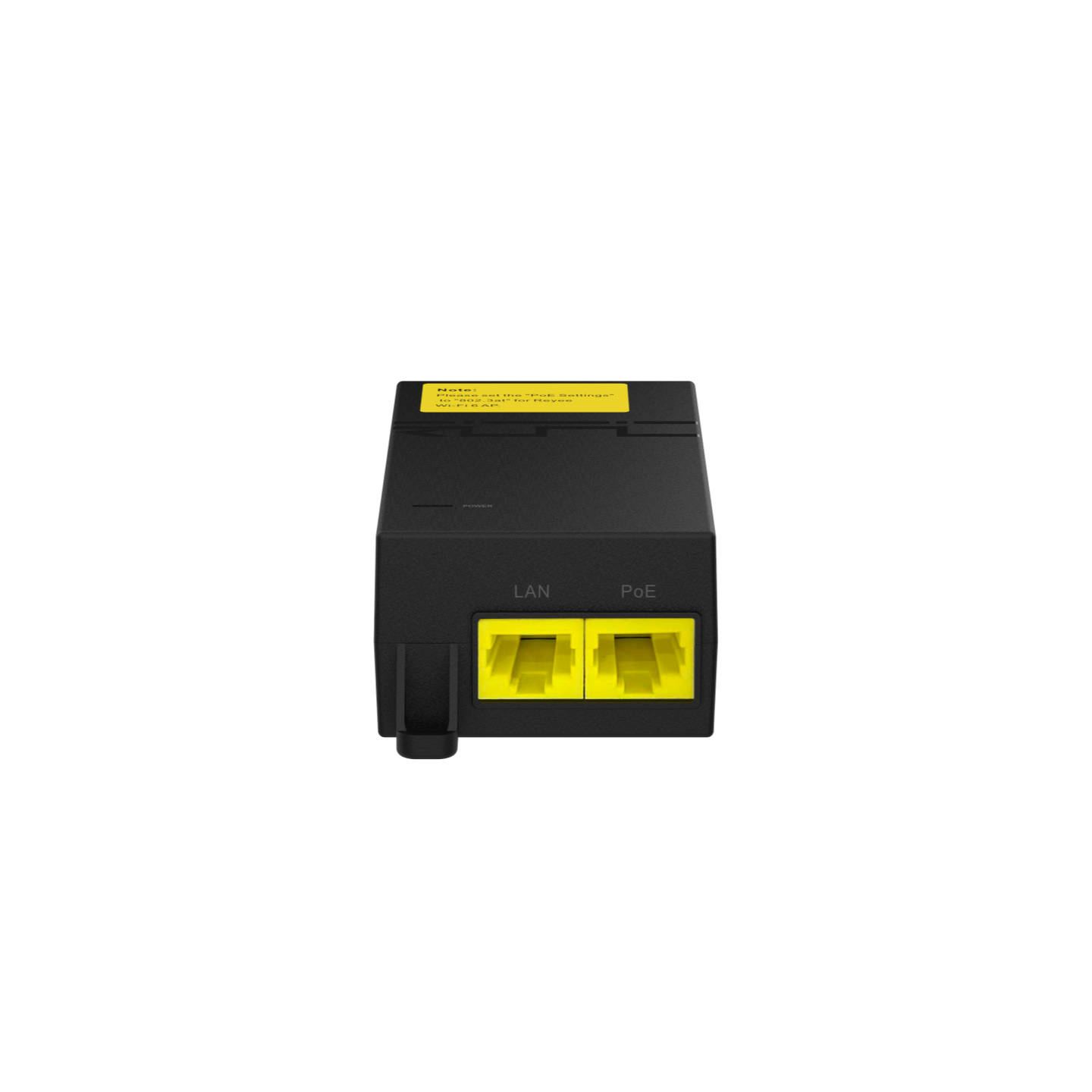

Ruijie Reyee RG-POE-AT30

Specifications

• Weight

145 ± 5 g (5.11 oz)

• Data Rate

Up to 1 Gbps (10/100/1000 Mbps)

• Dimensions

95.2 × 52.2 × 33.2 mm (3.75 × 2.05 × 1.31 in)

• Efficiency

87.06%

• Product Type

1-Port Gigabit Passive PoE+ Injector

• Certifications

CE, CB

• Ethernet Ports

1 × 1000Base-T (Gigabit Ethernet) Data-In port, 1 × RJ45 Data + Power Out port

• Inrush Current

< 100A @ 230V AC

• AC Input Voltage

100–240V AC, 50/60 Hz

• Surge Protection

Max. discharge current of 2000 A (8/20 µs) for power

• AC Connector Type

3-pole appliance inlet (IEC-320 C6 "Cloverleaf")

• Operating Humidity

5% to 95% RH (Non-condensing)

• PoE Output Standard

Passive PoE+ (Compatible with IEEE 802.3at / 802.3af devices up to 30W)

• Storage Temperature

-40°C to +70°C (-40°F to 158°F)

• Maximum Output Power

31.2 W

• Maximum Input Current

0.7 A

• Operating Temperature

-10°C to +45°C (14°F to 113°F)

• Output Voltage / Current

52V DC (±5%) @ 0.6A

• Power Pins / 2-Pair Powering

Pins 4,5 (+) and Pins 7,8 (-)
