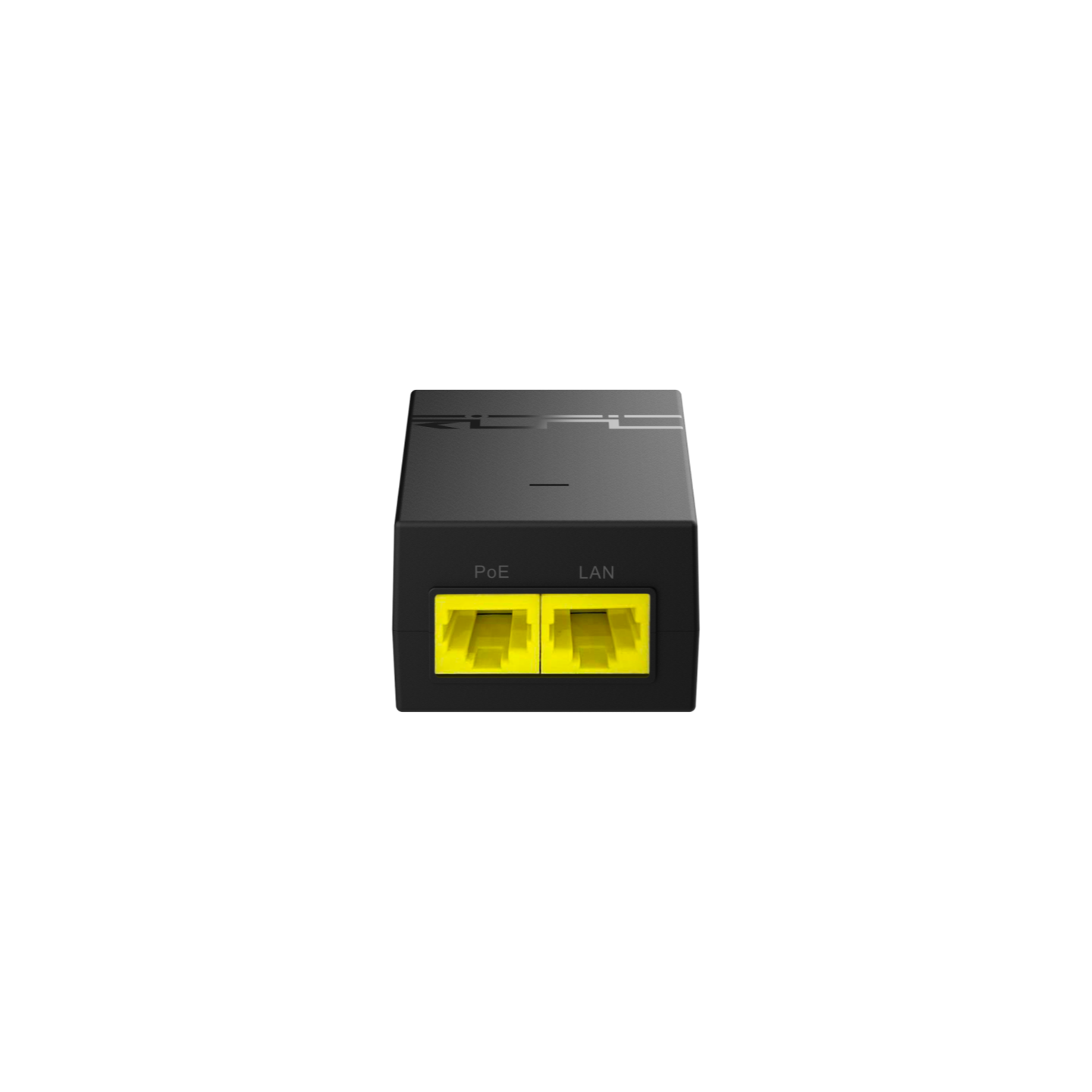

Ruijie Reyee RG-POE-AF15

Specifications

• Weight

95 ± 5 g (3.35 ± 0.18 oz)

• Data Rate

Up to 1 Gbps (1000Base-T)

• Dimensions

92 × 46.5 × 29.5 mm (3.62 × 1.83 × 1.16 in)

• AC Connector

IEC-320 C8

• Product Type

1-Port Gigabit Passive PoE Injector

• Certifications

CE, UKCA, RoHS

• Ethernet Ports

1 × 1000Base-T (Gigabit Ethernet) data-in port, 1 × RJ45 data + power out port

• Inrush Current

< 80A @ 230V AC

• AC Input Voltage

100–240V AC, 50/60 Hz

• Surge Protection

Max. discharge current of 2000 A (8/20 µs)

• Operating Humidity

5% to 95% RH (Non-condensing)

• PoE Standard / Type

Passive PoE (IEEE 802.3af compatible)

• Storage Temperature

-40°C to +70°C (-40°F to 158°F)

• Maximum Output Power

15.6 W

• Maximum Input Current

0.5 A

• Operating Temperature

-10°C to +45°C (14°F to 113°F)

• Output Voltage / Current

52V DC @ 0.3A

• Power Pins / 2-Pair Powering

Pins 4,5 (+) and Pins 7,8 (-)
