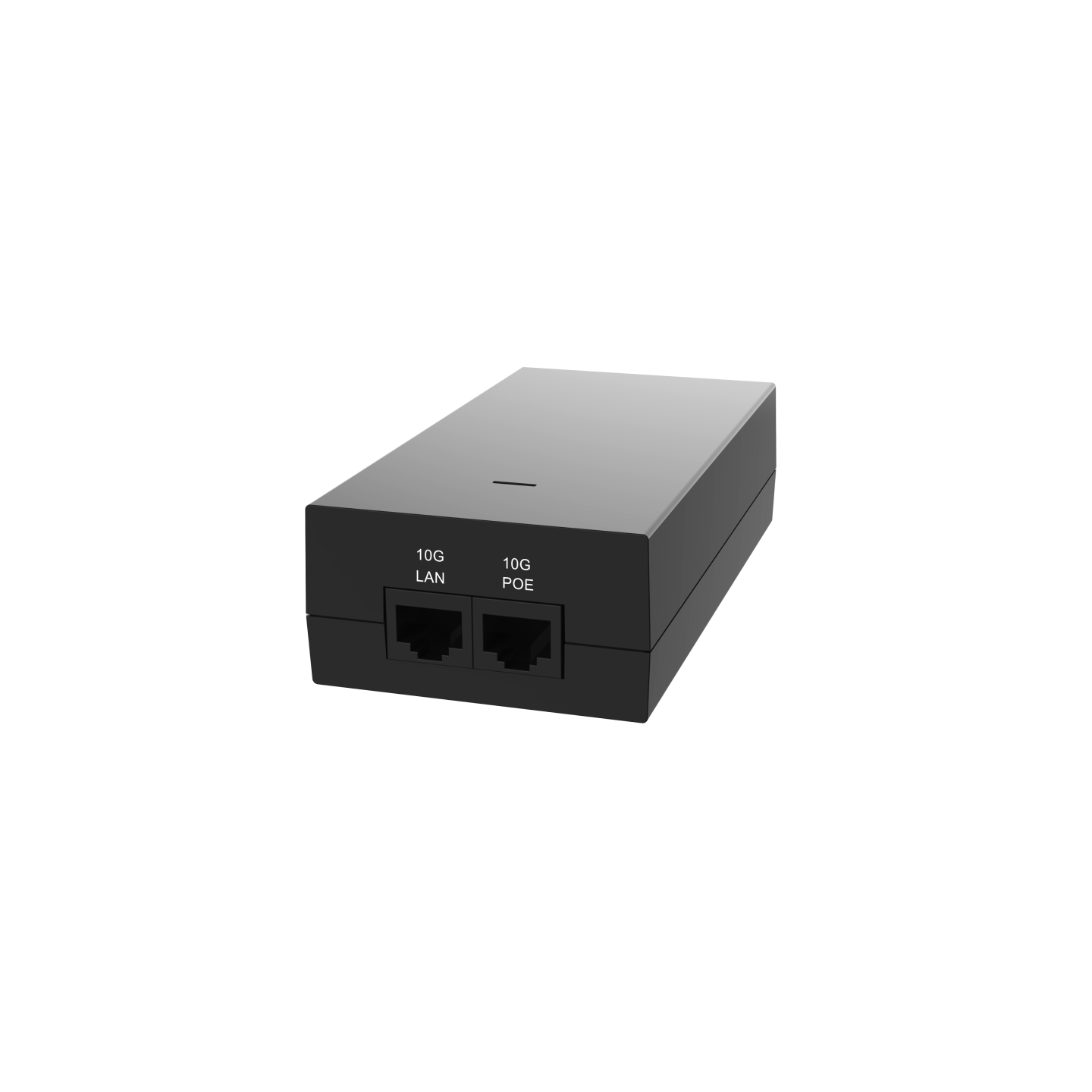

Ruijie Reyee RG-POE-50-60W-MG

Specifications

• Weight

225 grams (7.94 oz).

• Dimensions

137.4 mm × 62.3 mm × 32.6 mm (5.41" × 2.45" × 1.28").

• Negative (-)

Pins 3, 6, 7, 8

• Positive (+)

Pins 1, 2, 4, 5

• Input Current

Max 0.5A (at high voltage) to 1.5A depending on the power grid load.

• Network Speed

Multi-Gigabit 2.5 Gbps (2500Base-T). It fully supports backward compatibility with 10/100/1000 Mbps connections.

• Response Time

Less than 1 nanosecond (<1 ns).

• Certifications

CE, FCC, RoHS, CCC

• Ethernet Ports

2 × RJ45 Shielded Sockets (1 × Data In, 1 × Data + PoE Out).

• AC Connector Type

3-pole appliance inlet (Standard IEC C6 "Cloverleaf / Mickey Mouse" type).

• Operating Humidity

35% to 95% RH, non-condensing.

• Peak Pulse Current

36A (10/1000 µs) data lines.

• PoE Output Voltage

56V DC @ 1.08A (Some datasheets note a nominal 52V–56V variance).

• Clamping Protection

65V Power.

• Max Surge Discharge

500A (8/20 µs) power protection.

• Rated Input Voltage

100–240V AC @ 50/60 Hz.

• Storage Temperature

-40°C to +70°C (-40°F to 158°F).

• Maximum Output Power

Up to 60W maximum budget.

• Operating Temperature

-10°C to +45°C (14°F to 113°F) (Note: indoor use application only).

• Powering Pin Assignment

4-Pair Powering.

• Maximum Transmission Range

Standard Ethernet distance up to 100 meters (328 feet).

• PoE Standard Compatibility

Operates as a high-power Passive PoE / PoE++ Injector. It delivers power using Hi-PoE Type 3 standard delivery.
