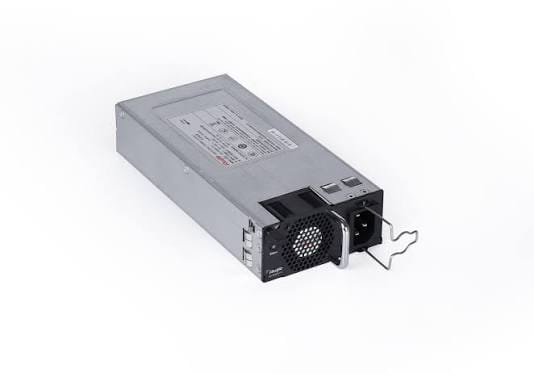

Ruijie Reyee RG-PA460I-FS

Specifications

• Net Weight

0.9 kg (1.98 lbs)

• Status LED

Front panel indicator (Off for no power or malfunction; Solid Green for normal power output).

• Form Factor

Hot-swappable modular design with a 3-pin AC input connector.

• Output Power

460 W max. output power

• Compatibility

Made specifically for the RG-NBS7003 core switch chassis (supports power redundancy).

• Output Voltage

12V DC system voltage

• Max. Input Current

6 A

• Rated Input Voltage

100V AC to 240V AC, 50/60 Hz

• Ground-Leakage Current

< 3 mA

• Max. Input Voltage Range

90V AC to 264V AC, 47 Hz to 63 Hz

• Max. Operating/Storage Altitude

Up to 5,000 m (16,404 ft)
