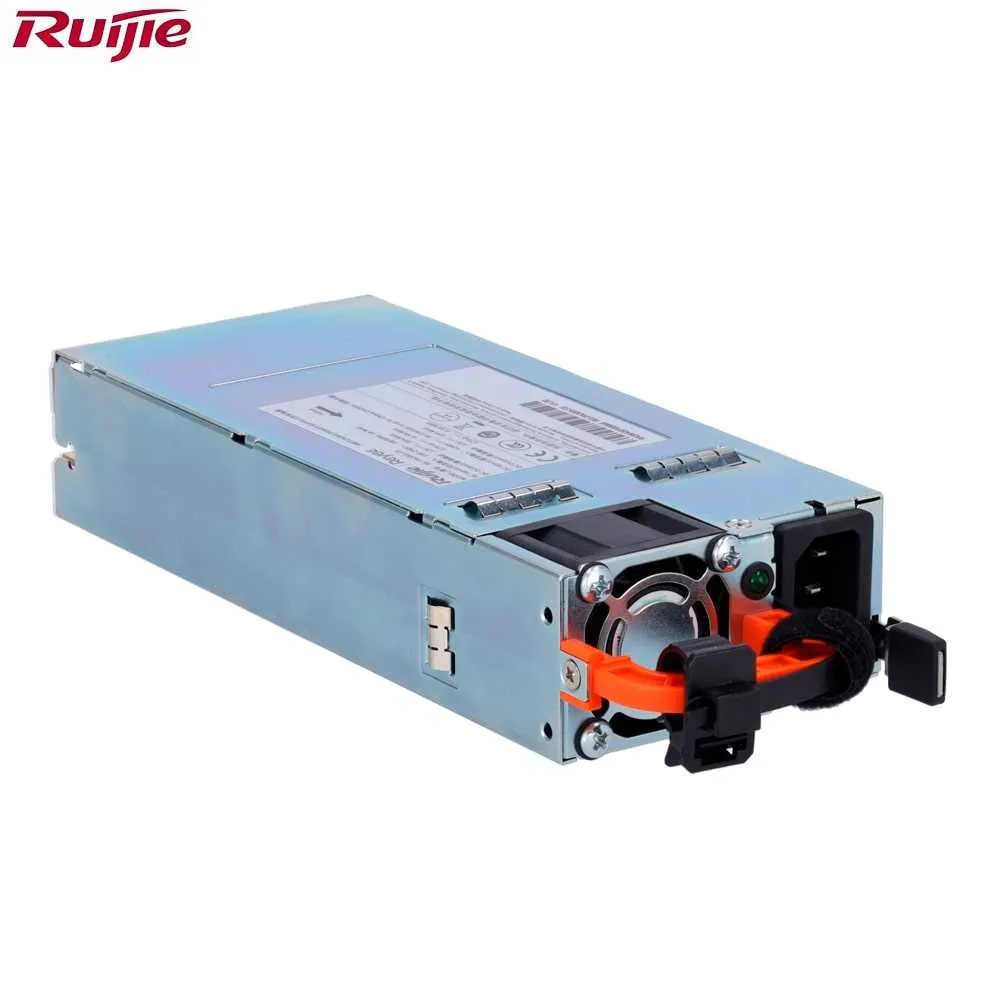

Ruijie Reyee RG-PA300I-FS
Specifications
- • Off
- No power input detected or module is experiencing a fault condition.
- • Net Weight
- 0.85 kg (1.87 lbs)
- • Status LED
- 1 × Front-panel Green LED
- • Device Type
- System Power Supply Module
- • Solid Green
- Power module is outputting voltage normally.
- • Brand / Model
- Ruijie / Reyee RG-PA300I-FS
- • Output Voltage
- 12V DC delivered directly to the switch midplane
- • Input Interface
- Front-panel integrated male AC connector with 3 pins
- • Output Capacity
- • Max Output Power
- 300 W
- • Safety Protection
- Double pole / neutral fusing topology
- • Physical Connectors
- • Chassis Compatibility
- Installs into the 2 dedicated power slots of the RG-NBS7003 modular switch (Supports 1+1 AC power redundancy).
- • Maximum Input Current
- 5 A
- • AC Input Configuration
- • Ground Leakage Current
- ≤ 1.5 mA
- • Power Cord Requirements
- Includes standard 10A power cord with a physical security latch.
- • Diagnostics & Monitoring
- • Rated Input Voltage Range
- 100 V AC to 240 V AC @ 50/60 Hz
- • Maximum Operating Altitude
- Up to 5,000 meters (16,404 feet)
- • Maximum Input Voltage Window
- 90 V AC to 264 V AC @ 47 Hz to 63 Hz
- • Physical & Environmental Profile
