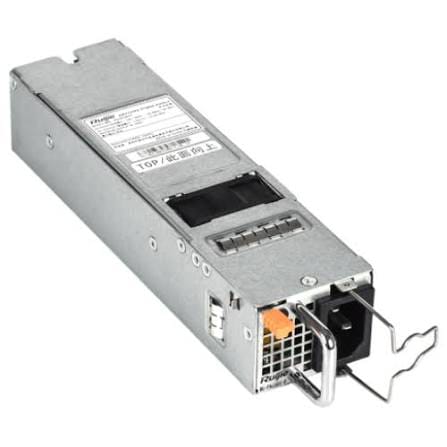

Ruijie Reyee RG-PA150I-FS

Specifications

• Net Weight

0.55 kg (1.21 lbs)

• Cooling Profile

Side-to-rear directed airflow structure (designated by the -FS profile suffix) designed to integrate seamlessly into the main chassis thermal management loop.

• Leakage Current

< 3.5 mA at 110/220 V AC

• Output DC Voltage

12 V DC delivered directly to the switch chassis backbone

• Status Monitoring

Features a front-panel Output Status LED indicator (solid green indicates normal power delivery; off signals an output fault or lack of input power).

• Interface Connector

Standard 3-pin AC connector compatible with a 10A power cord

• Rated Input Voltage

100 V AC to 240 V AC at 50/60 Hz

• Maximum Output Power

150 Watts

• Maximum Input Current

< 3 A at full load

• Maximum Voltage Range

90 V AC to 264 V AC at 47/63 Hz

• Maximum Operating/Storage Altitude

5,000 meters (16,404 ft)
