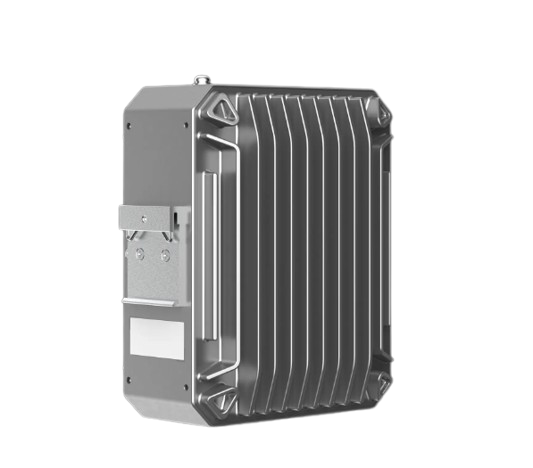

Ruijie Reyee RG-NIS3100-8GT2SFP-HP

Specifications

• Enclosure

Fanless, IP40-rated heavy-duty aluminum alloy chassis relying entirely on natural thermal convection.

• Copper Ports

8 × 10/100/1000Base-T (Gigabit Ethernet) RJ45 ports

• Packet Buffer

4.1 Mbit

• PoE Standards

IEEE 802.3af (PoE) and IEEE 802.3at (PoE+) across all 8 copper ports.

• Power Pin Out

Pin layout 1–2 (+), 3–6 (-).

• Maximum Output

Up to 30W per individual port.

• Forwarding Rate

14.88 Mpps

• Management Port

1 × RJ45 Console Port

• MAC Address Table

8,000 entries

• Fiber Uplink Slots

2 × 1GE SFP ports for long-distance fiber backhaul

• Switching Capacity

20 Gbps

• Total Active Ports

10 ports

• Electrical Immunities

Promotes 6kV service port surge protection, 4kV power connector defense, and 8kV Air / 6kV Contact ESD protection.

• Operating Temperature

Performs reliably from -40°C to +80°C (-40°F to 176°F) depending on cabinet ventilation profiles.

• L2 Networking Features

Supports Spanning Tree Protocols (STP/RSTP), Loop Prevention, Static Link Aggregation (LAG), DHCP Snooping, and up to 4094 concurrent VLAN IDs.

• Mounting & Form Factor

Measures 85 mm × 132 mm × 165 mm (3.35 × 5.2 × 6.5 inches) and weighs 1.42 kg. Supports standard 35mm DIN-rail or wall mounting brackets.

• Power Input Redundancy

Features a dual DC terminal block input (12V to 56V operating range) supporting a 1+1 backup loop to avoid system power failure.

• Total PoE Power Budget

240 W maximum budget (requires an optimal 46V to 56V DC input).

• Cloud-Managed Ecosystem

Operates natively with the Ruijie Cloud Platform (free for life) offering Self-Organizing Networks (SON), remote monitoring, and instant zero-touch deployment via the mobile app.

• Environmental Shielding

Applied with a 50-µm anti-corrosion conformal coating to isolate PCBs against extreme humidity and coastal salt-spray degradation.

• PoE Intelligent Controls

Equipped with a PoE Watchdog that automatically detects hanging or unresponsive connected cameras/APs and performs a cold reboot on the port.

• Sub-50ms Ring Recovery (ERPS)

Fully implements Ethernet Ring Protection Switching (ERPS), enabling rapid structural failover and loop elimination in under 50 milliseconds.
