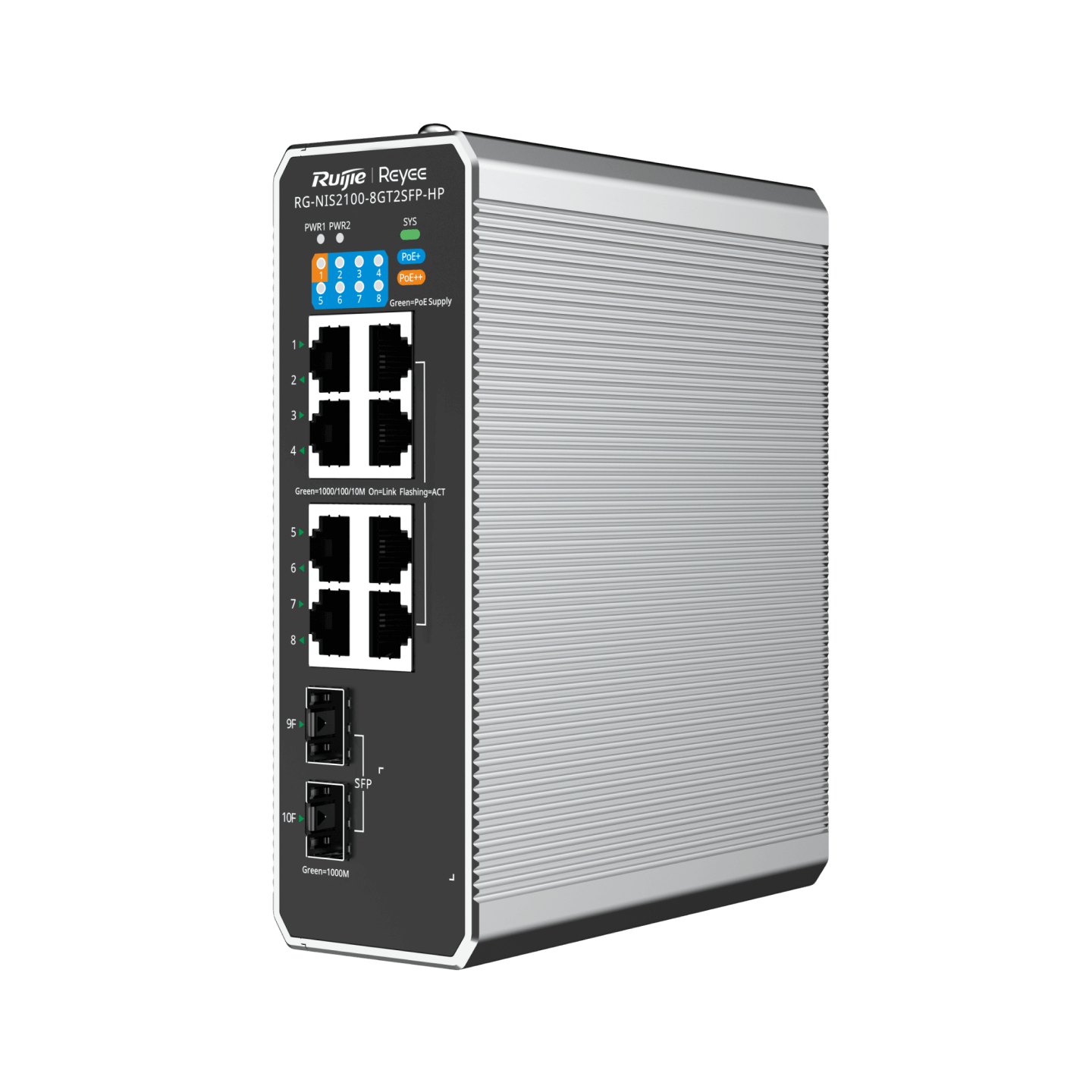

Ruijie Reyee RG-NIS2100-8GT2SFP-HP

Features

• Key Specifications
• • Switch Type: Layer 2 Industrial Cloud-Managed Switch
• • Total Ports: 10 ports (8 RJ45 copper ports + 2 SFP optical ports)
• • Ethernet Port Layout:
• • Port 1: 10/100/1000BASE-T PoE++ (802.3bt Type 4) port — supplies up to 90W of power to a single heavy-draw device (like a large heated PTZ dome camera).
• • Ports 2–8: 10/100/1000BASE-T PoE+ (802.3at/af) ports — supply up to 30W per port.
• • Ultra-Long-Haul Transmission: Natively supported on Ports 5–8.
• • Optical Uplink Ports: 2 x 1GE SFP optical ports for long-range backbone or fiber ring connections.
• • PoE Power Budget:
• • Default System Capacity: 228W
• • Maximum Adjustable Threshold: Up to 300W (configurable via the local web interface or Ruijie Cloud when matching it with a high-capacity power module).
• • PoE Power Pins:
• • Port 1 (PoE++): 1–2 (–), 3–6 (+), 4–5 (+), 7–8 (–)
• • Ports 2–8 (PoE+): 1–2 (+), 3–6 (–)
• • Switching Capacity: 20 Gbps
• • Packet Forwarding Rate: 14.8 Mpps
• • MAC Address Table: 8,000 entries
• Industrial Reliability & Hardware Controls
• • Physical Protection: Heavy-duty, fanless metal enclosure with an IP40 rating (shields interior electronics against objects or dust particles ≥ 1 mm).
• • Operating Temperatures: Severe climate tolerance certified from -40°C to +75°C (-40°F to 167°F).
• • Surge Immunity: 6 kV line surge protection built into the RJ45 network interfaces.
• • Dual Power Redundancy: A top-mounted dual-input DC terminal connector (46V to 57V DC) allows you to bridge two separate power supplies for seamless hot-standby failover.
• • On-Chassis DIP Switch Functions:
• • ERPS Mode: Manually forces active optical ring provisioning.
• • Isolation Mode: Isolates downstream communication between local client ports.
• • Extend Mode: Slowers Ports 5–8 down to 10 Mbps but extends standard Cat5e copper signaling runs up to 200 meters.
• • Alarm Mode: Toggles localized power-in-position drop-out alarms.
• Software Intelligence
• • Management Platforms: Complete lifetime cloud management through the Ruijie Cloud Web Portal or the Reyee Mobile App, alongside an independent Web UI and command line options.
• • ERPS Self-Healing Rings: Leverages the Ethernet Ring Protection Switching (ERPS) standard to implement secure fiber-loop rings, unlocking rapid sub-50ms traffic recovery times if a line gets physically cut.
• • Smart PoE Watchdog: Monitors connected endpoints 24/7 and executes a targeted power-cycle on the specific PoE port if a device locks up.
• • Form Factor: Compact industrial chassis measuring 50 mm x 155 mm x 130 mm; mounts onto a standard 35mm DIN-rail or wall backing plates.
• • Warranty: 5-year manufacturer's warranty.
