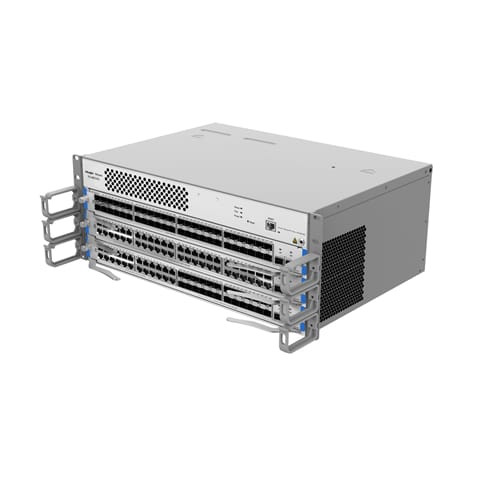

Ruijie Reyee RG-NBS7003

Specifications

• Max VLANs

4,094.

• Chassis Slots

3 line card slots total. Slot 1 accepts any standard line card to double as the supervisor control engine (must be occupied), leaving slots 2 and 3 open for raw port expansion.

• ARP Table Size

8,000 entries.

• System Capacity

• Layer 3 Protocols

Full support for static routing, RIP, OSPF, DHCP Server, DHCP Snooping, ACLs, and Virtual Cluster Switching (VCS).

• Switching Capacity

Up to 960 Gbps (Hardware baseline capability varies up to 480 Gbps full-duplex depending on active modules).

• Maximum Port Density

Capable of scaling up to 144 Gigabit RJ45 copper ports, 144 Gigabit SFP fiber ports, or 48 ultra-speed 10GE SFP+ ports depending on the cards populated.

• Cooling & Reliability

Features 1 hot-swappable industrial fan module (M7003-FAN) providing multi-directional smart airflow. Built with 6KV port and power surge protection and boasts an MTBF of over 400,000 hours.

• MAC Address Table Size

32,000 entries.

• Packet Forwarding Rate

Up to 714.24 Mpps (Scales from 360 Mpps baseline).

• Dimensions & Form Factor

442 mm × 313 mm × 175 mm (Standard 4 RU rackmount size); weighs 9.6 kg empty.

• Cloud Fleet Orchestration

Out-of-the-box configuration and lifetime control using the Ruijie Cloud App via Self-Organizing Network (SON) deployment.

• High Availability & Power Redundancy

Equipped with 2 hot-swappable power supply slots supporting 1+1 AC power redundancy (supports RG-PA300I-FS 300W or RG-PA460I-FS 460W modules).
