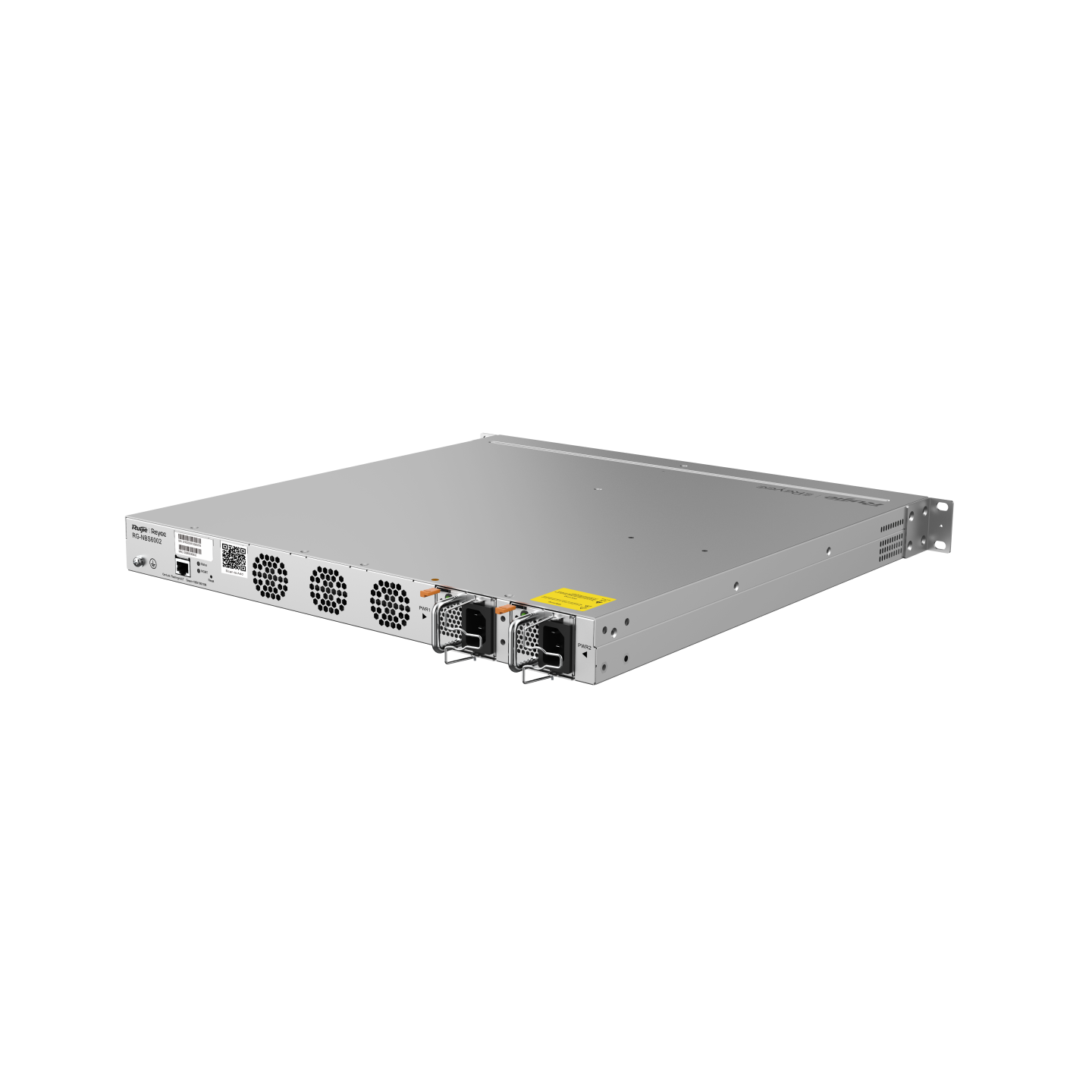

Ruijie Reyee RG-NBS6002

Specifications

• Chassis Layout

1U Rackmount form factor containing 2 line card slots and 2 power supply module slots.

• VLAN Capability

Supports up to 4,094 active VLAN IDs including Port-based, Voice, and MAC-based segregation protocols.

• Memory & Storage

Equipped with a 1 GHz built-in single-core CPU, 1 GB RAM, and 256 MB Flash memory.

• Power Redundancy

Supports 1+1 hot-swappable power redundancy using dual RG-PA150I-FS AC power supply units (150W max output each; sold separately).

• Table Thresholds

Supports up to 32,000 MAC address entries and an 8,000-route ARP table.

• Warranty Support

Includes Ruijie’s hardware-backed 5-year warranty scheme.

• High Availability

Integrates Virtual Cluster Switching (VCS) allowing multi-chassis stack failovers within seconds.

• Chassis Dimensions

581 mm × 533 mm × 131 mm

• Cloud Infrastructure

Native out-of-the-box integration into the Ruijie Reyee App/Cloud ecosystem for zero-touch provisioning (SON), topology mapping, and remote troubleshooting.

• Performance Capacity

Features a 176 Gbps switching capacity combined with a 132 Mpps packet forwarding rate.

• Routing Capabilities

Supports Layer 3 features including Static Routing, RIP, and OSPF.

• MTBF / Surge Protection

Tested for a lifespan > 400,000 hours with robust 6 kV common-mode surge protection across its data streams.
