Networking

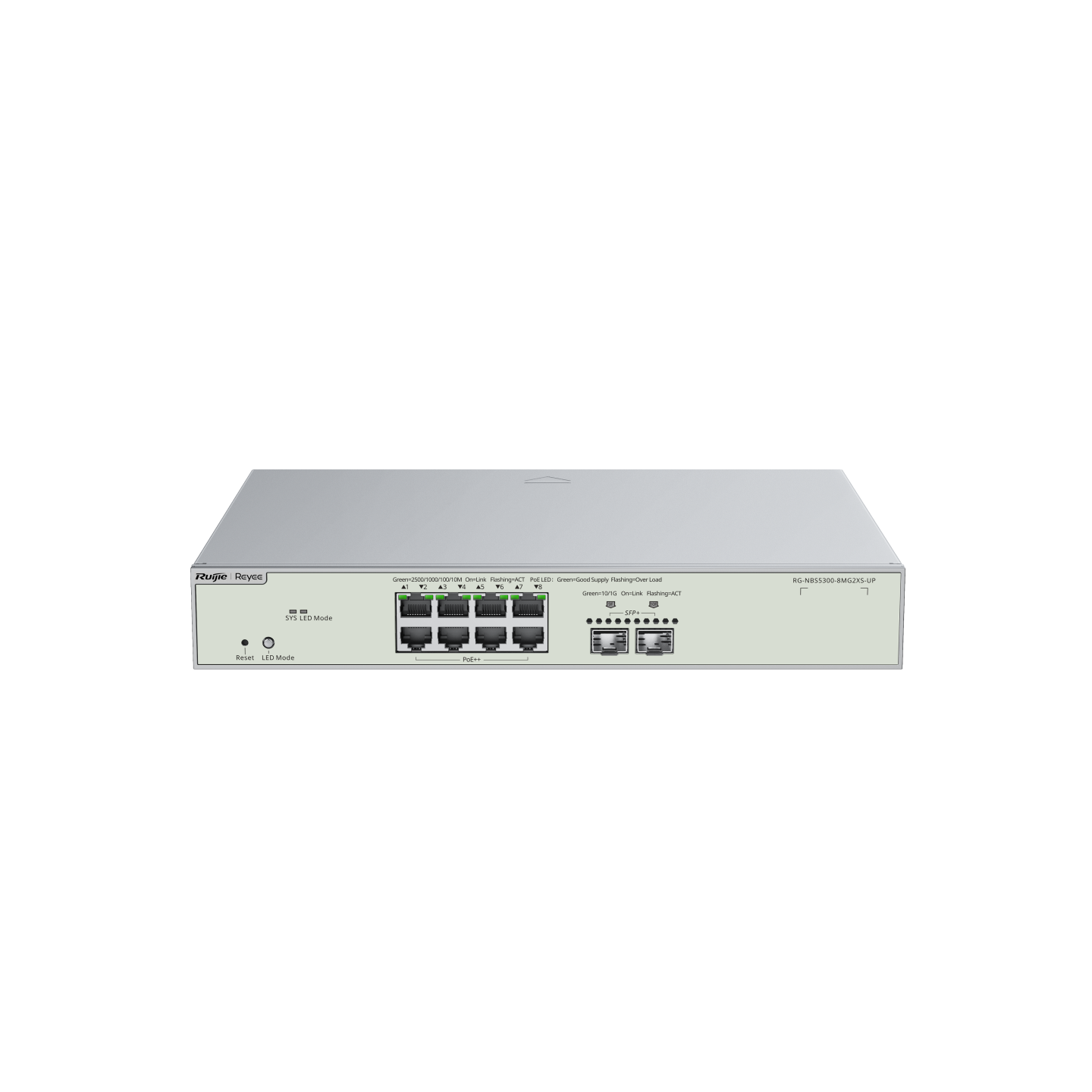

Ruijie Reyee RG-NBS5300-8MG2XS-UP
Specifications
- • Ports
- • Weight
- 2.5 kg (5.51 lbs)
- • Cooling
- 1 integrated fan.
- • Warranty
- 5 years
- • PoE Budget
- 370 W total power allocation
- • Jumbo Frame
- 9,216 bytes.
- • RAM / Flash
- 512 MB RAM / 256 MB Flash memory
- • VLAN Limits
- Up to 4,094 active VLAN IDs.
- • Power Supply
- Fixed internal AC power module (100–240V AC input)
- • Forwarding Rate
- 59.52 Mpps
- • Intelligent PoE
- Features PoE Watchdog to automatically detect and power-cycle frozen endpoints.
- • Network Security
- Equipped with IP-MAC-Port Binding, Access Control Lists (ACLs), Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, and Radius Authentication.
- • Surge Protection
- ±6 kV lightning immunity on both service ports and power connectors.
- • MAC Address Table
- 16,000 entries
- • Management Engine
- Ruijie Cloud Platform (free lifetime remote monitoring, mobile app, configuration, and self-organizing network features), standalone local Web UI, or SNMP.
- • Switching Capacity
- 80 Gbps
- • Layer 3 Capabilities
- Supports Static Routing, DHCP Server, ARP tables (up to 2,000), and fundamental Layer 3 orchestration.
- • Max Power Consumption
- ≤ 450 W (under full 370W PoE load)
- • Packet Buffer / Cache
- 12 Mbit
- • PoE Standards & Power
- • Dimensions (W x D x H)
- 300 mm x 233 mm x 43.6 mm (Compact footprint, 1U rackmount/desktop)
