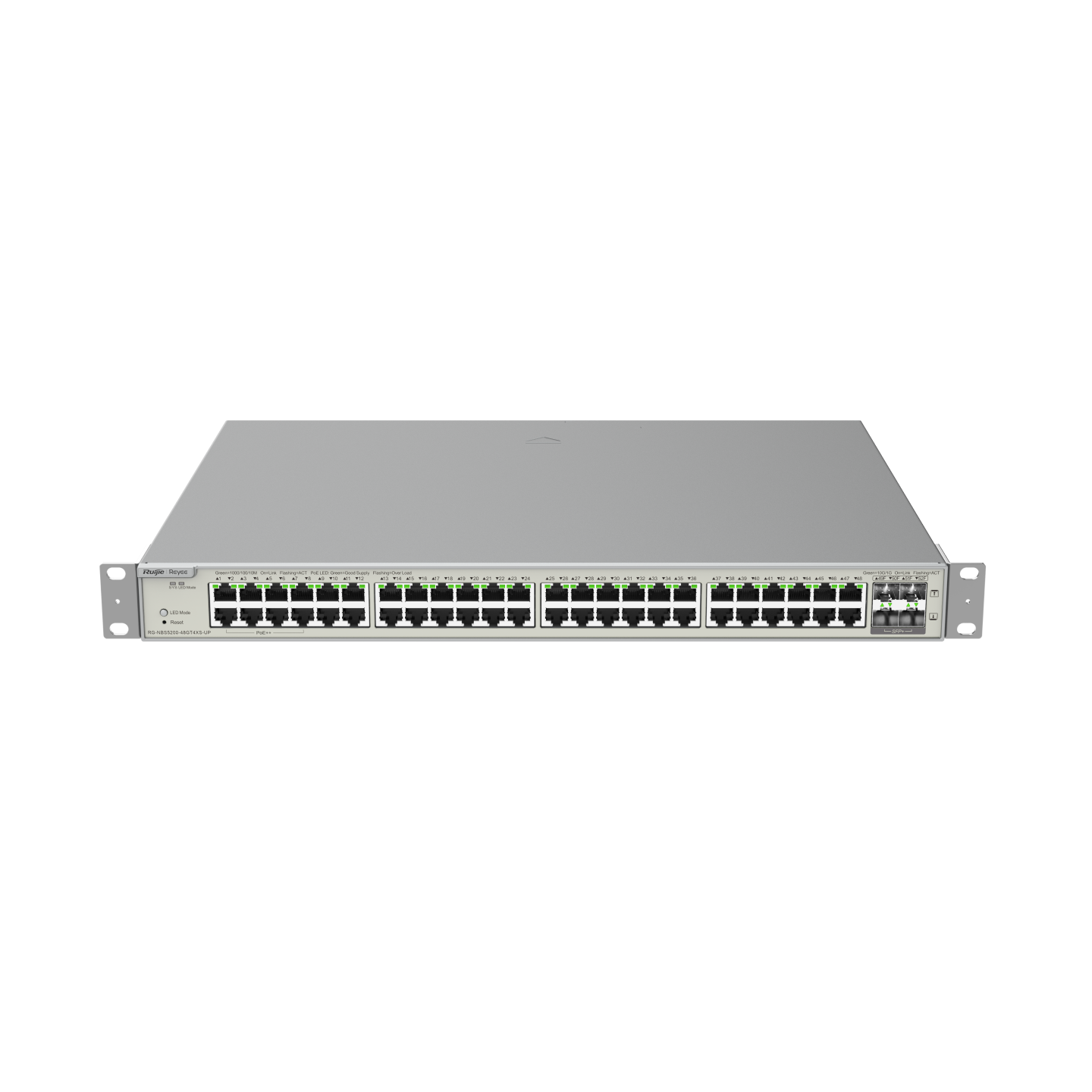

Ruijie Reyee RG-NBS5200-48GT4XS-UP
Specifications
- • Ports
- • Weight
- 5.64 kg (12.43 lbs)
- • Cooling
- 3 built-in fixed fans with dual side-to-rear airflow.
- • Stacking
- Supports Virtual Chassis System (VCS) hardware stacking.
- • Warranty
- 5 years
- • PoE Budget
- 740 W total power allocation
- • Jumbo Frame
- 9,216 bytes
- • Ports 1–8
- Support IEEE 802.3bt PoE++ (up to 90W per port) for high-draw PTZ cameras or LED displays.
- • RAM / Flash
- 512 MB RAM / 256 MB Flash memory
- • Ports 9–48
- Support IEEE 802.3af/at PoE/PoE+ (up to 30W per port).
- • Maximum VLANs
- 4,094
- • Forwarding Rate
- 132 Mpps
- • Intelligent PoE
- Features PoE Watchdog to automatically reboot frozen powered devices.
- • Surge Protection
- Lightning protection of up to ±6 kV for both service ports and the power connector.
- • Layer 3 Protocols
- Supports Static Routing, OSPF, RIP, DHCP Server, and ECMP.
- • MAC Address Table
- 16k
- • Power Consumption
- 75.6 W (with no PoE load) up to 815.6 W (with maximum PoE load).
- • Switching Capacity
- 176 Gbps
- • Management Platforms
- Ruijie Cloud Web / App (lifetime free cloud orchestration), localized standalone eWeb UI, or SNMP.
- • Dimensions (W x D x H)
- 440 mm x 357.6 mm x 43.6 mm (1U Rackmount, significantly deeper than the non-PoE version)
- • PoE Allocations & Standards
