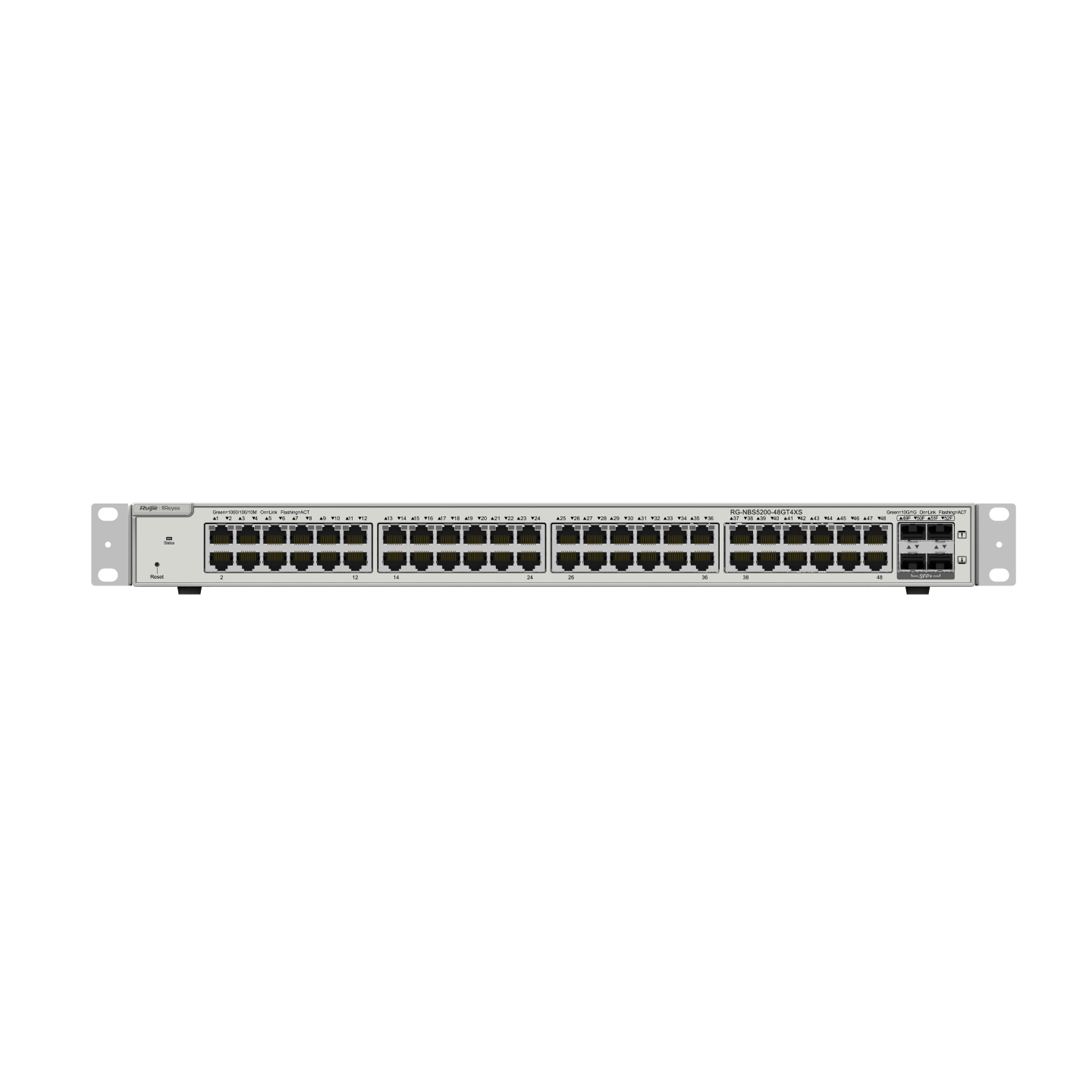

Ruijie Reyee RG-NBS5200-48GT4XS
Specifications
- • Ports
- • Stacking
- Supports Virtual Chasis System (VCS) hardware stacking.
- • Warranty
- 5 years
- • Jumbo Frame
- 9,216 bytes
- • PoE Support
- None (Non-PoE switch) (Note: If you require PoE, look for the RG-NBS5200-48GT4XS-UP model which offers a 740W power budget).
- • RAM / Flash
- 512 MB RAM / 256 MB Flash memory
- • Power Supply
- Built-in fixed AC power supply (100–240V AC, 50/60Hz)
- • Maximum VLANs
- 4,094
- • Packet Buffer
- 16 Mbit
- • Forwarding Rate
- 132 Mpps
- • Surge Protection
- Lightning protection of up to ±6 kV for service ports
- • Layer 3 Protocols
- Supports Static Routing, OSPF, RIP, and DHCP Server functionality.
- • MAC Address Table
- 16k
- • Power Consumption
- ≤ 28 W
- • Switching Capacity
- 176 Gbps
- • Management Platforms
- Unified lifetime free management through Ruijie Cloud App/Web, standalone eWeb UI, or SNMP.
- • Operating Temperature
- 0°C to +50°C (32°F to 122°F)
- • Dimensions (W x D x H)
- 440 mm x 267.5 mm x 43.6 mm (1U Rackmount)
