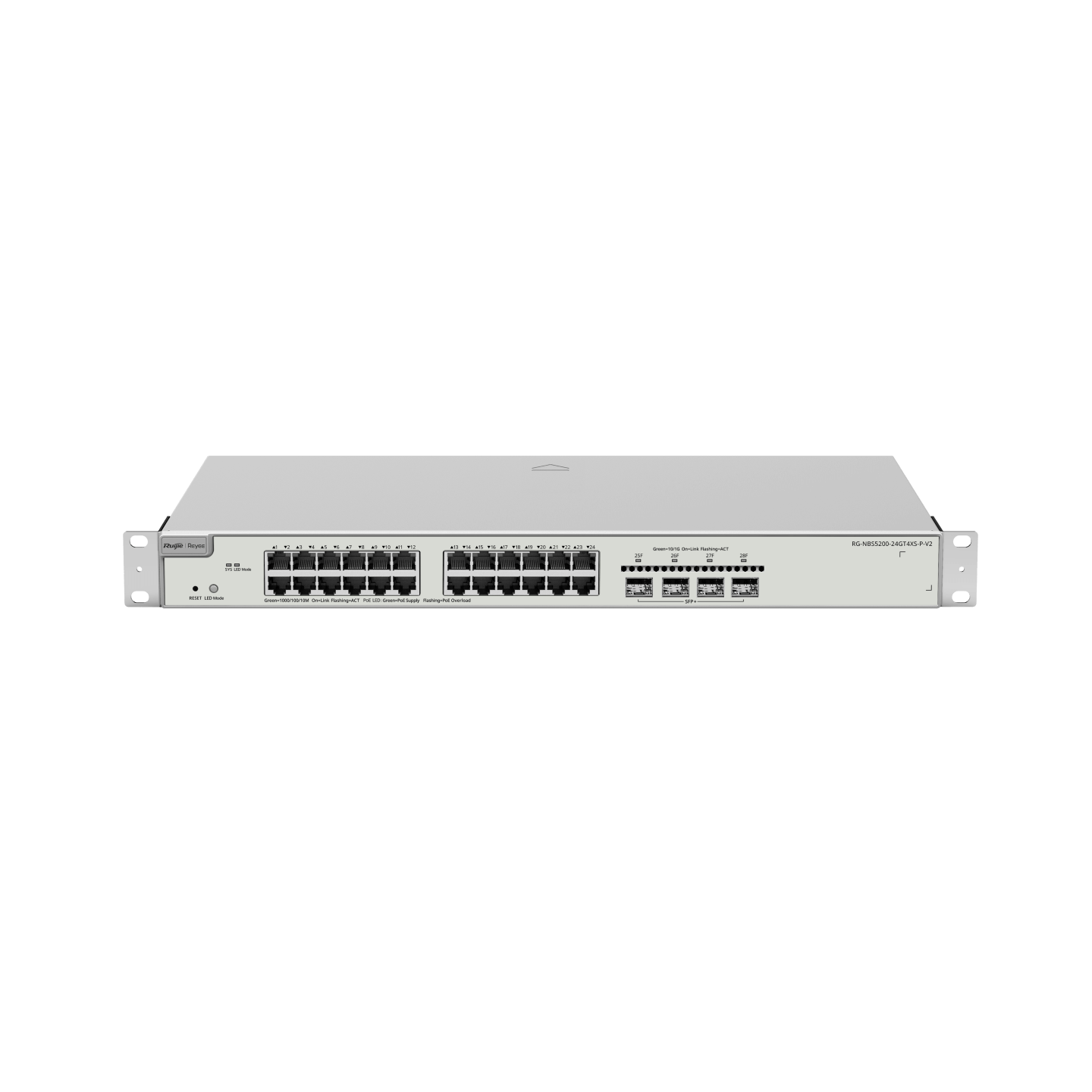

Ruijie Reyee RG-NBS5200-24GT4XS-P-V2

Specifications

• Dimensions

440 mm x 222.6 mm x 44 mm (Compact 1U rack-mountable form factor).

• Core Hardware

Single-core 800 MHz MAC processor, 512 MB RAM, and 256 MB Flash memory.

• PoE Standards

Supports IEEE 802.3af and IEEE 802.3at (PoE+).

• Cooling system

Temperature-adaptive PWM quiet fans with optimized airflow.

• Forwarding Rate

96 Mpps

• Traffic Control

VLAN configuration (up to 4094), IGMP Snooping (v1/v2), Link Aggregation (LACP / Static LAG), and Port Isolation.

• Warranty Policy

5 years.

• Layer 3 Features

Layer 3 static routing, OSPF, RIP, and DHCP Server functionality.

• Power Allocation

Intelligent power allocation alongside an integrated PoE Watchdog feature that automatically power-cycles frozen or unresponsive terminal devices.

• Surge Protection

±6 kV common-mode protection on service ports.

• Total PoE Budget

370 Watts.

• Per-Port Capacity

Up to 30W maximum output per port.

• Management Support

Multi-option management using the local WebUI, SNMP, or free lifetime cloud access through the Ruijie Cloud platform or mobile app. Includes self-organizing networks (SON) and zero-touch remote provisioning.

• Port Configuration

24 x 10/100/1000Base-T Ethernet ports (PoE/PoE+ capable) and 4 x 10GE SFP+ uplink slots.

• Reliability (MTBF)

Up to 400,000 hours.

• Switching Capacity

128 Gbps

• Total Power Consumption

Maximum 30W without PoE load, scaling up to 430W under a maximum PoE load.
