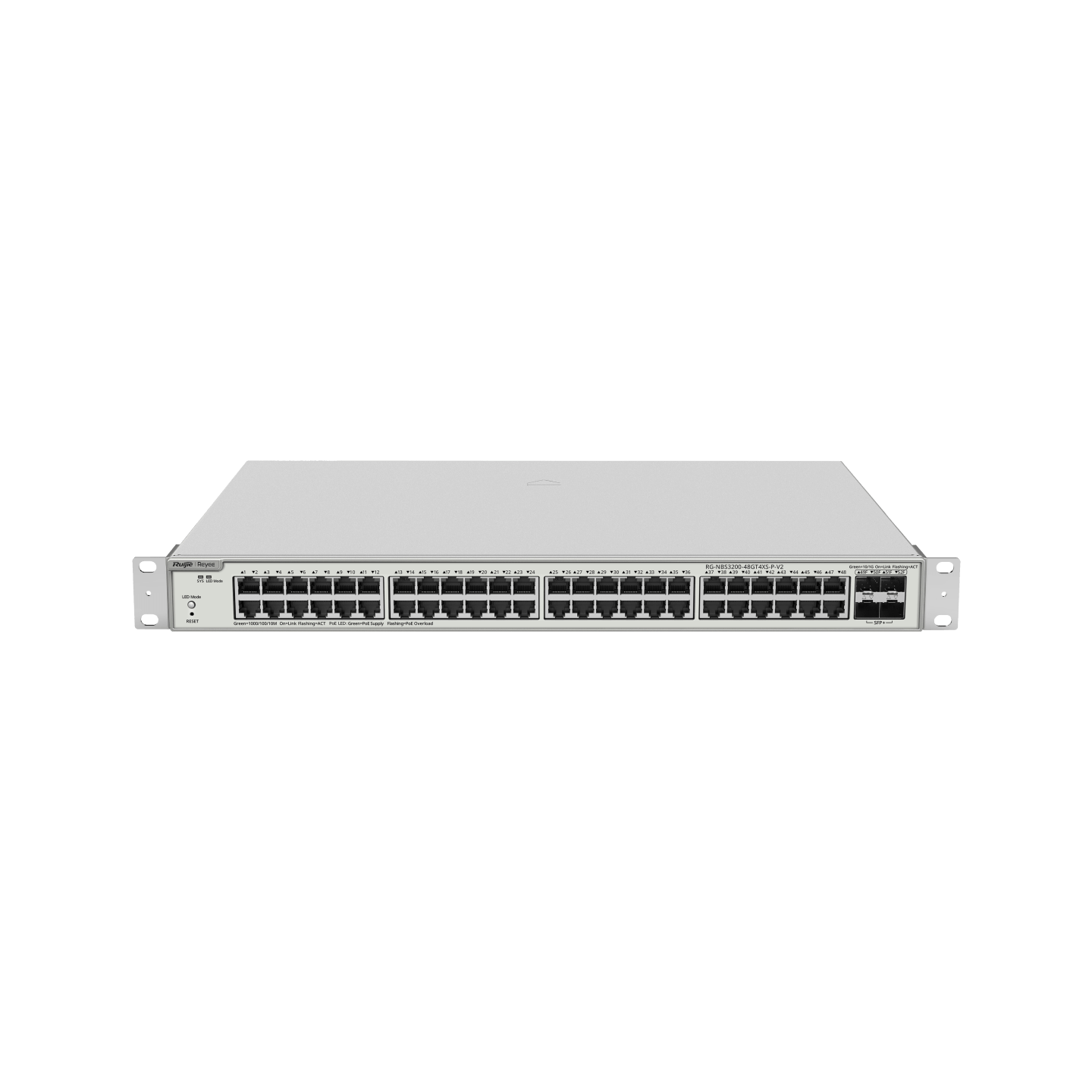

Ruijie Reyee RG-NBS3200-48GT4XS-P-V2

Features

• Hardware & Interface Specifications
• • Downlink Ports: 48 × 10/100/1000BASE-T RJ45 ports supporting PoE/PoE+ (IEEE 802.3af/at)
• • Uplink Ports: 4 × 10GE SFP+ optical ports
• • Max PoE per Port: 30 W
• • PoE Budget: 370 W total power budget
• • PoE Pins: 1–2 (+), 3–6 (-)
• Performance & System Architecture
• • Switching Capacity: 176 Gbps
• • Forwarding Rate: 132 Mpps
• • RAM: 512 MB
• • Flash Memory: 256 MB
• • Layer Type: Layer 2+ (supports static routing and SVI, though not a DHCP server)
• Power & Environment
• • Power Input: 100 V AC to 240 V AC, 50/60 Hz (Max input current: 6 A)
• • Power Consumption: 46 W (without PoE load) / up to 450 W (with full PoE load)
• • Operating Temperature: 0 °C to +50 °C (32 °F to 122 °F)
• • Operating Humidity: 10% to 90% RH (non-condensing)
• • Surge Protection: ±6 kV for service ports (common mode); ±6 kV for power connector (common and differential mode)
• Physical Characteristics
• • Casing Material: Metal casing with fixed cooling fans (Smart Speed Control)
• • Dimensions (W × D × H): 440 mm × 300.6 mm × 44 mm (17.32 in. × 11.83 in. × 1.73 in.)
• • Mounting: Standard 19-inch rack-mount (1U) or desktop installation
• Management & Software Features
• • Management Platforms: Ruijie Cloud (Web/App), on-premises eWeb (HTTP/HTTPS), Reyee App, CLI (console/SSH), and SNMP v1/v2c/v3
• • Key Features: IP camera recognition, VLAN (802.1Q and voice VLAN), LACP, RSTP/MSTP, ERPS, IGMP/MLD snooping, QoS, sFlow, and PoE scheduling/watchdog
• • Warranty: 5-year warranty
