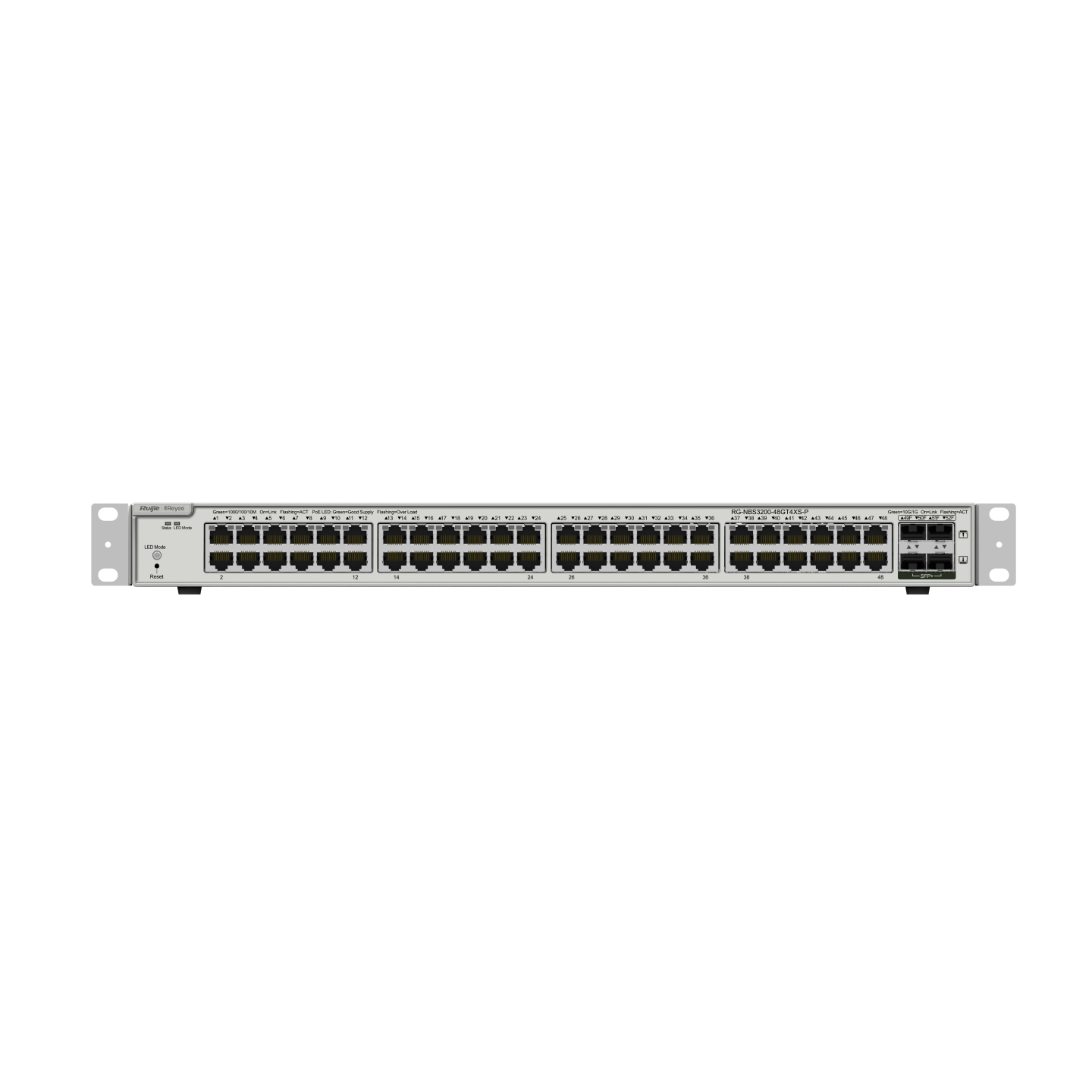

Ruijie Reyee RG-NBS3200-48GT4XS-P

Features

• Key Specifications
• • Product Type: Gigabit Layer 2+ Cloud-Managed PoE Switch
• • Downlink Ports: 48 × 10/100/1000BASE-T PoE/PoE+ ports
• • Uplink Ports: 4 × 10GE SFP+ optical slots
• • PoE Budget: 370W total (supporting IEEE 802.3af/at, up to 30W per port)
• • Switching Capacity: 176 Gbps
• • Packet Forwarding Rate: 130.95 Mpps (up to 132 Mpps in newer hardware revisions)
• • Packet Buffer: 16 Mbit
• • MAC Address Table: 16,000 entries
• • Maximum VLANs: 4,094
• • Memory / Flash: 512MB RAM, 256MB Flash
• • Cooling: Built-in fan cooling with left/right-to-rear forced airflow
• • Surge Protection: ±6 kV common mode for service ports; ±6 kV common and differential mode for the power connector
• Power & Environment
• • Power Input: Rated 100V AC to 240V AC, 50/60 Hz (Fixed internal power supply)
• • Power Consumption: Max 46W (with no PoE load) | Max 450W (fully loaded with 370W PoE budget drawn)
• • Operating Temperature: 0°C to 50°C (32°F to 122°F)
• • Operating Altitude: –500 m to +5,000 m (–1,640 ft to +16,404 ft)
• Physical Dimensions & Design
• • Chassis: Standard 19-inch 1U rack-mountable structural steel casing
• • Dimensions (W x D x H): 440 mm × 357.6 mm × 43.6 mm (Note: The V2 chassis revision reduces the depth profile slightly to roughly 300.6 mm)
• • Weight: ~5.4 kg (with packaging)
• • MTBF (Mean Time Between Failures): > 200,000 hours (up to 400,000 hours structural lifespan)
• Management & Software Features
• • Cloud Control: Unified, lifetime free remote setup, configuration, and monitoring via the Ruijie Cloud web platform and Reyee Mobile App.
• • Layer 2+ Capabilities: Supports basic Layer 3 static routing protocols alongside Management Interface VLAN (SVI) for segmented internal network isolation.
• • Network & Security Policies: Built-in CPU Protect Policy (CPP), Access Control Lists (ACLs), DHCP Snooping, Link Aggregation Control Protocol (LACP), and RLDP loop prevention.
• • Surveillance Optimization: Built-in IP Camera Recognition to cleanly partition streaming media topology alongside a hardware PoE Watchdog which automatically restarts stalled cameras.
• • LED Toggle Modes: Front-panel physical state button toggles the individual interface indicators between baseline Link/Activity tracking and visual PoE power delivery verification.
