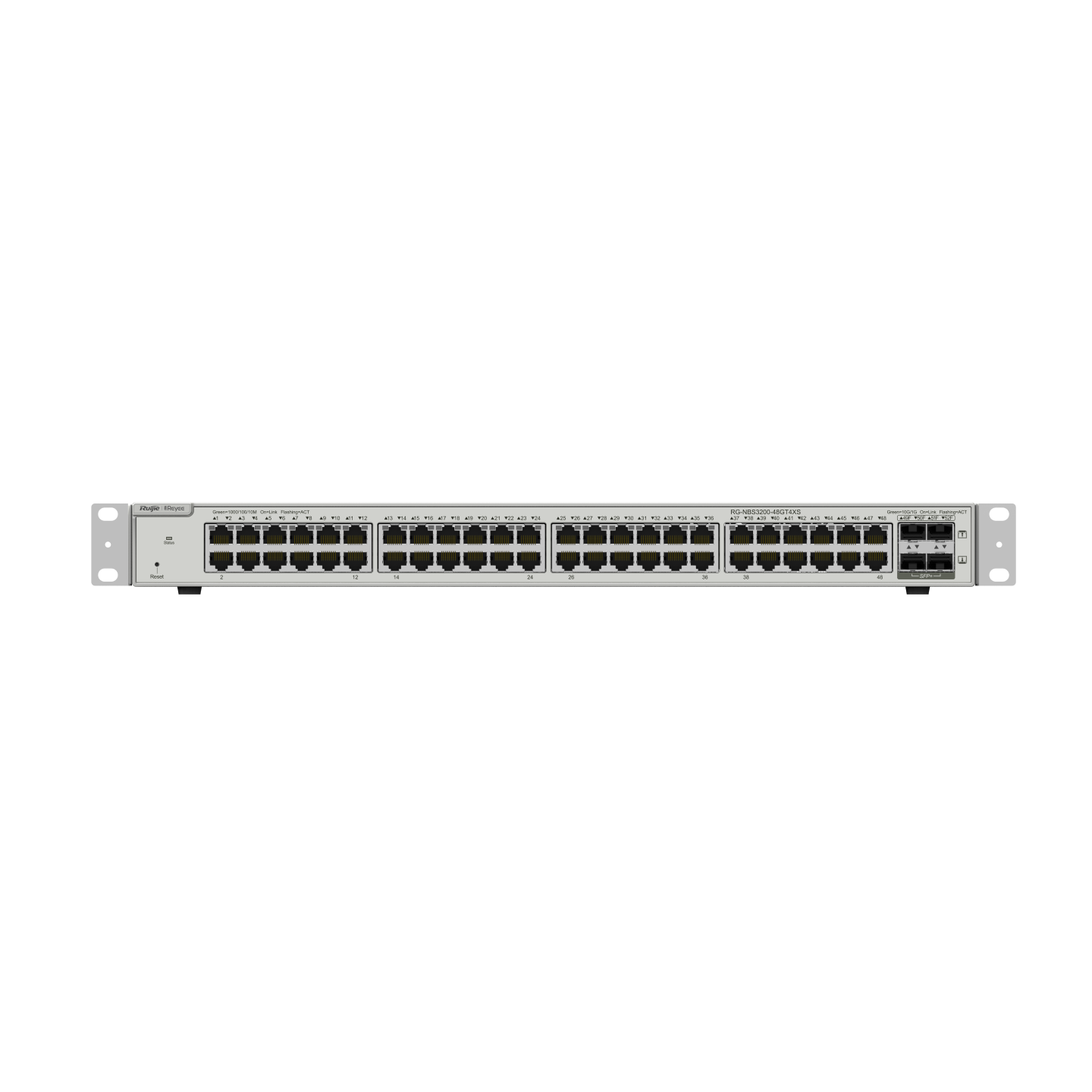

Ruijie Reyee RG-NBS3200-48GT4XS

Features

• Key Specifications
• • Product Type: Gigabit Layer 2+ Cloud-Managed Switch (Non-PoE)
• • Downlink Ports: 48 × 10/100/1000BASE-T RJ45 ports
• • Uplink Ports: 4 × 10GE SFP+ optical slots
• • PoE Capabilities: Non-PoE (For power delivery, check out the -P variant)
• • Switching Capacity: 176 Gbps
• • Packet Forwarding Rate: 130.95 Mpps (up to 132 Mpps)
• • Packet Buffer: 16 Mbit
• • MAC Address Table: 16,000 entries
• • Maximum VLANs: 4,094
• • Cooling: 2 × built-in fixed cooling fans (side-to-rear forced air cooling)
• • Surge Protection: ±6 kV common mode for service ports; ±6 kV common and differential mode for the power connector
• Power & Environment
• • Power Input: Rated 100V AC to 240V AC, 50/60 Hz (Fixed internal power supply)
• • Power Consumption: Max ≤ 46W
• • Operating Temperature: 0°C to 50°C (32°F to 122°F)
• • Operating Humidity: 10% to 90% RH (non-condensing)
• • Operating Altitude: –500 m to +5,000 m (–1,640 ft to +16,404 ft)
• Physical Dimensions & Design
• • Chassis: Standard 19-inch 1U rack-mountable structural steel casing
• • Dimensions (W x D x H): 440 mm × 267.5 mm × 43.6 mm
• • Weight: 3.6 kg (7.94 lbs)
• • MTBF (Mean Time Between Failures): 400,000 hours
• Management & Software Features
• • Cloud Control: Unified, lifetime free remote configuration and monitoring via the Ruijie Cloud web platform and Reyee Mobile App.
• • Layer 2+ Capabilities: Supports Layer 3 static routing (IPv4/IPv6) for basic internal network isolation and virtual interface handling (SVI).
• • Network Features: Link Aggregation Control Protocol (LACP), RLDP loop prevention, Voice VLAN, IGMP Snooping, DHCP Snooping, and CPU Protect Policy (CPP).
• • Smart Surveillance Mapping: Includes automatic IP Camera Recognition, allowing the switch to identify CCTV streams and populate your topology view automatically within the cloud dashboard.
