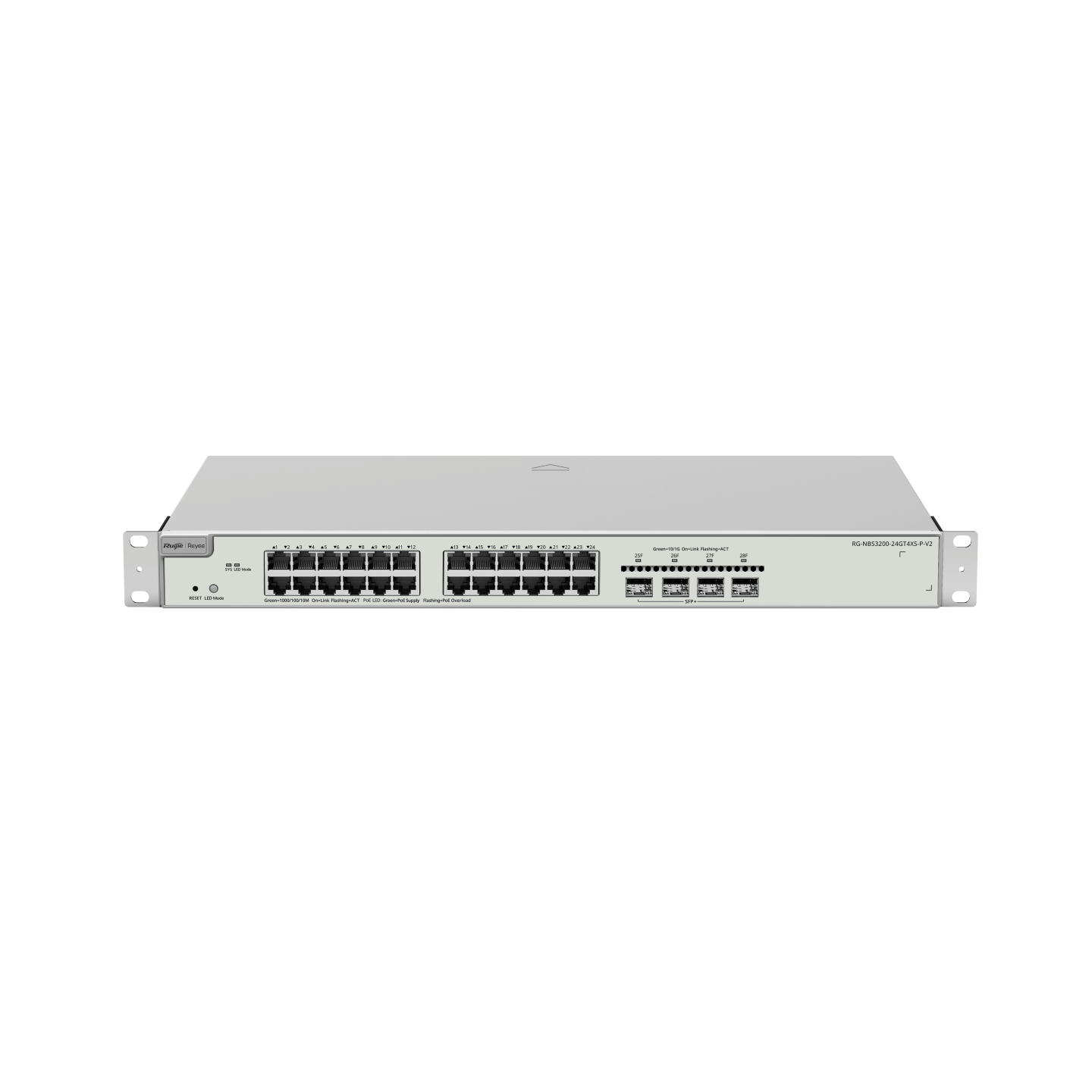

Ruijie Reyee RG-NBS3200-24GT4XS-P-V2

Features

• Key Specifications
• • Product Type: Gigabit Layer 2+ Cloud-Managed PoE Switch
• • Downlink Ports: 24 × 10/100/1000BASE-T PoE/PoE+ ports (IEEE 802.3af/at)
• • Uplink Ports: 4 × 10GE SFP+ optical slots
• • PoE Budget: 370W total (up to 30W per port)
• • Switching Capacity: 128 Gbps
• • Packet Forwarding Rate: 96 Mpps
• • MAC Address Table: 16,000 entries
• • Maximum VLANs: 4,094
• • Memory / Flash: 512MB RAM, 256MB Flash
• • Cooling: 2 × fixed smart fans with variable speed (PWM) and left-to-right airflow
• • Acoustics/Noise: 32 dB at 23°C (average load) up to 49 dB (full load)
• • Surge Protection: ±6 kV common mode on service ports; ±6 kV common and differential mode on power
• Power & Environment
• • Power Input: Rated 100V AC to 240V AC, 50/60 Hz, Max 6A
• • Power Consumption: Max 30W (no PoE load) | Max 430W (full 370W PoE load)
• • Operating Temperature: 0°C to 50°C (32°F to 122°F)
• • Operating Altitude: –500 m to +5,000 m (–1,640 ft to +16,404 ft)
• Physical Dimensions & Design
• • Chassis: Standard 19-inch 1U rack-mountable metal casing
• • Dimensions (W x D x H): 440 mm × 222.6 mm × 44 mm (Note: Chassis depth is optimized down to 215 mm excluding front panel controls)
• • Weight: 2.88 kg (6.35 lbs) without packaging
• • MTBF (Mean Time Between Failures): 400,000 hours
• Management & Software Features
• • Cloud Control: Lifetime free remote management via the Ruijie Cloud web portal and Reyee Mobile App.
• • Layer 2+ Features: Supports Management Interface VLAN (SVI) alongside baseline static routing capabilities (IPv4/IPv6) for light localized internal network segmentation.
• • Security & Performance: DHCP Snooping, IP Source Guard, Port Isolation, Link Aggregation (LACP up to 8 groups / 8 ports per group), and RLDP loop prevention.
• • CCTV Enhancements: Intelligent IP Camera Recognition for targeted stream prioritization and an automated hardware PoE Watchdog to automatically cycle frozen cameras.
• • LED Toggle: Front panel physical mode button to switch status LEDs between Link/Activity state and live PoE output monitoring.
