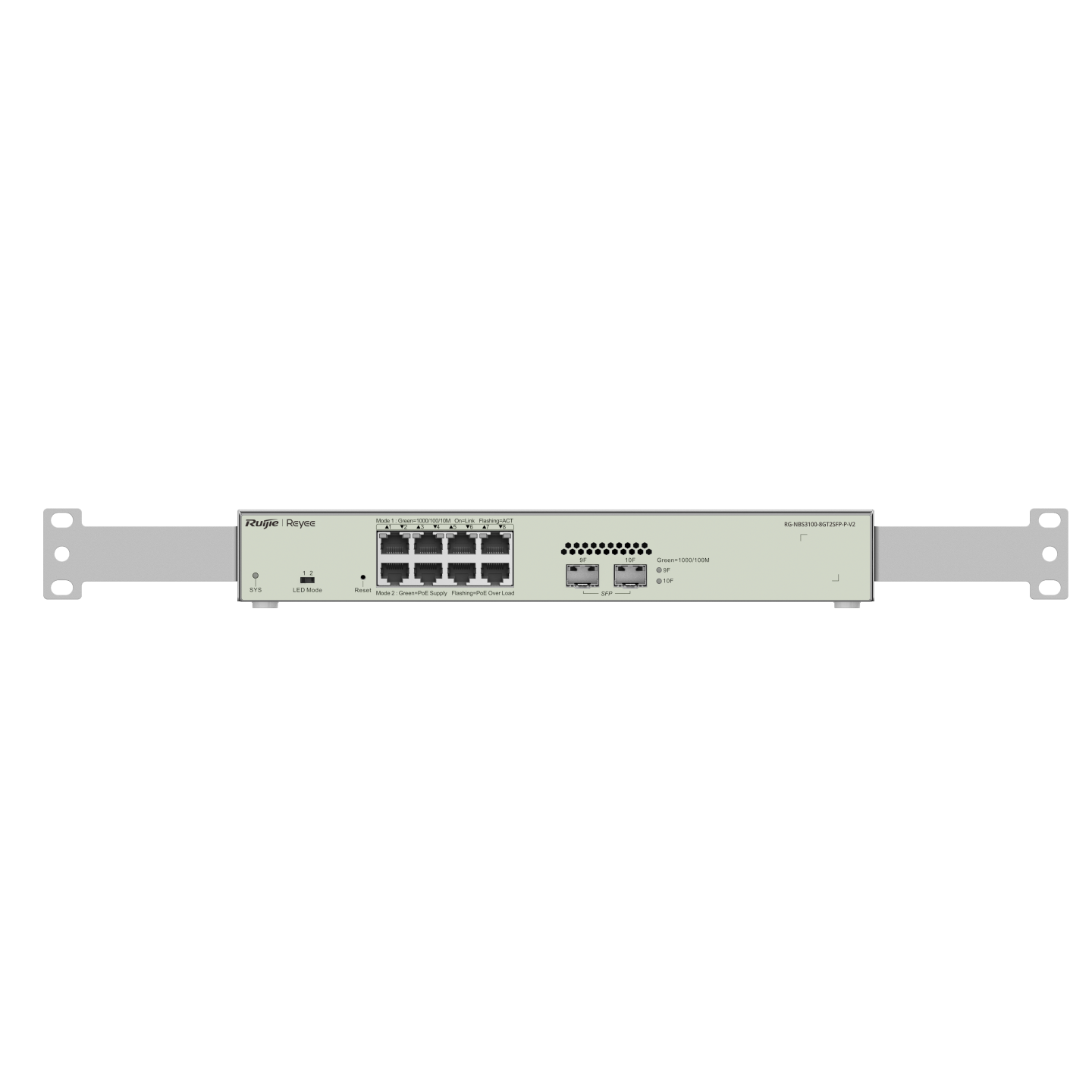

Ruijie Reyee RG-NBS3100-8GT2SFP-P-V2

Features

• Key Specifications
• • Product Type: Gigabit Layer 2 Cloud-Managed PoE Switch
• • Downlink Ports: 8 × 10/100/1000BASE-T PoE/PoE+ ports (supporting IEEE 802.3af/at, up to 30W per port)
• • Uplink Ports: 2 × 1GE SFP optical slots
• • PoE Budget: 125W total
• • Switching Capacity: 20 Gbps
• • Packet Forwarding Rate: 14.88 Mpps
• • MAC Address Table: 8,000 entries
• • Maximum VLANs: 4,094
• • Memory / Flash: 256MB RAM, 16MB Flash
• • Cooling: Fanless / Natural cooling
• • Surge Protection: ±6 kV common mode on service ports; ±6 kV common and differential mode on the power connector
• Power & Environment
• • Power Input: 100–240V AC, 50/60Hz (Internal / fixed power supply)
• • Power Consumption: ≤ 11W (with no PoE load) | Max 145W (with full PoE load)
• • Operating Temperature: 0°C to 50°C (32°F to 122°F)
• • Operating Altitude: –500 m to +5,000 m (–1,640 ft to +16,404 ft)
• Physical Dimensions & Design
• • Chassis: Desktop or 1U rack-mountable lighter-weight metal case (V2 generation update)
• • Dimensions (W x D x H): 300 mm × 205 mm × 44 mm
• • Weight: 1.80 kg (3.97 lbs)
• • MTBF (Mean Time Between Failures): 400,000 hours
• Management & Software Features
• • Cloud Management: Lifetime free cloud management accessible via the Ruijie Cloud web platform and Reyee Mobile App.
• • Key Functions: IP Camera auto-recognition, PoE Watchdog (automatically power-cycles frozen cameras), 802.1Q VLAN mapping, LACP Link Aggregation, and IGMP Snooping.
• • Physical DIP Switch: Front panel toggle switch to alternate the LED modes between general link status/traffic monitoring and active PoE power allocation.
