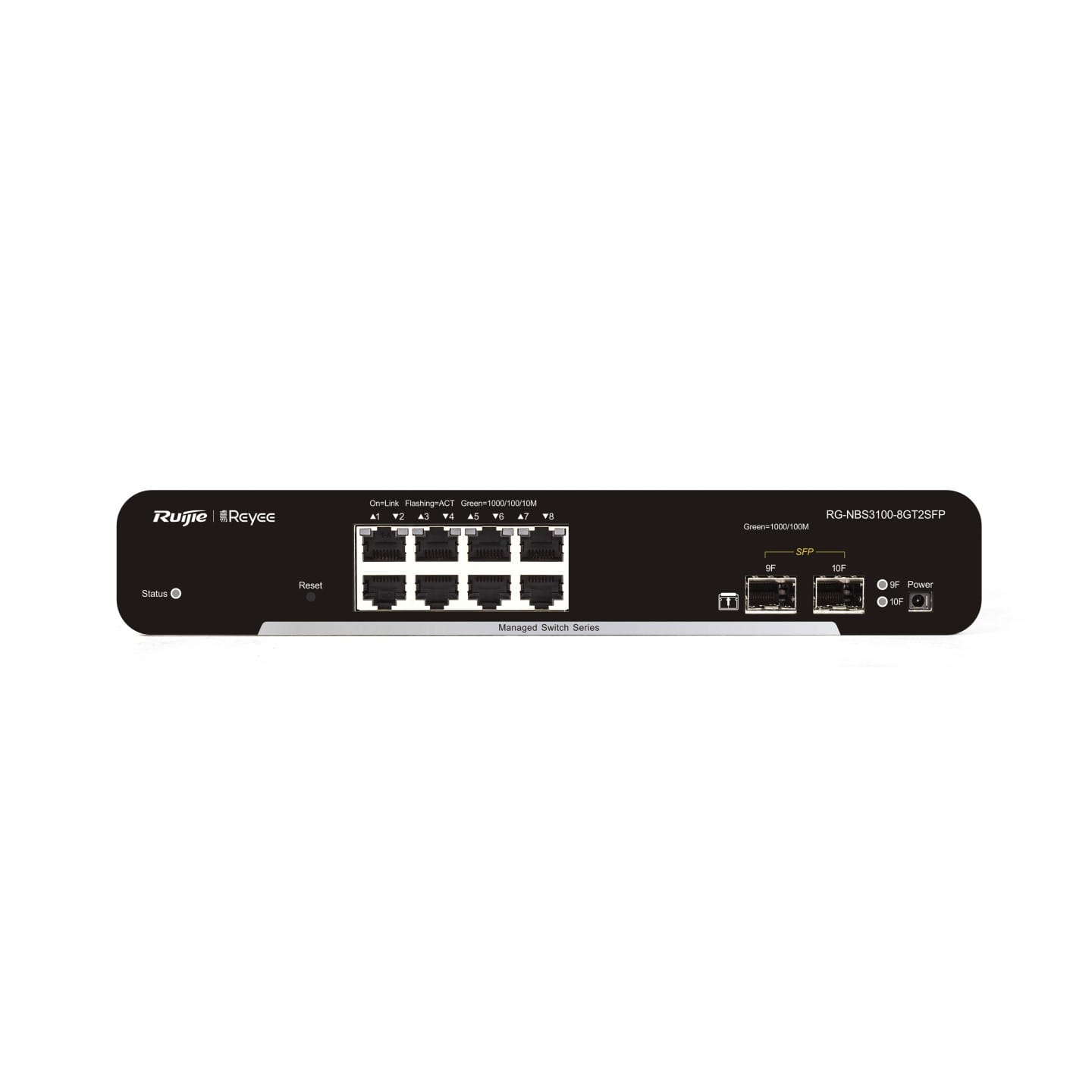

Ruijie Reyee RG-NBS3100-8GT2SFP

Features

• Key Specifications
• • Product Type: Gigabit Layer 2 Cloud-Managed Non-PoE Switch
• • Downlink Ports: 8 × 10/100/1000BASE-T RJ45 ports
• • Uplink Ports: 2 × 1GE SFP optical slots
• • PoE Capabilities: Non-PoE
• • Switching Capacity: 20 Gbps
• • Packet Forwarding Rate: 14.88 Mpps
• • Packet Buffer: 4.1 Mbit
• • MAC Address Table: 8,000 entries
• • Maximum VLANs: 4,094
• • Cooling: Fanless silent design (natural convection cooling)
• • Surge Protection: 6 kV on service ports
• Power & Environment
• • Power Input: 100–240V AC, 50/60Hz
• • Operating Temperature: 0°C to 50°C (32°F to 122°F)
• • Operating Altitude: -500 to 5,000 meters (-1,640 to 16,404 ft)
• Physical Dimensions & Design
• • Chassis: Desktop / rack-mountable steel case
• • Dimensions (W x D x H): 260 mm × 120 mm × 43.6 mm
• • MTBF (Mean Time Between Failures): 400,000 hours
• Management & Software Features
• • Cloud Management: Unified lifetime free remote management via the Ruijie Cloud web portal and Reyee Mobile App.
• • Core Functions: IEEE 802.1Q VLAN mapping, Link Aggregation Control Protocol (LACP up to 8 groups), IGMP Snooping, Port Isolation, and loop protection via RLDP.
