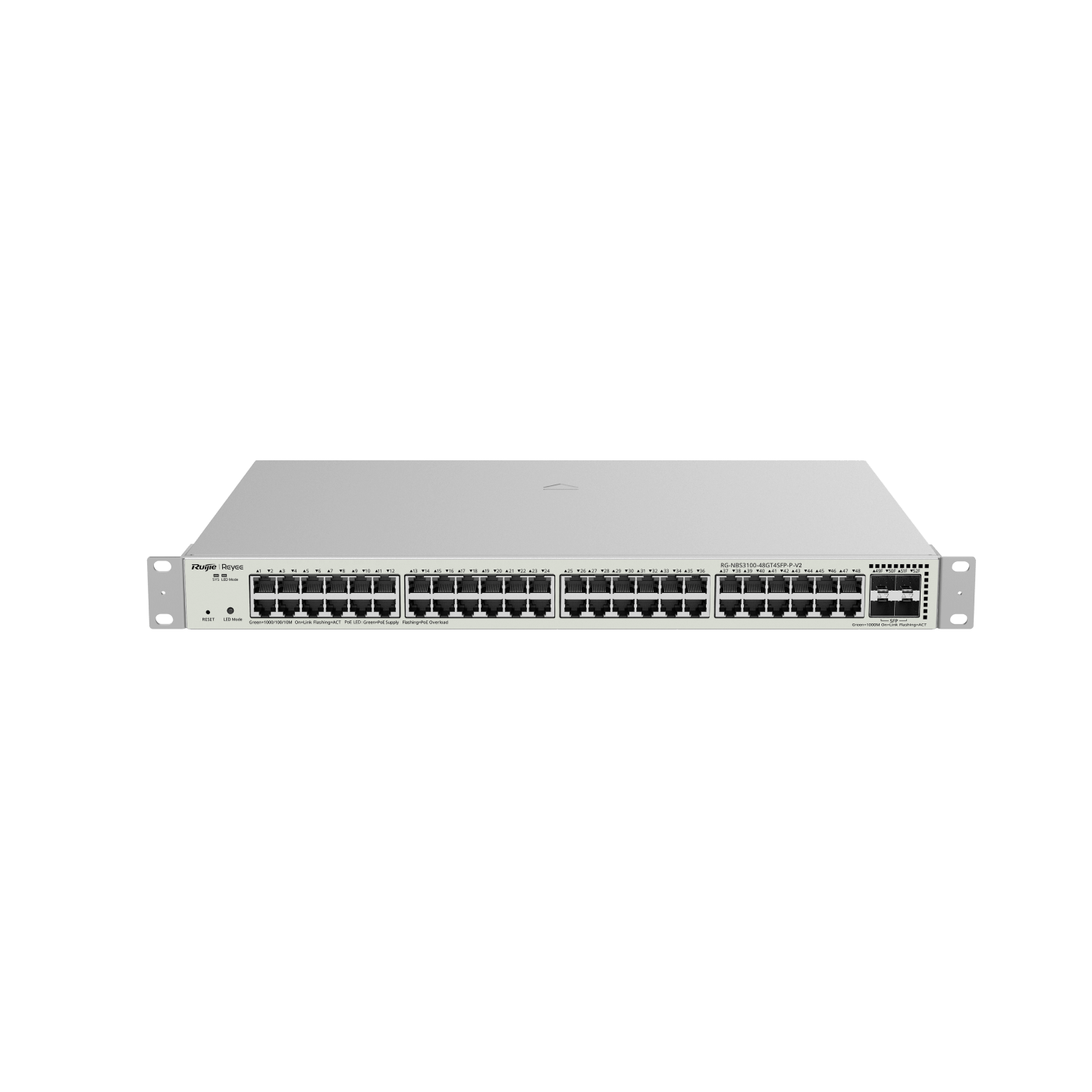

Ruijie Reyee RG-NBS3100-48GT4SFP-P-V2

Features

• Key Specifications
• • Product Type: Gigabit Layer 2 Cloud-Managed PoE Switch
• • Downlink Ports: 48 × 10/100/1000BASE-T PoE/PoE+ ports (supporting IEEE 802.3af/at, up to 30W per port)
• • Uplink Ports: 4 × 1GE SFP optical slots
• • PoE Budget: 370W total
• • Switching Capacity: 104 Gbps
• • Packet Forwarding Rate: 77.38 Mpps
• • MAC Address Table: 16,000 entries
• • Maximum VLANs: 4,094
• • Memory / Flash: 512MB RAM, 256MB Flash
• • Cooling: Built-in fans with left-to-right airflow (featuring PWM fan control for quieter operation in V2)
• • Surge Protection: ±6 kV for common mode on service ports; ±6 kV for common and differential mode on power connectors
• Power & Environment
• • Power Input: 100–240V AC (Max power consumption up to 450W)
• • Operating Temperature: 0°C to 50°C (32°F to 122°F)
• • Operating Humidity: 10% to 90% (non-condensing)
• • Operating Altitude: Up to 5,000 meters (16,404 ft)
• Physical Dimensions & Design
• • Chassis: 19-inch rack-mountable steel case (metal casing)
• • Dimensions (W x D x H): 440 mm × 350 mm × 43.6 mm
• • Weight (with package): 5.4 kg
• • MTBF (Mean Time Between Failures): 400,000 hours
• Management & Software Features
• • Cloud Management: Lifetime free cloud management via Ruijie Cloud (web portal and mobile app)
• • Key Functions: IP Camera recognition for CCTV networks, VLANs, LACP link aggregation, IGMP snooping, and various network security policies
