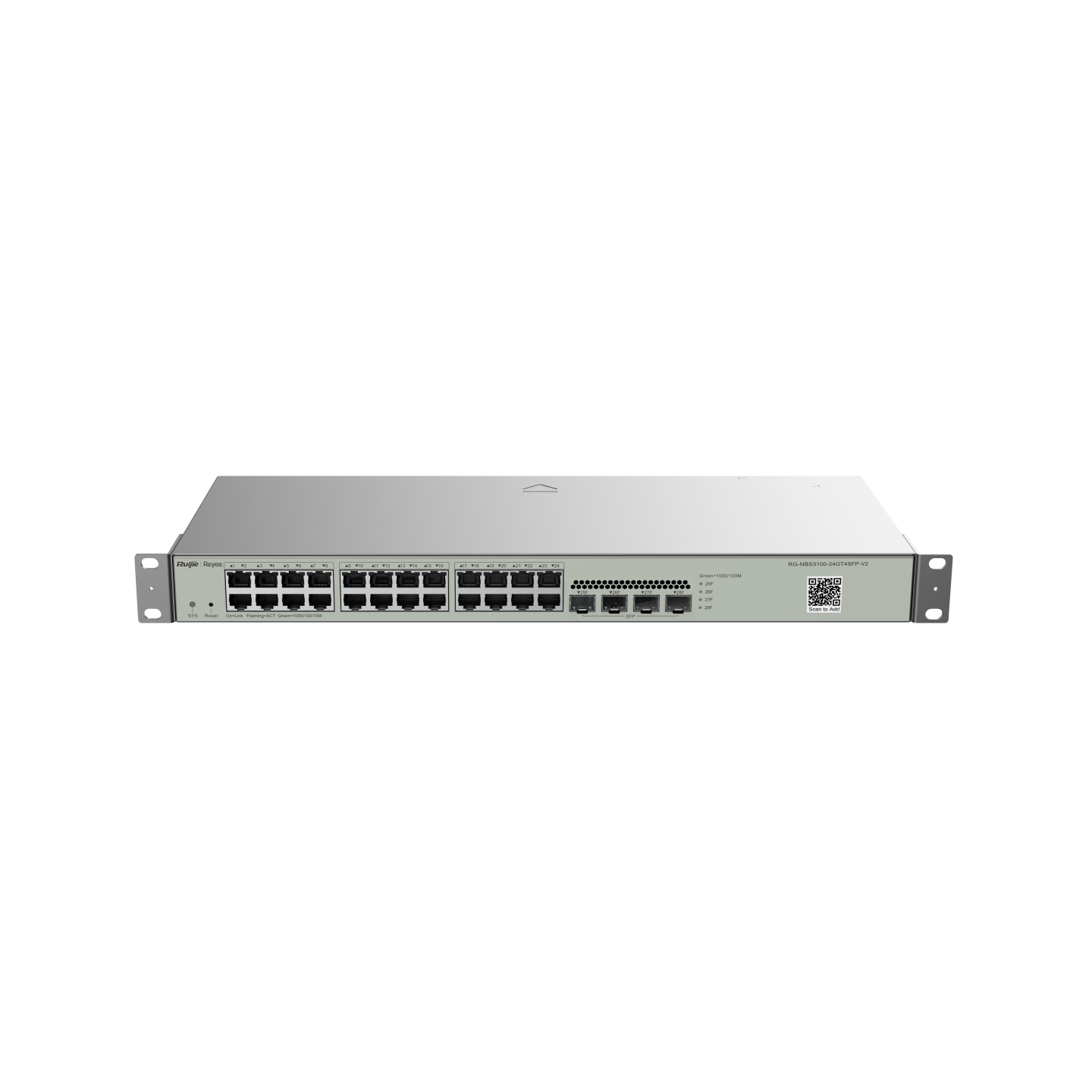

Ruijie Reyee RG-NBS3100-24GT4SFP-V2

Features

• Key Specifications
• • Switch Type: Layer 2 Smart Cloud-Managed Switch (Non-PoE)
• • Total Commercial Ports: 28 ports
• • Ethernet Layout: 24 x 10/100/1000BASE-T Gigabit RJ45 copper ports
• • Fiber Uplink Slots: 4 x independent 1GE SFP optical ports (no shared combo interfaces)
• • Switching Capacity: 56 Gbps
• • Packet Forwarding Rate: 41.66 Mpps
• • MAC Address Table: 8,000 entries
• • Memory Configuration: 256 MB RAM / 16 MB Flash memory
• Network Management & Intelligence
• • Management Integration: Free lifetime remote cloud orchestration via the Ruijie Cloud Web Portal and Reyee mobile app. Supports Web GUI, SNMP, and local command access.
• • Self-Organizing Network (SON): Unlocks zero-touch provisioning and fast visual discovery for effortless multi-device onboarding.
• • Layer 2 Optimization:
• • Supports up to 4,094 simultaneous VLANs
• • 802.1Q tagging and automatic Voice VLAN traffic prioritization
• • IGMP Snooping (v1/v2/v3) for optimized IPTV and video data flow
• • Surveillance Integration: Features native IP Camera Auto-Recognition to automatically parse and logically present connected network cameras on your cloud topology map.
• • Security Framework: Armed with Access Control Lists (ACL), DHCP Snooping, Broadcast Storm suppression, and 802.1X client authentication.
• • Redundancy Protocols: Standard STP, RSTP, MSTP, and ERPS (Ethernet Ring Protection Switching) for loop-free network mapping and self-healing ring connections.
• Physical, Electrical & Reliability Details
• • Cooling System: Completely fanless design utilizing natural cooling. Offers silent operation (0 dB), eliminating noise in open office environments and minimizing dust intake.
• • Chassis Layout: Standard 19-inch 1U steel rackmount casing.
• • Dimensions & Weight: 440 mm x 165 mm x 44 mm; Net Weight: 1.88 kg. (Note: At a depth of only 165 mm, the V2 is explicitly tailored to slide comfortably into ultra-shallow or wall-mounted media boxes).
• • Power Architecture: Internal fixed power supply plate.
• • Voltage Input: 100V AC to 240V AC, 50/60 Hz (Tolerance limits: 90V to 264V AC)
• • Power Consumption: Maximum energy draw is limited to ≤ 21W under full transmission capacity.
• • Surge Shielding: Heavy-duty hardware protection featuring ±6 kV common mode immunity on copper network interface lines.
• • Operating Climate: Certified to run reliably across a temperature range of 0°C to +50°C (32°F to 122°F).
• • lifespan Reliability (MTBF): Industrial rating exceeding 400,000 operational hours.
• • Warranty Status: Protected by a 5-year manufacturer's hardware warranty.
