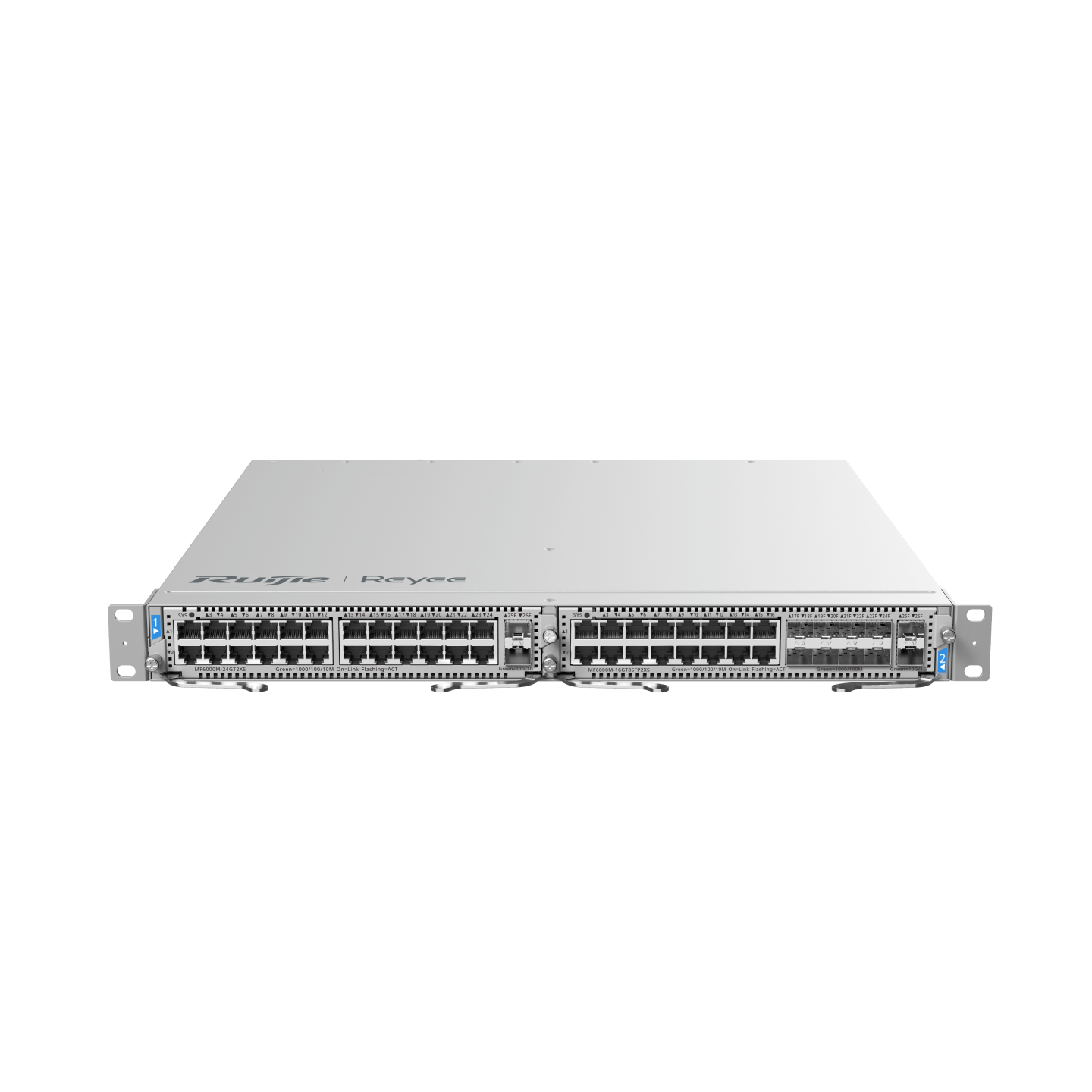

Ruijie Reyee RG-NBF6002M

Specifications

• Power Slots

2 x Hot-swappable power module slots supporting 1+1 hardware redundancy (uses RG-PA150I-FS modules)

• PON Management

Features Static and Dynamic Bandwidth Allocation (SBA/DBA) alongside automatic discovery and connection of down-line ONUs

• Forwarding Rate

132 Mpps

• Line Card Slots

2 x expansion slots that accommodate sub-cards (such as the MF6000M-16FS8GT2XS or MF6000M-24GT2XS)

• Surge Isolation

Up to ±6 kV protection baseline across all service network ports and internal power lines

• Memory Resources

1 GB RAM and 256 MB Flash memory

• Routing Profiles

Full Layer 3 support including OSPF, RIP, and Static Routing

• Downstream Access

Manages up to 320 downstream e-Lighten APs or access switches (maximum 32 ONUs per individual PON port)

• Switching Capacity

216 Gbps (196 Gbps line-card basic capacity)

• Surveillance Scaling

Optimized to support up to 800 x 2MP (H.265), 400 x 4MP, or 200 x 8MP surveillance cameras

• Virtualization (VCS)

Supports Virtual Cluster Switch stacking for multi-chassis high availability

• Telemetry Diagnostics

Real-time OLT and ONU optical parameter readouts (Tx/Rx power levels, operating voltage, and transceiver temperatures)

• Cooling Infrastructure

3 x fixed system fans utilizing energy-efficient front-to-rear directed airflow

• Dimensions (W x D x H)

442 mm x 460 mm x 44 mm (17.40 in. x 18.11 in. x 1.73 in.) — 1U rack-mount form factor

• Maximum Combined Ports

Up to 48 x Gigabit RJ45 copper ports, 16 x e-Lighten SFP optical ports (for passive optical splitting), and 4 x 10G SFP+ uplink ports

• Security & Reliability

CPU Protection Policy (CPP), Network Foundation Protection Policy (NFPP), and free centralized monitoring via the Ruijie Cloud Web / App.

• Dedicated Out-of-Band Port

1 x 10/100/1000BASE-T MGMT interface port

• Operating Temperature Range

0°C to 50°C (32°F to 122°F)
