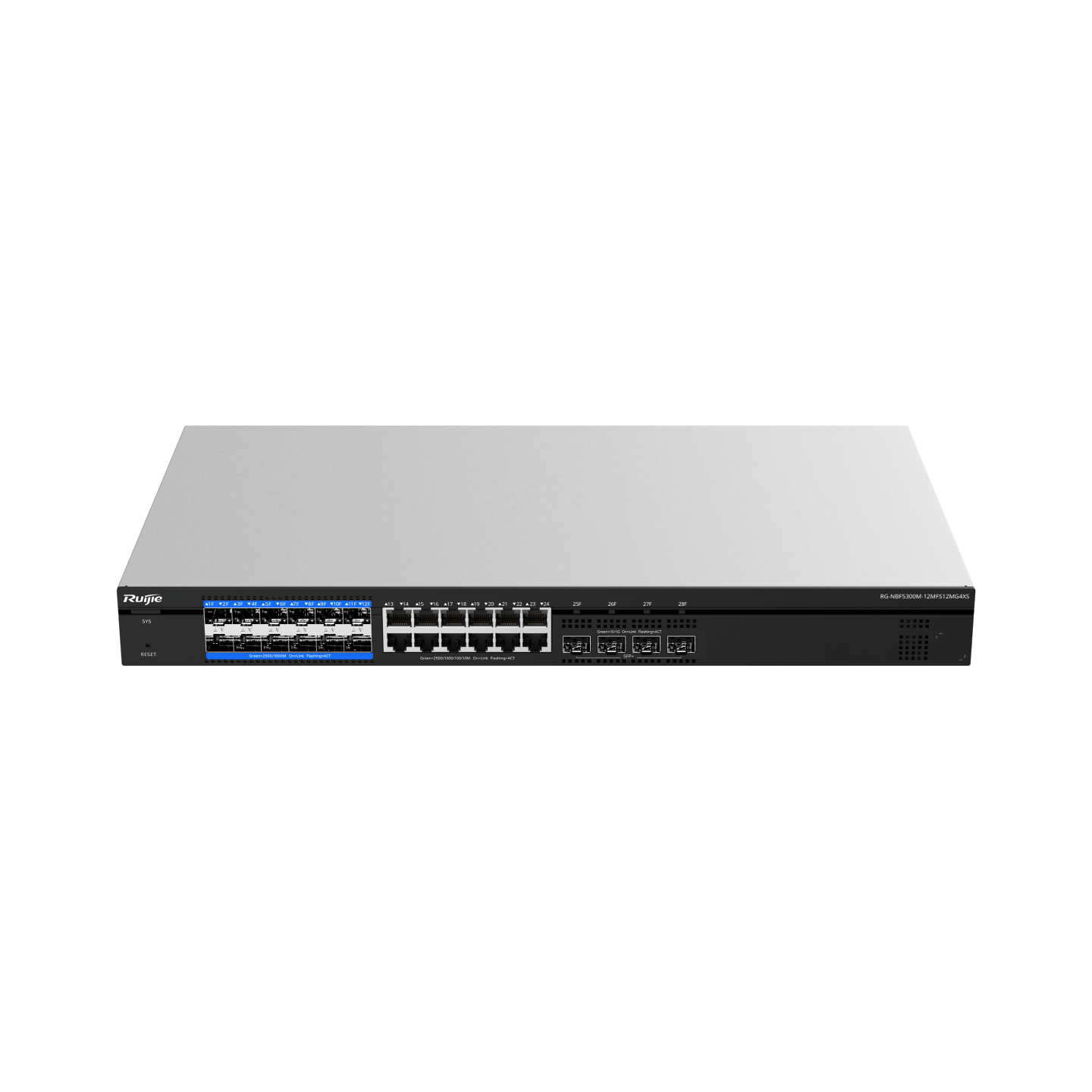

Ruijie Reyee RG-NBF5300M-12MFS12MG4XS
Specifications
- • Warranty
- 5 years
- • Telemetry
- Real-time OLT/ONU tracking for optics temperature, voltage, and Tx/Rx levels
- • Net Weight
- 3.58 kg (7.89 lbs)
- • Power Supply
- AC 100–240V fixed internal power module
- • MAC Table Size
- 16K
- • Forwarding Rate
- 148.8 Mpps
- • 10G Uplink Ports
- 4 x 10G SFP+ optical uplink ports
- • Layer 2 Features
- Up to 4,094 VLANs, Voice VLAN, Link Aggregation, IGMP Snooping (v1/v2/v3), Port Mirroring, and STP/RSTP
- • Surge Protection
- 6 kV on service ports and power supplies
- • System Resources
- 1 GB RAM and 256 MB Flash memory
- • Power Consumption
- Max 70 W
- • Routing Protocols
- Support for OSPF, RIP, and Static Routing
- • Network Protection
- CPU Protection Policy, Network Foundation Protection Policy (NFPP), and IPv6 ACLs
- • Switching Capacity
- 240 Gbps
- • Virtual Interfaces
- Up to 32 Switch Virtual Interfaces (SVI)
- • Management Platform
- Free configuration and AI troubleshooting via Ruijie Cloud Web / App, alongside SNMP and Web UI
- • Maximum ONU Support
- Up to 256 total ONUs per device (maximum of 32 ONUs per individual PON port)
- • PON Functionalities
- Auto-negotiation of transceivers, Layer 2 isolation for ONUs on the same PON port, Static/Dynamic Bandwidth Allocation (SBA/DBA), and automatic connection of ONUs
- • Operating Temperature
- 0°C to 50°C (32°F to 122°F)
- • Dimensions (W x D x H)
- 440 mm x 262.5 mm x 43.6 mm (17.32 in. x 10.33 in. x 1.72 in.) — Standard 1U Rackmount
- • Network Virtualization
- Virtual Cluster Switch (VCS) redundancy support
- • Recommended Client Limit
- Up to 1,200 concurrent user clients
- • Multi-Gigabit Optical Ports
- 12 x 2.5G e-Lighten SC ports (PON optical ports used for passive splitting or standard SFP connections)
- • Multi-Gigabit Ethernet Ports
- 12 x 10/100/1000/2500BASE-T RJ45 copper ports
