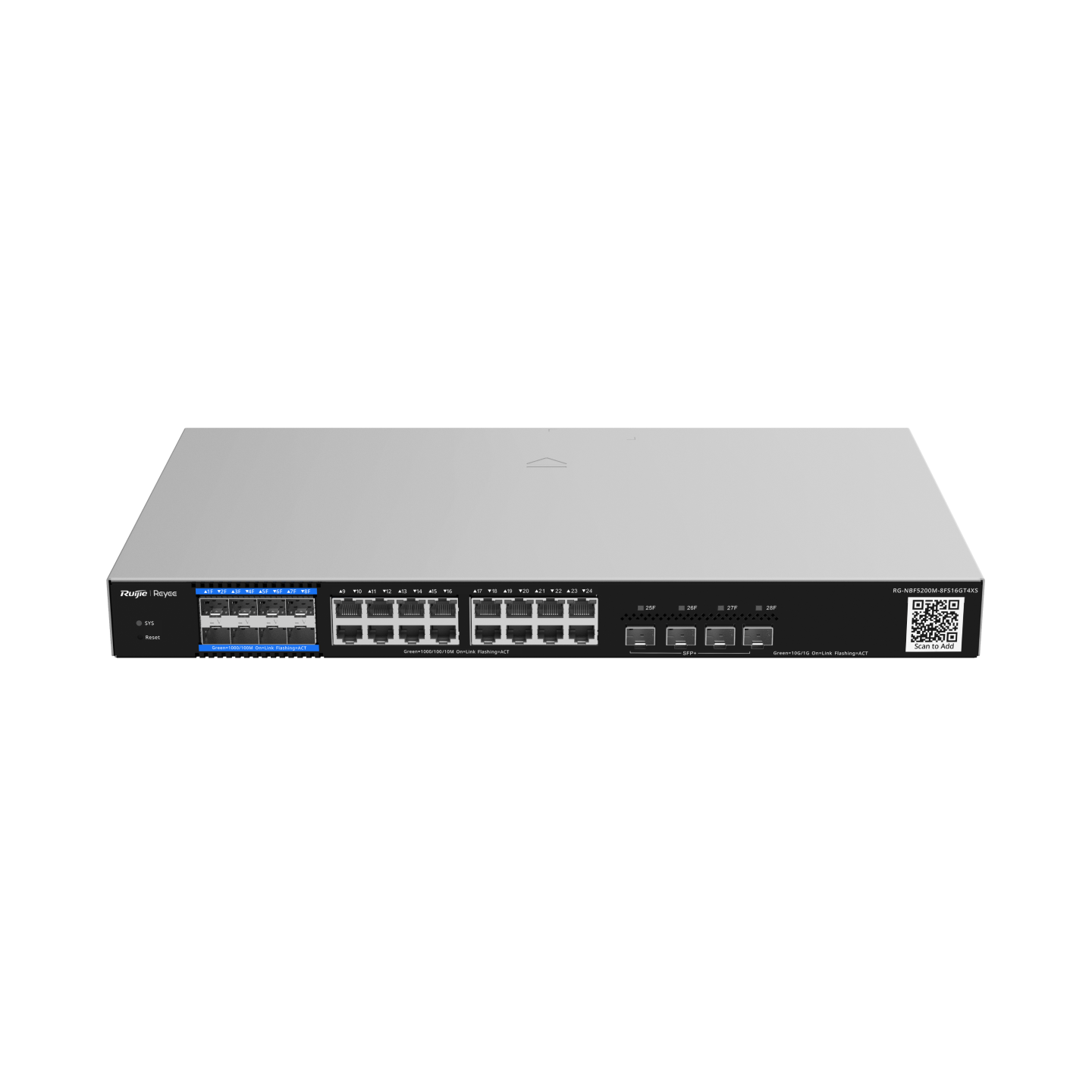

Ruijie Reyee RG-NBF5200M-8FS16GT4XS

Specifications

• Power Supply

AC 100–240V internal fixed power module

• MAC Table Size

16K

• Forwarding Rate

95.232 Mpps

• 10G Uplink Ports

4 x 10G SFP+ optical uplink ports

• 1G Optical Ports

8 x 1G e-Lighten Optical (PON/SFP multiplexed) ports

• Surge Protection

6 kV on network ports and power supplies

• 1G Ethernet Ports

16 x 10/100/1000BASE-T RJ45 copper ports

• Power Consumption

Max 41.8 W to 60 W

• Routing Protocols

Support for Static Routing, OSPF, and RIP

• Switching Capacity

128 Gbps (up to 216 Gbps burst capability depending on configuration)

• Virtual Interfaces

Up to 32 SVI (Switch Virtual Interfaces)

• Maximum ONU Support

Up to 256 ONUs connected via passive splitting networks

• Management Protocols

Free Cloud Management via the Ruijie Cloud Web / App, plus SNMP, Web, and CLI interfaces. Includes real-time Digital Optical Monitoring (DDM) for tracking downstream ONU optics.

• Operating Temperature

0°C to 50°C (32°F to 122°F)

• Dimensions (W x D x H)

440 mm x 260 mm x 43.6 mm (17.32 in. x 10.24 in. x 1.72 in.) — standard 1U Rackmount

• Network Virtualization

Virtual Cluster Switch (VCS) support up to 2 units

• Recommended Client Limit

1,200 concurrent clients

• Optical Transceiver Power

Transmitting power of 3dB to 7dB | Receiving sensitivity of –12dB to –32dB

• CCTV Camera Recommendations

Up to 400 x 2MP (H.265), 200 x 4MP, or 100 x 8MP cameras
