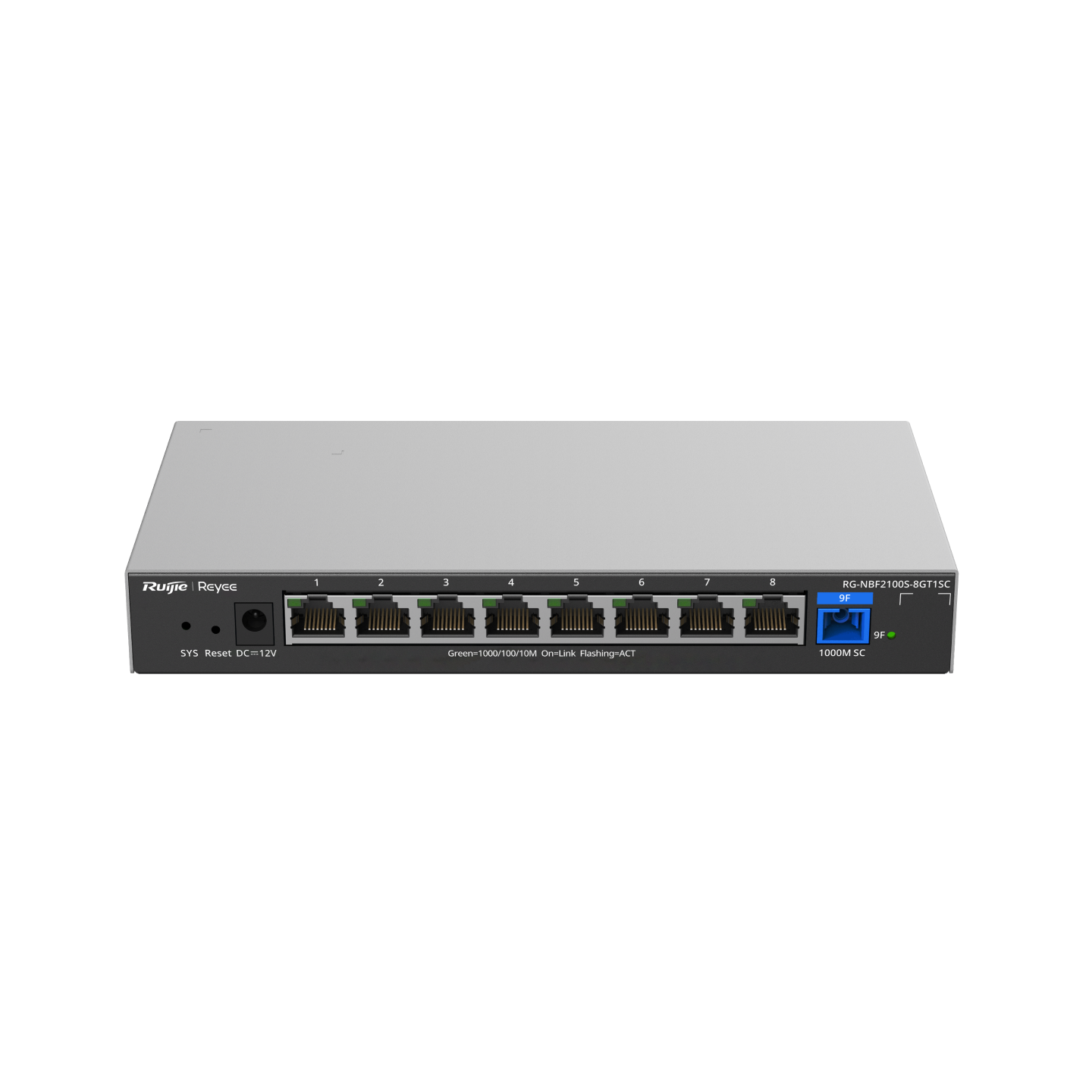

Ruijie Reyee RG-NBF2100S-8GT1SC-P
Specifications
- • Warranty
- 3 years
- • Management
- Cloud management via free Ruijie Cloud Web / App with 3-minute Self-Organizing Networking (SON)
- • Net Weight
- 0.5 kg (1.10 lbs.)
- • PoE Budget
- 120W max total output (up to 30W per port)
- • Flash Memory
- 8 MB
- • Installation
- Desktop, wall, or ceiling mounting
- • PON Features
- Static/dynamic bandwidth allocation (SBA/DBA), rate limiting for unknown unicast traffic, and automatic connection of ONUs.
- • Power Supply
- External DC adapter (included)
- • Ethernet Ports
- 8 x 10/100/1000BASE-T RJ45 ports with IEEE 802.3af/at PoE+ support
- • MAC Table Size
- 8K
- • Optical Uplink
- 1 x 1G SC optical port (PON uplink connecting directly to an optical splitter or OLT terminal)
- • Forwarding Rate
- 13.392 Mpps
- • CCTV Enhancement
- Supports remote camera rebooting via the cloud platform.
- • Layer 2 Features
- Support for up to 16 VLANs, port isolation, loop prevention, DHCP snooping, and port mirroring
- • Surge Protection
- 6 kV on network ports
- • Power Consumption
- ≤ 130 W (including maximum PoE delivery)
- • Switching Capacity
- 18 Gbps
- • BOSA Rx Sensitivity
- –8 dB to –28 dB
- • Operating Temperature
- 0°C to 40°C (32°F to 104°F)
- • Dimensions (W x D x H)
- 202 mm x 108 mm x 28 mm (7.95 in. x 4.25 in. x 1.10 in.)
- • BOSA Transmitting Power
- 0 dB to 3 dB
- • Maximum Bandwidth per ONU
- Downlink up to 997 Mbps | Uplink ≥900 Mbps
- • Digital Optical Monitoring (DDM)
- Real-time monitoring of transceiver parameters (Temperature, Voltage, Current, Rx/Tx Power)
