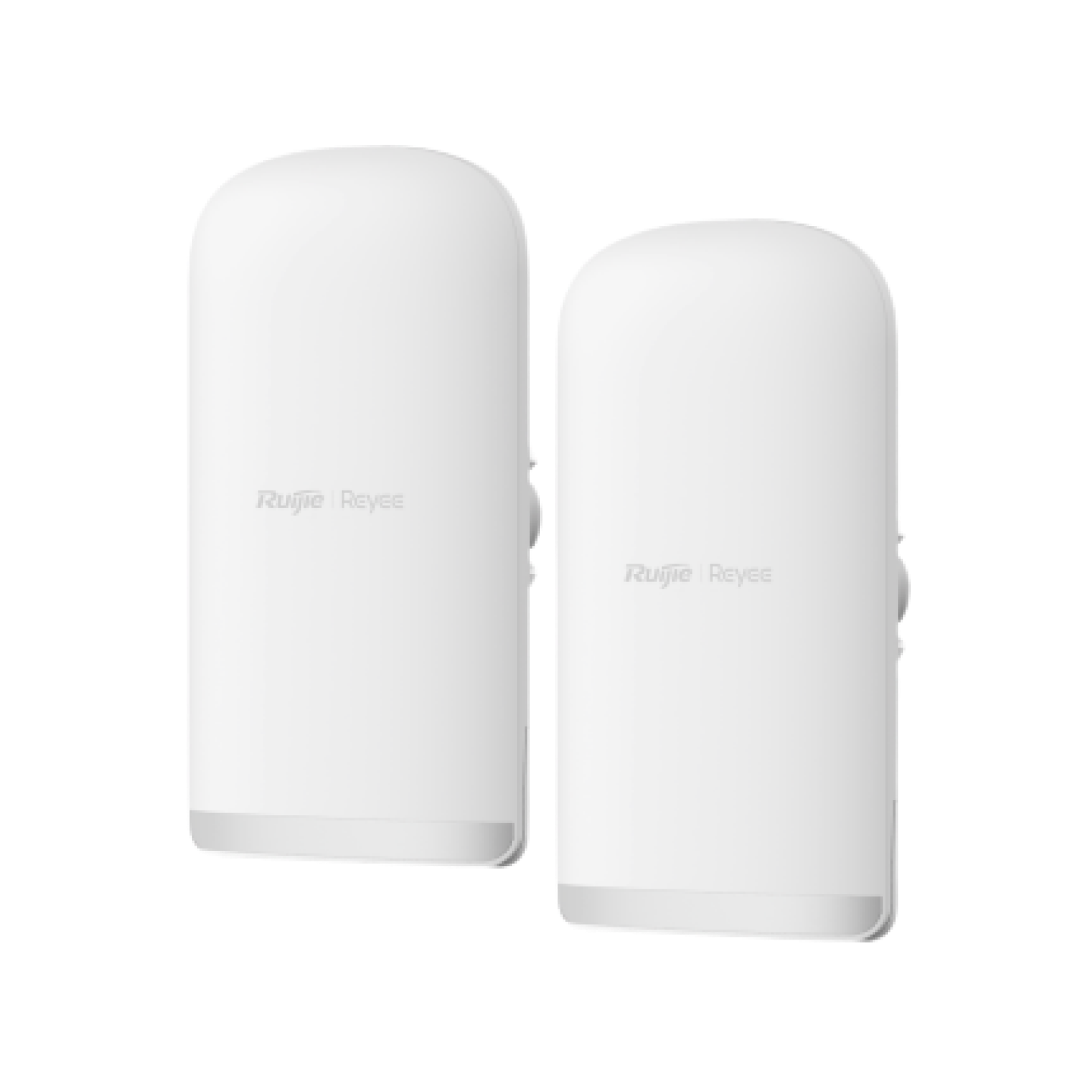

Ruijie Reyee RG-EST350G

Features

• Key Specifications
• • Operating Frequency Bands:
• • 5 GHz: 5.150 GHz to 5.850 GHz (Primary data link, up to 867 Mbps)
• • 2.4 GHz: 2.400 GHz to 2.483 GHz (Reserved strictly for engineering management, up to 300 Mbps)
• • MIMO Technology: 2x2 MU-MIMO
• • Antenna Parameters: Integrated high-gain 16 dBi directional antenna with a 31° horizontal and 14° vertical beamwidth
• • Recommended Link Distance: Up to 5 kilometers (3.11 miles) clear line-of-sight
• • Physical Interfaces (per unit):
• • 3 x 10/100/1000BASE-T Gigabit Ethernet Ports (LAN1 serves as the PoE input)
• • 1 x DC Power Barrel Jack
• • 1 x One-Touch Pairing / Reset Button
• • 7 x LED Status Indicators (Power, Link, and multi-stage Signal Strength alignment bars)
• • Max Power Consumption: ≤ 12 Watts
• • Flexible Triple-Power Input Options:
• • 12V / 1.2A DC local power
• • 24V / 0.6A Passive PoE
• • 48V Standard IEEE 802.3af/at PoE
• Physical & Environmental Durability
• • Weatherproof Rating: IP55 certified shell constructed from UV-resistant and V-0 flame-retardant industrial composites
• • Operating Temperature Range: –30°C to 65°C (–22°F to 149°F)
• • Operating Humidity: 5% to 95% RH (non-condensing)
• • Dimensions (per unit): 240 mm x 133 mm x 108 mm (excluding the mounting hardware)
• • Weight: 0.73 kg per unit
• Core Features
• • Zero-Touch PTP Assembly: Sold as a factory pre-paired kit. Once mounted and powered within line-of-sight, the units automatically build a secure, bridged link without requiring any on-site software setup.
• • One-Touch PTMP Expanding: Built-in hardware pairing controls make it easy to introduce extra endpoint bridge nodes back to a central base station within its 31° transmission field of view.
• • Hardware-Accelerated TDMA: Leverages Time Division Multiple Access scheduling to minimize data packet collisions, dramatically cutting down wireless latency and optimizing bandwidth stability over long distance runs.
• • Cloud-Managed Ecosystem: Integrates seamlessly with the Ruijie Cloud Mobile App. This grants remote tech teams access to virtual topology charts, automated path optimization, real-time wireless spectrum scanning, and remote link diagnostics.
