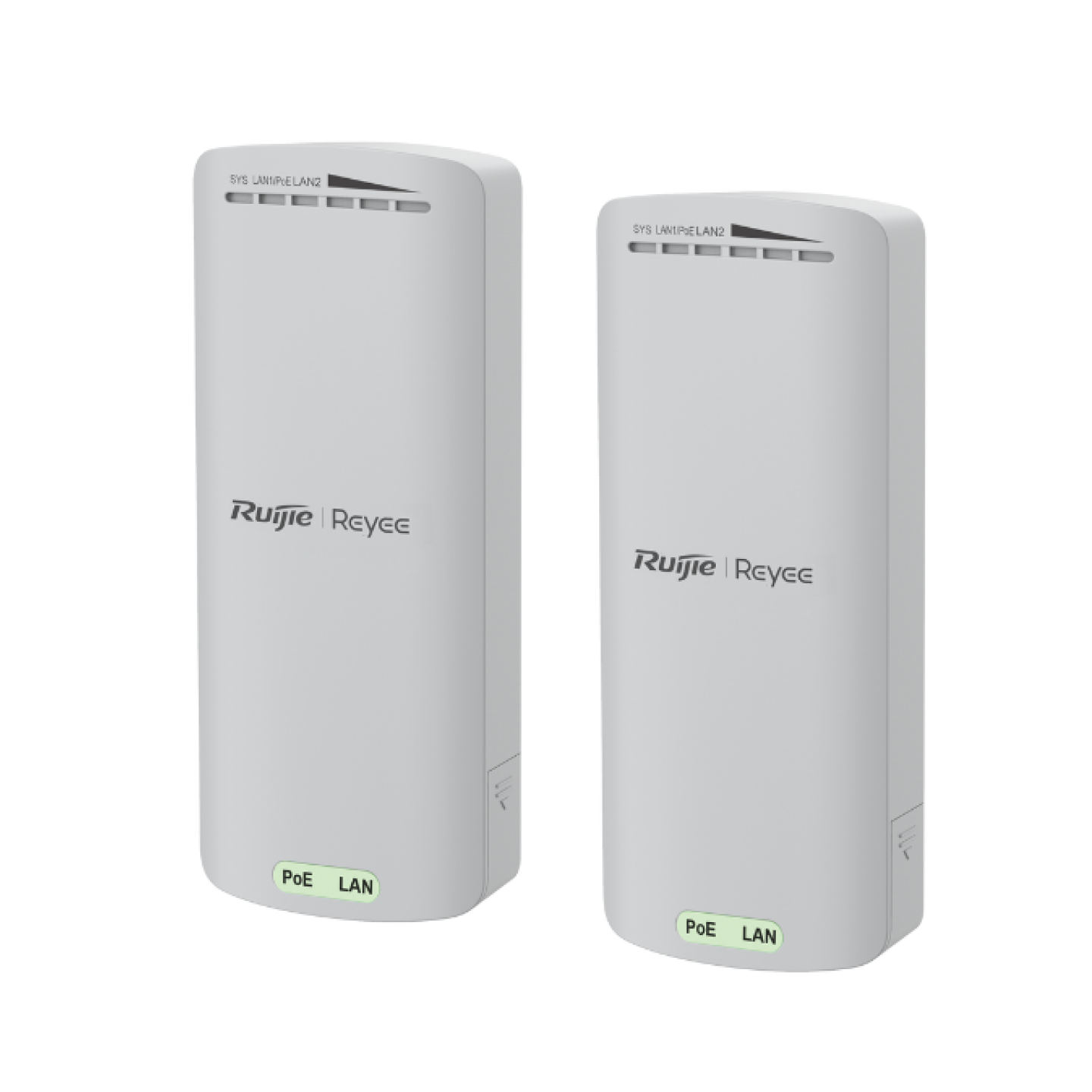

Ruijie Reyee RG-EST100-E

Features

• Key Specifications
• • Operating Frequency Band: 2.4 GHz (2.400 GHz to 2.483 GHz)
• • Max Wireless Throughput: Up to 300 Mbps using IEEE 802.11b/g/n
• • MIMO Technology: 2x2 MU-MIMO (Dual-stream)
• • Antenna Parameters: Built-in 8 dBi directional antennas with a 70° horizontal and 70° vertical beamwidth
• • Recommended Link Distance: Up to 500 meters (1,640 feet) line-of-sight
• • Physical Interfaces: 2 x 10/100Base-T RJ45 Ethernet ports per unit
• • Memory / Flash: 64 MB / 8 MB
• • Max. Transmit Power: ≤100 mW (20 dBm), adjustable
• • Power Supply: 12V DC passive PoE (Includes 12V passive PoE adapters in the box)
• • Max Power Consumption: 5 Watts
• Surveillance Loading Capacity
• The bridge network throughput dynamically handles active camera streams based on distance:
• • At 100 meters: Supports up to 10 x 3MP IP cameras
• • At 500 meters: Supports up to 5 x 3MP IP cameras
• Physical & Environmental Durability
• • Weatherproof Rating: IP55 certified shell (Rust-proof, dust-proof, and rain-resistant)
• • Operating Temperature: –30°C to 60°C (–22°F to 140°F), optimal for extreme outdoor or elevator environments
• • Surge / Lightning Protection: ±6 KV common mode protection
• • Dimensions (per unit): 165.5 mm × 68.7 mm × 42 mm
• • Weight (per unit): 0.3 kg
• Key Features
• • Factory-Free Configuration: The kits come pre-paired right out of the box. You do not need a laptop on-site to align or bridge them; they connect automatically once powered up.
• • Ruijie Cloud Integration: Offers visually intuitive topology maps and remote monitoring via the free Ruijie Cloud platform. It also includes an integrated spectrum analyzer to detect and bypass local 2.4Ghz channel interference
