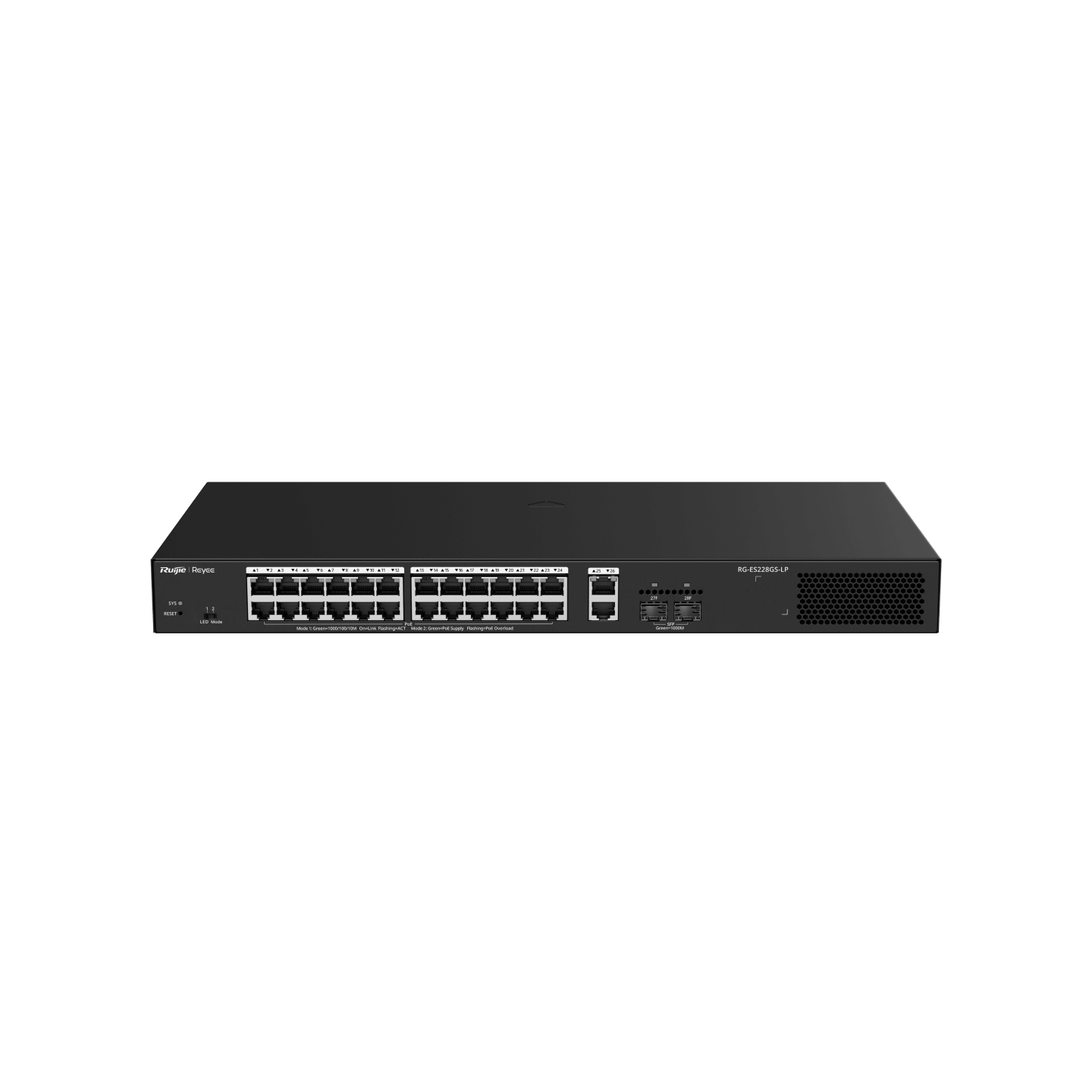

Ruijie Reyee RG-ES228GS-LP

Features

• Hardware Specifications
• • Model: RG-ES228GS-LP
• • Product Category: Layer 2 Smart Cloud-Managed Switch
• • Downlink / PoE Ports: 24 x 10/100/1000BASE-T (PoE/PoE+) RJ45 ports (IEEE 802.3af/at compliant)
• • Uplink Ports: 2 x 10/100/1000BASE-T RJ45 standard copper ports + 2 x 1GE SFP optical slots
• • Total Ports: 26 x Gigabit RJ45 ports + 2 x Gigabit SFP slots (28 ports total)
• • PoE Power Budget: 250 W (Max 30W per individual port)
• • PoE Pin Assignment: 1–2 (+), 3–6 (-)
• • Switching Capacity: 56 Gbps
• • Forwarding Rate: 41.664 Mpps
• • MAC Address Table: 8,000 entries
• • VLAN Support: Up to 16 active VLANs (IEEE 802.1Q)
• • Cooling Design: 1 x Fixed cooling fan (Automatic speed control, front-to-rear airflow, <40 dB at 25°C)
• • Surge Protection: ±6 kV (common mode for service ports) / ±6 kV (power connector)
• • Chassis & Form Factor: Durable metal 1U configuration (supports standard 19-inch rack-mount or desktop installation)
• • Dimensions (W x D x H): 440 mm × 214.9 mm × 43.2 mm
• • Net Weight: 2.80 kg
• • Power Supply: Integrated internal AC power supply (100–240 V AC input, 50/60 Hz)
• • Power Consumption: < 20W (idle/no PoE load) up to 294W–302W (full PoE load)
• • Warranty: 3-Year Manufacturer Warranty
• Key Features
• • Quad Gigabit Uplinks: Features 2 dedicated copper RJ45 uplinks alongside 2 SFP fiber slots. This allows you to scale network lines out to high-bandwidth fiber backhauls without losing local copper links to your local server stack or Network Video Recorders (NVRs).
• • IP Camera Capacity & Indexing: Optimized specifically for mid-to-large surveillance nodes, it automatically recognizes and filters connected IP cameras. It is recommended to handle up to 80 x 2MP H.265 cameras or up to 40 x 4MP H.265 cameras fluidly.
• • Smart IPC Healing (PoE Watchdog): Constantly monitors camera link states. If an IP camera crashes, drops data, or freezes, the switch identifies it and automatically power-cycles the corresponding PoE port to reboot the camera.
• • Perpetual PoE: Ensures your critical infrastructure stays online. Power routing through the 24 PoE lines continues flowing seamlessly even if the switch undergoes configuration reboots or firmware updates.
• • Automatic Loop Prevention: Protects local corporate uptime by automatically analyzing the topology, detecting accidental cable loops, and isolating the offending port before it triggers broadcast storm drops.
• • Lifetime-Free Cloud Management: Can be monitored, configured, and troubleshooted anywhere via the Ruijie Cloud Web Portal and Reyee mobile app. Supports zero-touch deployment via Self-Organizing Network (SON) tech.
