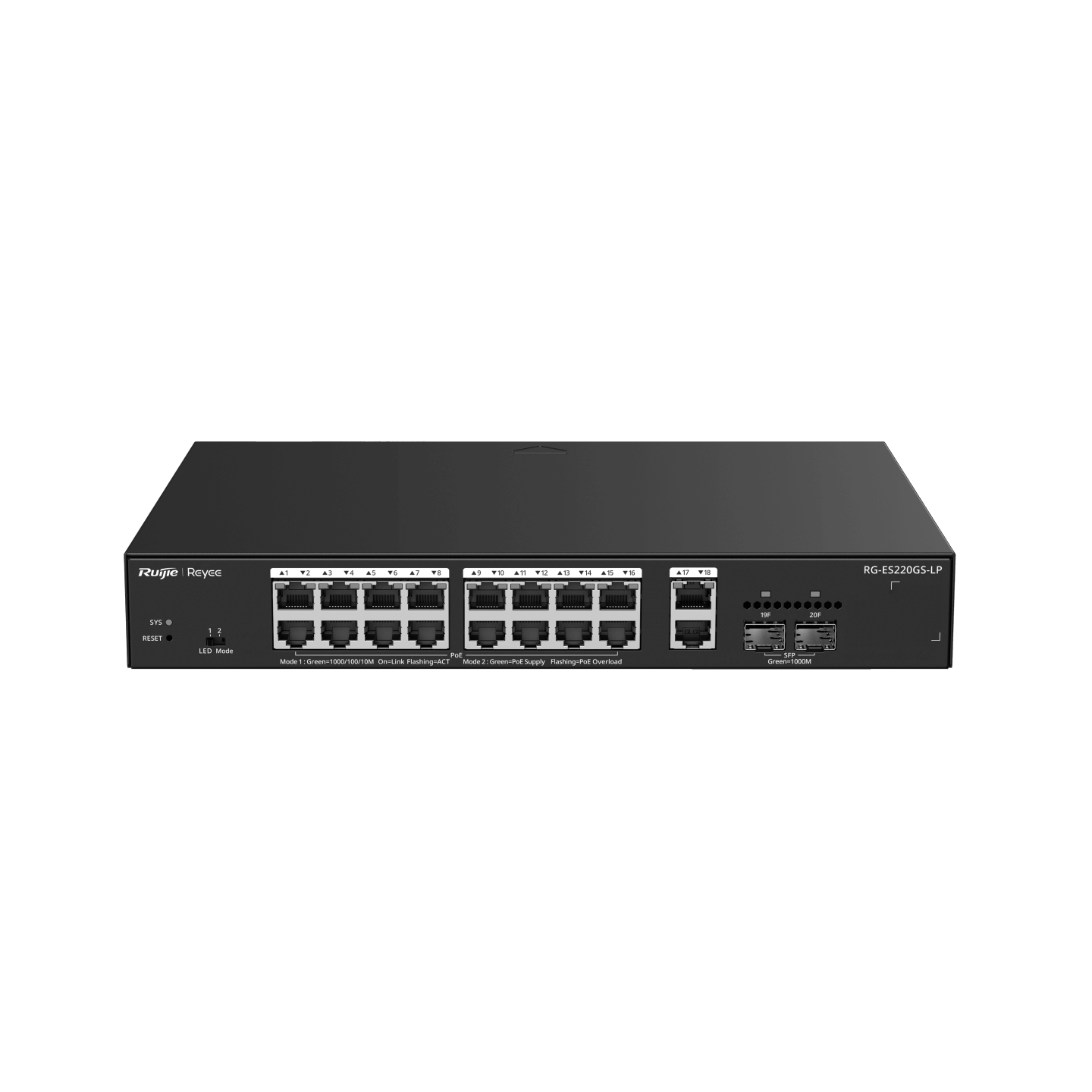

Ruijie Reyee RG-ES220GS-LP

Features

• Hardware Specifications
• • Model: RG-ES220GS-LP
• • Product Category: Layer 2 Smart Cloud-Managed Switch
• • Downlink / PoE Ports: 16 x 10/100/1000BASE-T (PoE/PoE+) RJ45 ports (IEEE 802.3af/at)
• • Uplink Ports: 2 x 10/100/1000BASE-T RJ45 ports + 2 x 1GE SFP optical slots
• • Total Ports: 18 x Gigabit RJ45 ports + 2 x Gigabit SFP ports (20 ports total)
• • PoE Power Budget: 130 W (Max 30W per individual port)
• • PoE Pin Assignment: 1-2 (+), 3-6 (-)
• • Switching Capacity: 40 Gbps
• • Forwarding Rate: 29.76 Mpps
• • MAC Address Table: 8,000 entries
• • VLAN Support: Up to 16 active VLANs (IEEE 802.1Q)
• • Cooling Design: Passive, fanless natural cooling
• • Surge Protection: ±6 kV (common mode on service ports)
• • Chassis & Form Factor: Durable metal 1U case (supports desktop or rack-mount installation)
• • Dimensions (W x D x H): 300 mm × 223 mm × 43.6 mm
• • Net Weight: 2.10 kg
• • Power Supply: Integrated internal AC power supply (100–240 V AC input)
• • Power Consumption: < 14W–15W (idle/no PoE) up to 157W–160W (full PoE load)
• • Warranty: 3-Year Manufacturer Warranty
• Key Features
• • Flexible Quad Uplinks: Equipped with 2 x Gigabit copper uplink ports and 2 x dedicated SFP fiber slots. This design allows you to chain a local NVR and security console over copper while maintaining a high-bandwidth redundant fiber backbone to the core network.
• • IP Camera Recognition: Built-in intelligence that automatically identifies and indexes connected IP cameras, creating an optimized infrastructure that can stream high-definition surveillance feeds without frame drops.
• • Smart IPC Healing (PoE Watchdog): Actively monitors IP camera communication. If a device freezes or crashes, the switch automatically power-cycles that specific PoE port to hard-reboot the camera.
• • Automatic Loop Prevention: Protects network uptime by automatically detecting data loops and shutting down the offending ports before they can bring down the rest of your branch operations.
• • Lifetime-Free Cloud Management: Remotely deploy setups using Self-Organizing Network (SON) technology, view dynamic topology maps, and handle global troubleshooting via the official Ruijie Cloud Web Portal / Reyee App.
