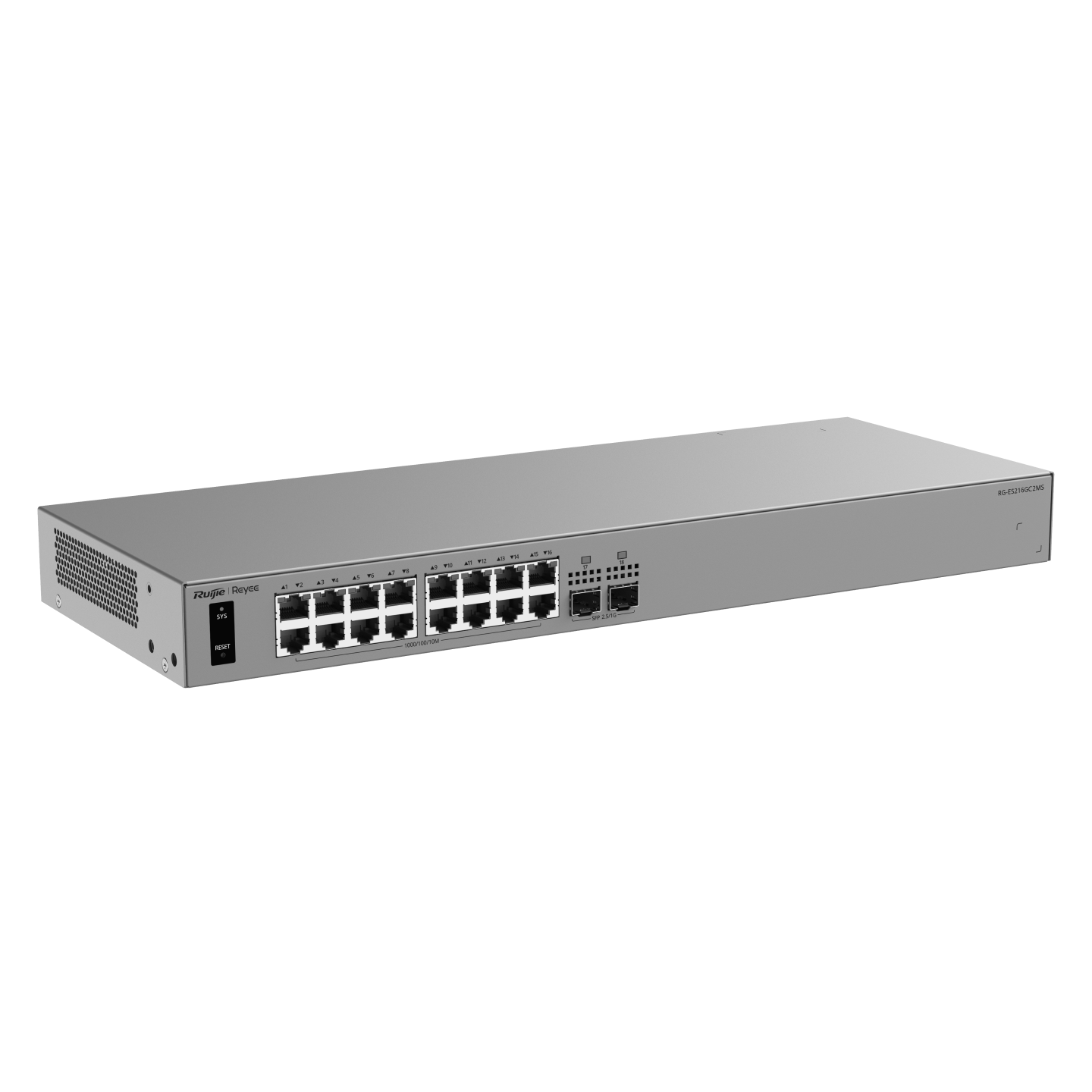

Ruijie Reyee RG-ES216GC2MS

Features

• Hardware Specs & Switching Performance
• • Total Downlink Ports: 16 × 10/100/1000BASE-T Gigabit RJ45 Ports.
• • Total Uplink Ports: 2 × 1GE/2.5GE SFP Optical Slots (Supports high-speed fiber trunks, unlocked up to 2.5 Gbps bandwidth).
• • Switching Capacity: 42 Gbps backplane switching fabric (significantly wider than the 32 Gbps of the standard version).
• • Packet Forwarding Rate: 31.25 Mpps.
• • MAC Address Table: Massive 16,000 entries for highly scalable multi-device networks.
• • PoE Capability: None (Data-only architecture).
• Enterprise Resilience & Software Features
• • ERPS (Ethernet Ring Protection Switching): Supports enterprise industrial loop redundancy, allowing network rerouting within milliseconds if a primary fiber link goes down.
• • Static Link Aggregation: Supports trunking multiple ports together to multiply backplane throughput and provide structural failover to connected servers or firewalls.
• • Smart CCTV Optimization: Features native IP camera and NVR auto-discovery, plotting out a complete visual CCTV network map inside the control panel.
• • Automatic Loop Prevention: Actively monitors and instantly blocks broadcast loops to protect the rest of your office network from crashing.
• • Network Segmentation: Supports up to 32 concurrent VLANs (IEEE 802.1Q) to safely partition departments, guest Wi-Fi, and security operations.
• • Management Architecture: Fully manageable via local web GUI or remotely for free through the Ruijie Cloud App & Web Interface.
• Physical, Ruggedness & Electrical
• • Form Factor: 1U 19-inch Rack-mountable design with a heavy-duty industrial metal casing.
• • Cooling System: Premium fanless, noiseless design for dead-silent continuous operation.
• • Heavy-Duty Surge Protection: Built-in 6 kV surge protection across all network ports to shield components from electrical lightning strikes.
• • Power Consumption: Maximum draw of just 13 Watts.
• • Power Supply: Direct internal power supply utilizing a standard AC power cord (100V~240V AC, 50/60Hz).
• • Dimensions (W x D x H): 440 mm × 165 mm × 44 mm.
