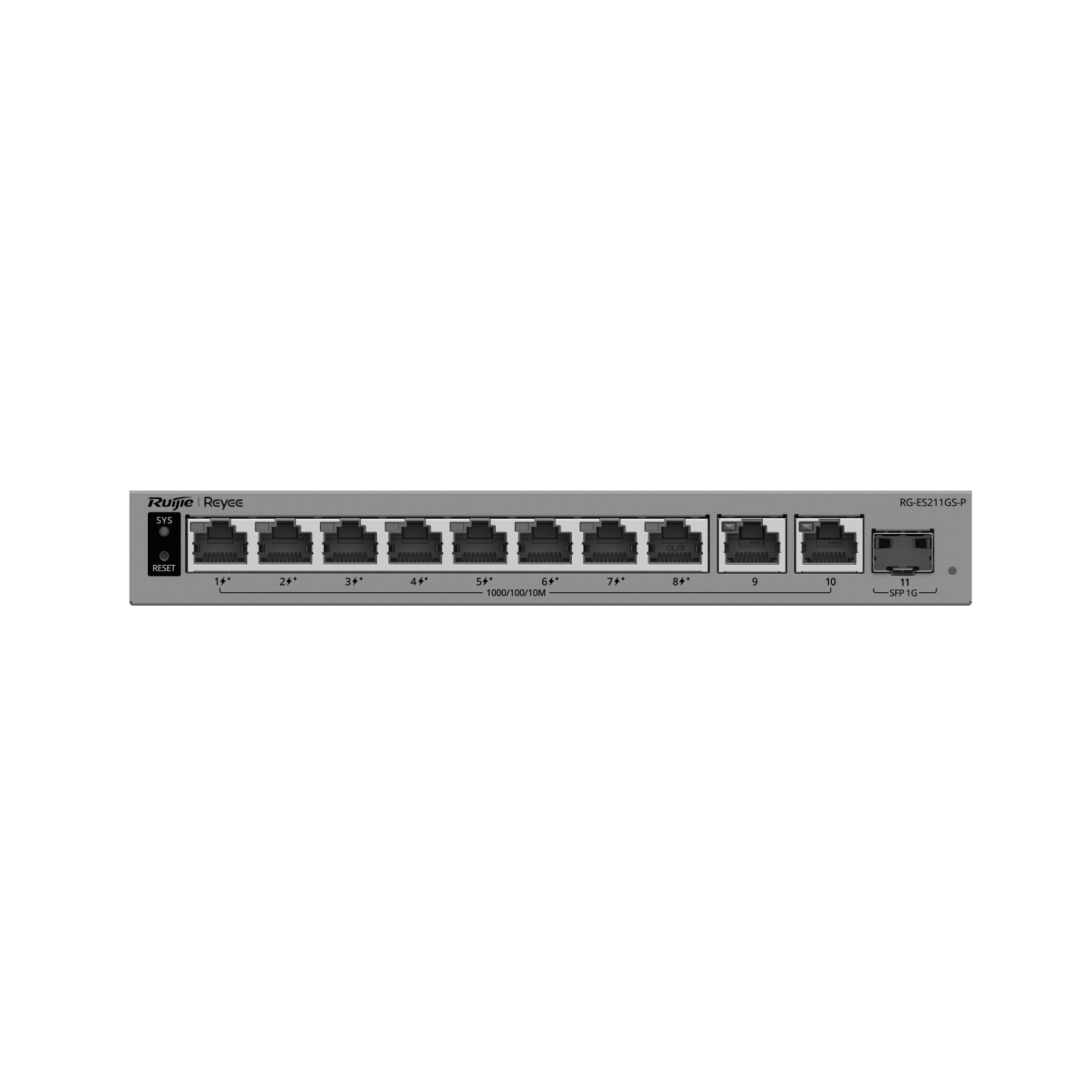

Ruijie Reyee RG-ES211GS-P

Features

• Hardware Specifications
• • Model: RG-ES211GS-P
• • Product Category: Layer 2 Smart Cloud-Managed Switch
• • Downlink / PoE Ports: 8 x 10/100/1000BASE-T (PoE/PoE+) RJ45 ports (IEEE 802.3af/at)
• • Uplink Ports: 2 x 10/100/1000BASE-T RJ45 ports + 1 x 1GE SFP optical port
• • Total Ports: 10 x Gigabit RJ45 ports + 1 x Gigabit SFP port (11 ports total)
• • PoE Power Budget: 120 W (Max 30W per individual port)
• • PoE Pin Assignment: 1-2 (+), 3-6 (-)
• • Switching Capacity: 22 Gbps
• • Forwarding Rate: 16.37 Mpps
• • MAC Address Table: 16,000 entries
• • VLAN Support: Up to 32 active VLANs (IEEE 802.1Q)
• • Cooling Design: Fanless natural heat dissipation
• • Surge Protection: ±6 kV (common mode for service ports)
• • Chassis: Durable metal protective case
• • Dimensions (W x D x H): 205 mm × 105 mm × 28 mm
• • Power Supply: External DC adapter (100–240 V AC input, 54 V DC / 2.5 A output)
• • Power Consumption: 8.5 W (idle/no PoE) up to 128.5 W (full PoE load)
• • Warranty: 3-Year Manufacturer Warranty
• Key Features
• • Dual Uplinks + Fiber SFP: Features two separate Gigabit copper uplinks along with a dedicated 1GE SFP slot. This lets you run a localized high-speed fiber backbone while concurrently patching in a local NVR and gateway without sacrificing your PoE distribution ports.
• • Smart IPC Healing (PoE Watchdog): Constantly monitors the connection state of hooked-up IP cameras. If a camera crashes or drops traffic, the switch automatically power-cycles that specific port to hard-reboot the device.
• • Perpetual PoE: Keeps power feeding continuously to your connected infrastructure during software updates, hot startups, or switch reboots.
• • Lifetime-Free Cloud Management: Built-in integration with the Ruijie Cloud Web Portal and Reyee mobile app for zero-touch configuration, remote port reboots, and automatic topology maps.
• • Rear DIP Switch: Instantly updates the front-panel status lights. Mode 1 tracks standard network transmission/link activity, while Mode 2 visualizes real-time PoE delivery and power thresholds.
