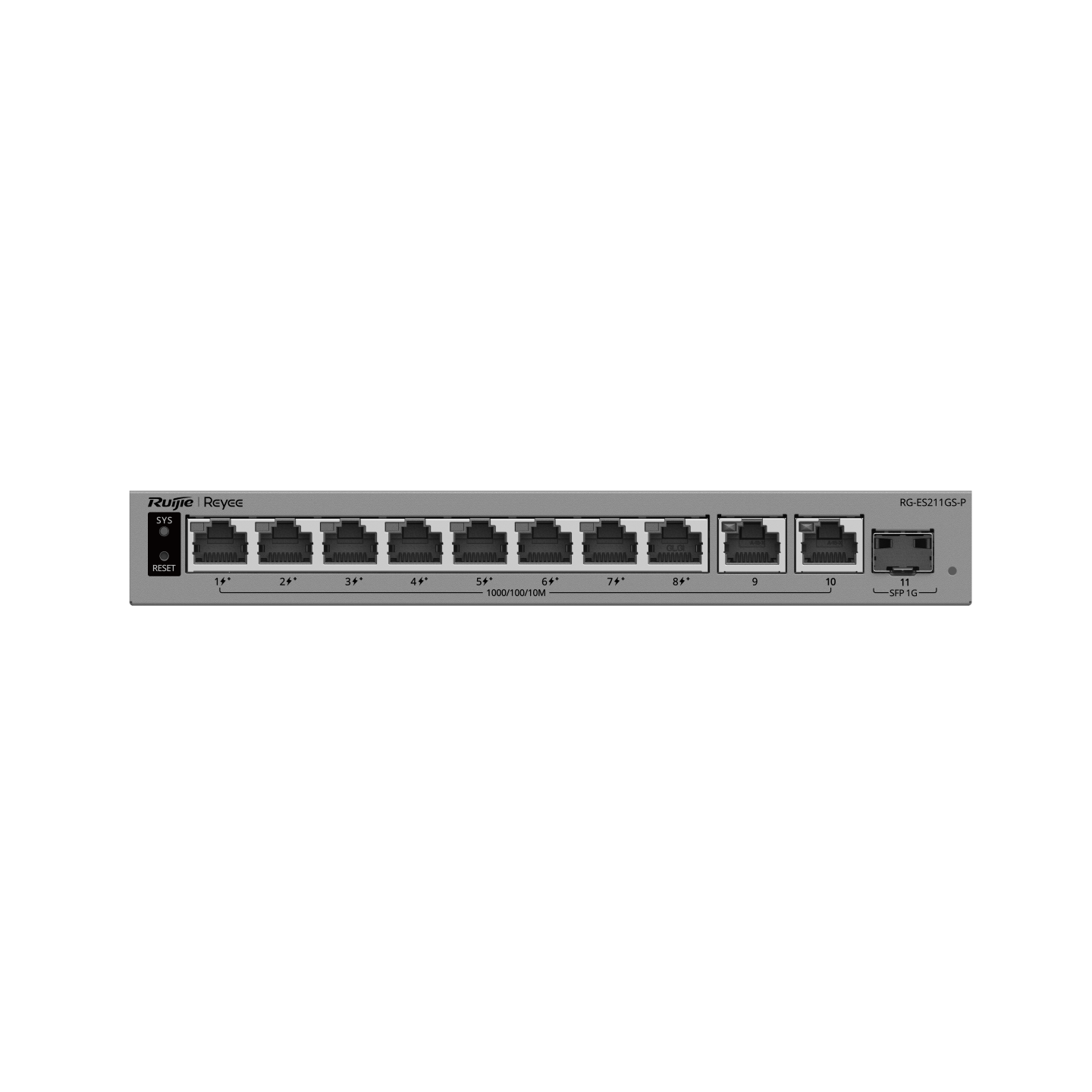

Ruijie Reyee RG-ES211GS-LP

Features

• Hardware Specifications
• • Model: RG-ES211GS-LP
• • Product Category: Layer 2 Smart Cloud-Managed Switch
• • Downlink / PoE Ports: 8 x 10/100/1000BASE-T (PoE/PoE+) RJ45 ports (IEEE 802.3af/at)
• • Uplink Ports: 2 x 10/100/1000BASE-T RJ45 ports + 1 x 1GE SFP optical port
• • Total Ports: 10 x Gigabit RJ45 ports + 1 x Gigabit SFP port (11 ports total)
• • PoE Power Budget: 70 W (Max 30W per individual port)
• • Switching Capacity: 22 Gbps
• • Forwarding Rate: 16.37 Mpps
• • MAC Address Table: 16,000 entries (significantly higher memory than the 2K entries on the 7-port models)
• • VLAN Support: Up to 32 active VLANs (IEEE 802.1Q)
• • Cooling Design: Fanless natural heat dissipation
• • Surge Protection: ±6 kV (common mode for service ports)
• • Dimensions (W x D x H): 205 mm × 105 mm × 28 mm
• • Power Supply: External DC adapter (100–240 V AC input, 54 V DC / 1.48 A output)
• • Power Consumption: 8 W (idle) up to 78 W (full PoE load)
• • Warranty: 3-Year Manufacturer Warranty
• Key Features
• • Dual Uplink + SFP Fiber: Offers two Gigabit copper uplink ports alongside an SFP slot. This lets you connect a local NVR and an internet gateway directly over copper without burning your high-speed SFP fiber uplink.
• • Smart IPC Healing (PoE Watchdog): Automatically detects if an IP camera becomes frozen or unresponsive and power-cycles that specific port to reboot the camera.
• • Perpetual PoE: Keeps power running to your security cameras or access points even during switch reboots or firmware updates.
• • Lifetime-Free Cloud Management: Native deployment, remote port resetting, and topology maps via the Ruijie Cloud Web Portal and Reyee mobile app.
• • Hardware DIP Switch: Located on the rear panel to toggle front LED behavior between Mode 1 (Network traffic link/activity status) and Mode 2 (PoE output power status).
