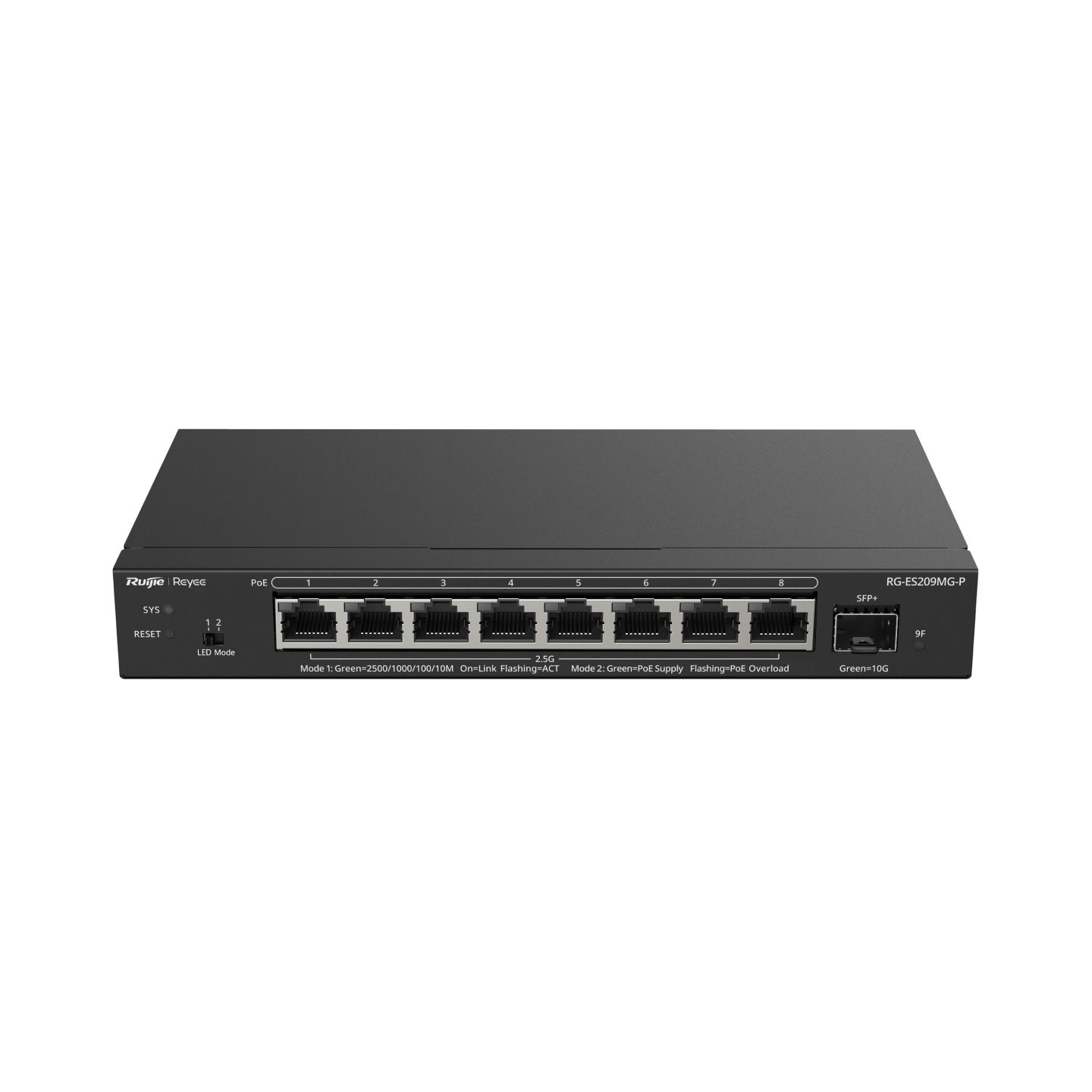

Ruijie Reyee RG-ES209MG-P

Features

• Key Specifications
• • Switch Type: Layer 2 Smart Cloud-Managed Switch
• • Total Ports: 9 ports total (8 Multi-Gigabit copper ports + 1 High-speed optical SFP+ uplink)
• • Ethernet / PoE+ Ports: 8 x 10/100/1000/2500BASE-T Multi-Gigabit PoE/PoE+ ports (supporting IEEE 802.3af/at)
• • Optical Uplink Port: 1 x 10GE SFP+ port for lightning-fast backbone or core switch fiber connectivity
• • PoE Budget: 130W total power budget (delivering up to 30W per port)
• • PoE Power Pins: 1–2 (+), 3–6 (–)
• • Switching Capacity: 60 Gbps
• • Packet Forwarding Rate: 45 Mpps
• • MAC Address Table: 4,000 entries
• Software & Network Management
• • Management Ecosystem: Free lifetime cloud management via the Ruijie Cloud Web Portal and Reyee mobile app.
• • Smart PoE Watchdog: Automatically checks the responsiveness of downstream PDs (like IP cameras) and power-cycles the port if a device freezes.
• • Link Aggregation: Supports static link aggregation for up to 4 ports to multiply bandwidth and ensure hardware redundancy.
• • Network Intelligence: Features Self-Organizing Network (SON) technology for automatic discovery, topology mapping, and zero-touch configuration.
• • Security & Safety: Supports hardware port isolation, storm protection, and DHCP Snooping.
• Physical & Reliability Features
• • Cooling Architecture: Passive, fanless design for completely silent operation—ideal for office settings.
• • LED Toggle Button: Physical front-panel switch to shift LED indicators between Link/Data transmission status and PoE consumption/overload monitoring.
• • Form Factor: Compact metal enclosure measuring 202 mm x 108 mm x 28 mm (Desktop or Wall-mountable).
• • Power Input: External 54V DC, 2.78A power adapter (included). Max power consumption is 138.5W at full PoE load.
• • Surge & Static Protection: Service ports provide ±4 kV surge protection; Electrostatic Discharge (ESD) protection rated at 8 kV air / 6 kV contact.
• • Warranty: 3-year manufacturer's warranty.
