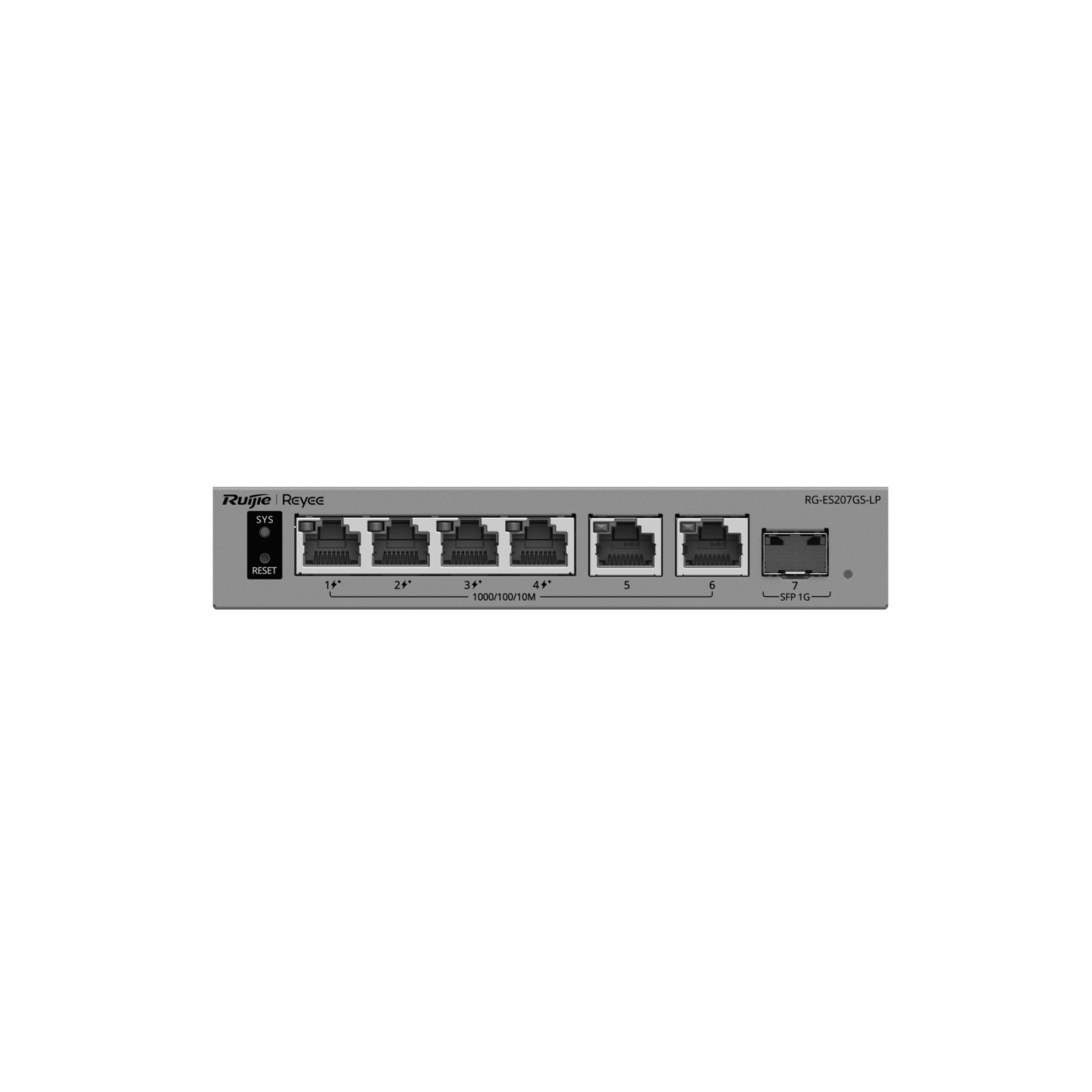

Ruijie Reyee RG-ES207GS-P

Features

• Hardware Specifications
• • Model: RG-ES207GS-P
• • Product Category: Layer 2 Smart Cloud-Managed Switch
• • Downlink / PoE Ports: 4 x 10/100/1000BASE-T (PoE/PoE+) RJ45 ports (IEEE 802.3af/at)
• • Uplink Ports: 2 x 10/100/1000BASE-T RJ45 ports + 1 x 1GE SFP optical port
• • Total Ports: 6 x Gigabit RJ45 ports + 1 x Gigabit SFP port (7 ports total)
• • PoE Power Budget: 54 W
• • PoE Pin Assignment: 1-2 (+), 3-6 (-)
• • Switching Capacity: 14 Gbps
• • Forwarding Rate: 10.42 Mpps
• • MAC Address Table: 2,000 entries
• • VLAN Support: Up to 32 VLANs (IEEE 802.1Q)
• • Flash Memory: 8 MB
• • Jumbo Frame: 9,216 bytes
• • Cooling Design: Fanless
• • Surge Protection: ±6 kV (common mode)
• • Dimensions (W x D x H): 155 mm × 78 mm × 28 mm
• • Power Input: External DC power adapter (100–240 V AC input, 54 V DC / 1.2 A output)
• • Power Consumption: ~4 W (idle/no PoE load) up to 58 W (full PoE load)
• • MTBF: 200,000 hours
• • Warranty: 3-Year Manufacturer Warranty
• Key Features
• • Smart Cloud Management: Lifetime-free remote configuration, traffic monitoring, and maintenance via the Ruijie Cloud Platform.
• • Smart CCTV Healing (PoE Watchdog): Automatically tracks the status of connected cameras and automatically power-cycles frozen or unresponsive IP devices.
• • Perpetual PoE: Ensures non-stop power supply to IP cameras even during switch reboots or firmware updates.
• • Front DIP Switch: Instantly toggle the LED indicator function between Mode 1 (Network traffic status link) and Mode 2 (PoE output power status).
• • Loop Prevention & Security: Built-in automatic loop detection blocks problematic loops instantly. Includes Layer 2 features like DHCP snooping, port isolation, and broadcast storm controls.
