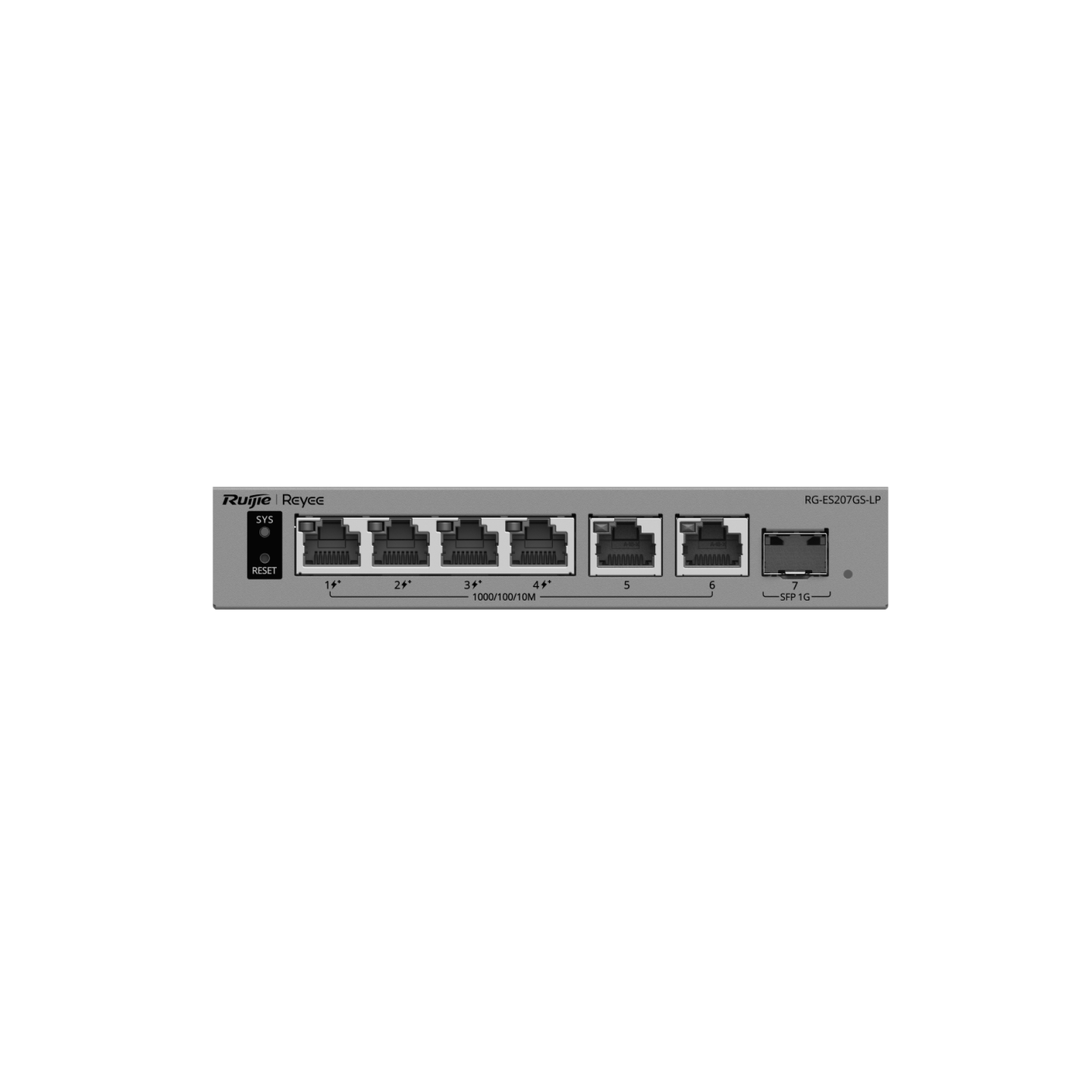

Ruijie Reyee RG-ES207GS-LP

Features

• Hardware Specifications
• • Model: RG-ES207GS-LP
• • Product Category: Layer 2 Smart Cloud-Managed Switch
• • Downlink / PoE Ports: 4 x 10/100/1000BASE-T (PoE/PoE+) RJ45 ports (IEEE 802.3af/at)
• • Uplink Ports: 2 x 10/100/1000BASE-T RJ45 ports + 1 x 1GE SFP optical port
• • Total Ports: 6 x Gigabit RJ45 ports + 1 x Gigabit SFP port (7 ports total)
• • PoE Power Budget: 40 W
• • PoE Pin Assignment: 1-2 (+), 3-6 (-)
• • Switching Capacity: 14 Gbps
• • Forwarding Rate: 10.42 Mpps
• • MAC Address Table: 2,000 entries
• • VLAN Support: Up to 32 VLANs (IEEE 802.1Q)
• • Flash Memory: 8 MB
• • Jumbo Frame: 9,216 bytes
• • Cooling Design: Fanless
• • Surge Protection: ±6 kV (common mode)
• • Dimensions (W x D x H): 155 mm × 78 mm × 28 mm
• • Power Supply: External DC adapter (100–240 V AC input, 54 V DC / 1.2 A output)
• • Power Consumption: ~4 W (idle/no PoE load) up to 44 W (full PoE load)
• • MTBF: 200,000 hours
• • Warranty: 3-Year Manufacturer Warranty
• Key Features
• • Smart Cloud Management: Lifetime-free management via the Ruijie Cloud app and web platform.
• • CCTV & IPC Features: Automatic IP camera recognition, PoE watchdog, and smart protection for service continuity.
• • Perpetual PoE: Continues supplying power to connected devices during switch reboots or firmware updates.
• • Front DIP Switch: Toggle between Mode 1 (Network traffic status LEDs) and Mode 2 (PoE status LEDs).
• • Layer 2 Security: Supports port isolation, DHCP snooping, and network storm control.
