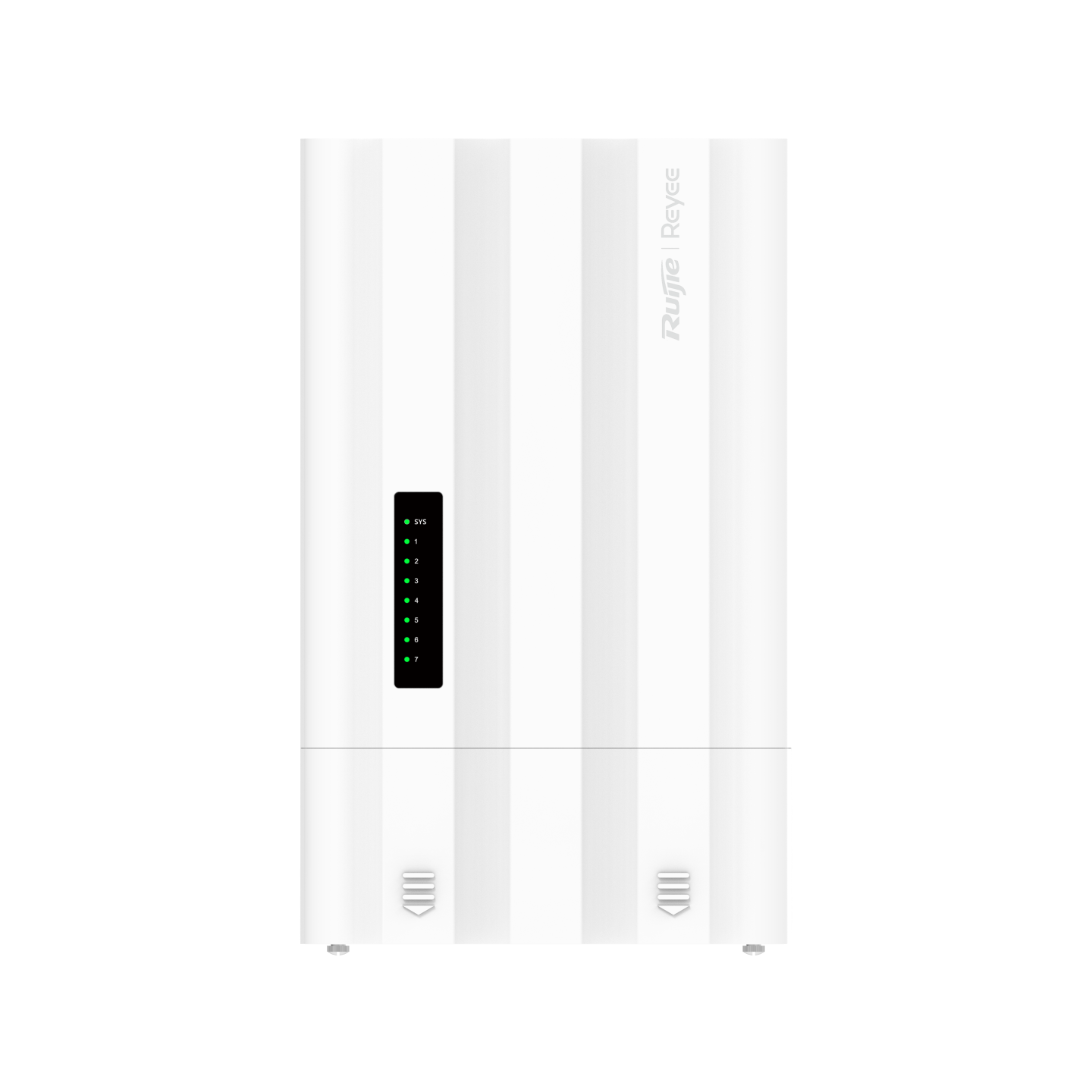

Ruijie Reyee RG-ES207GS-AC-OD

Features

• Key Specifications
• • Switch Type: Layer 2 Smart Outdoor Cloud-Managed Switch
• • Total Ports: 7 ports total (5 RJ45 copper ports + 2 SFP optical ports)
• • Ethernet / PoE+ Ports:
• • 4 x 10/100/1000BASE-T PoE/PoE+ ports (Ports 1–4, supporting IEEE 802.3af/at)
• • 1 x 10/100/1000BASE-T non-PoE RJ45 uplink port (Port 5)
• • Optical Uplink Ports: 2 x 1GE SFP optical ports for long-distance fiber ring topologies
• • PoE Budget: 60W total power budget (up to 30W/25.5W per individual port)
• • PoE Power Pins: 1–2 (+), 3–6 (–)
• • Switching Capacity: 14 Gbps
• • Packet Forwarding Rate: 10.42 Mpps
• • MAC Address Table: 2,000 entries
• Software & Resilience Features
• • Network Management: Free lifetime cloud management through the Ruijie Cloud Portal and Reyee mobile app.
• • PoE Watchdog: Continuously monitors connected downstream devices (like outdoor IP cameras) and automatically power-cycles the port if a device goes unresponsive.
• • Network Resilience (ERPS): Natively supports the Ethernet Ring Protection Switching (ERPS) protocol to create redundant, self-healing fiber ring loops across your perimeter network.
• • Smart CCTV Recognition: Auto-detects connected network cameras and network video recorders (NVRs) for zero-touch onboarding and live visual topology mapping.
• Physical, Power & Environmental Properties
• • Enclosure & Weatherproofing: Sealed plastic housing rated at IP65 (fully dustproof and resistant to heavy water jets). Features a sliding bottom cap with rubber grommet cable glands to block moisture.
• • Power Input: Direct AC Main terminal block connection internal to the switch.
• • Rated Input Voltage: 100 V AC to 240 V AC, 50/60 Hz
• • Power Consumption: Max 4.8W with no PoE load; up to 70W at maximum PoE load.
• • Cooling Architecture: Passive, fanless design utilizing natural cooling.
• • Surge & Static Protection: Highly robust for outdoor deployments:
• • Service Ports: ±8 kV common mode protection.
• • Power Connector: ±6 kV common mode and ±6 kV differential mode protection.
• • ESD Protection: 8 kV air discharge / 6 kV contact discharge.
• • Operating Temperature: Extreme weather performance rated from -30°C to +65°C (-22°F to 149°F).
• • Mounting Options: Includes dedicated mounting hardware for immediate Wall or Pole mounting.
• • Dimensions & Weight: 328 mm x 200 mm x 62.8 mm; 1.38 kg (3.04 lbs).
