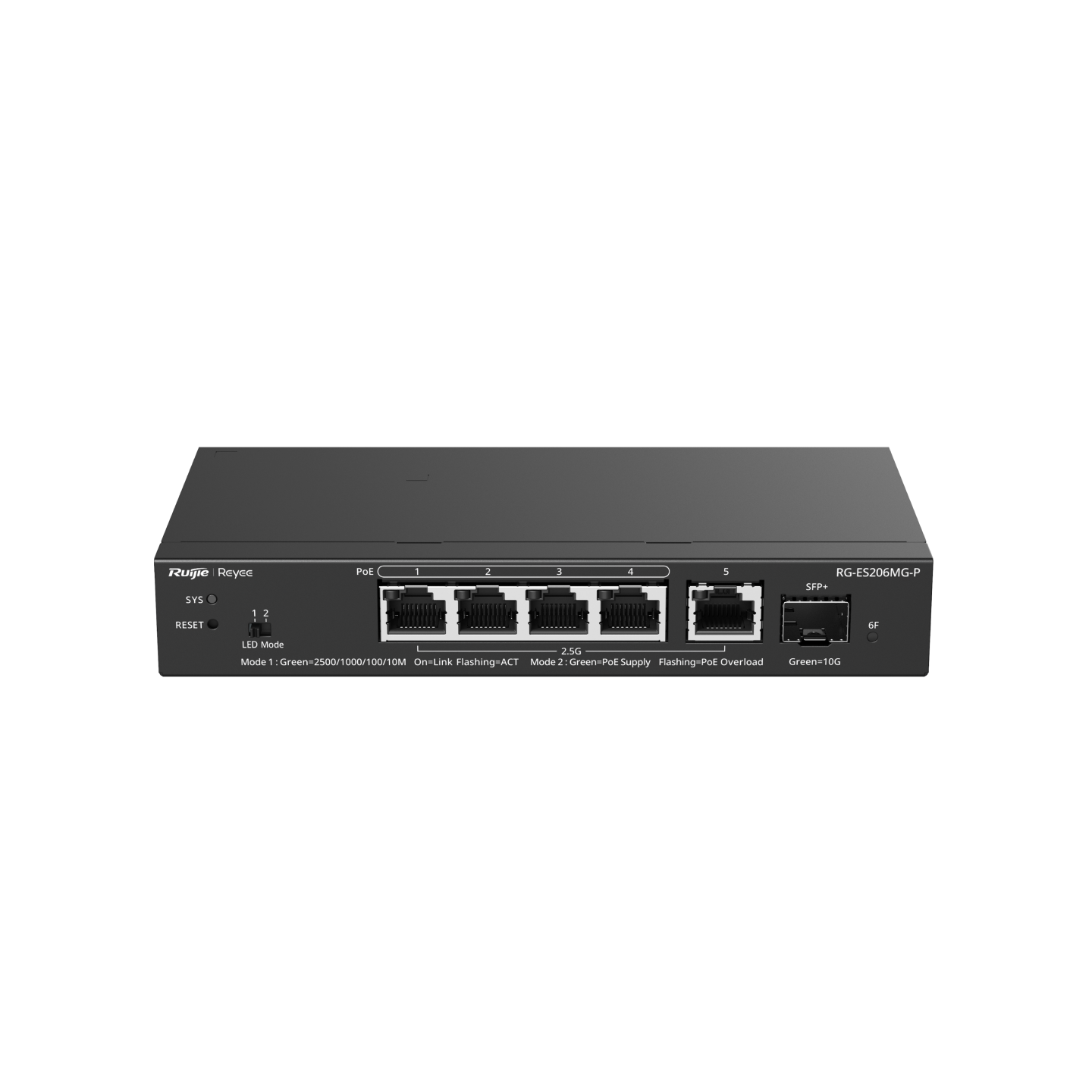

Ruijie Reyee RG-ES206MG-P

Features

• Key Specifications
• • Switch Type: Layer 2 Smart Cloud-Managed Switch
• • Total Ports: 6 ports total (5 Multi-Gigabit copper ports + 1 High-speed optical SFP+ port)
• • Ethernet / PoE+ Ports:
• • 4 x 10/100/1000/2500BASE-T Multi-Gigabit PoE/PoE+ ports (Ports 1–4, supporting IEEE 802.3af/at)
• • 1 x 10/100/1000/2500BASE-T Multi-Gigabit non-PoE copper uplink port
• • Optical Uplink Port: 1 x 10GE SFP+ port for ultra-fast, future-proof backbone connectivity
• • PoE Budget: 70W total power budget (up to 30W per port)
• • PoE Power Pins: 1-2 (+), 3-6 (-)
• • Switching Capacity: 45 Gbps
• • Forwarding Rate: 33.75 Mpps
• Software & Network Management
• • Management Platform: Free lifetime cloud management through the Ruijie Cloud ecosystem and Reyee mobile app.
• • PoE Watchdog: Built-in auto-recovery system that monitors and automatically power-cycles unresponsive or frozen downstream devices.
• • Link Aggregation: Supports static link aggregation across up to 4 ports to maximize bandwidth or establish network redundancy.
• • Smart CCTV Recognition: Automatically detects connected IP cameras and NVRs for unified topology visualization.
• • Security: Features hardware-level port isolation.
• Physical & Mechanical Properties
• • Cooling & Acoustics: Completely fanless design for silent operational performance.
• • Hardware Interface Mode Switch: Features a physical toggle switch to alternate the front panel LED status indicator between network transmission traffic state and active PoE consumption state.
• • Mounting Configurations: Suitable for desk or wall-mount deployment scenarios.
• • Operating Temperature: 0°C to 40°C (32°F to 104°F).
• • Warranty: 3-year manufacturer's warranty.
