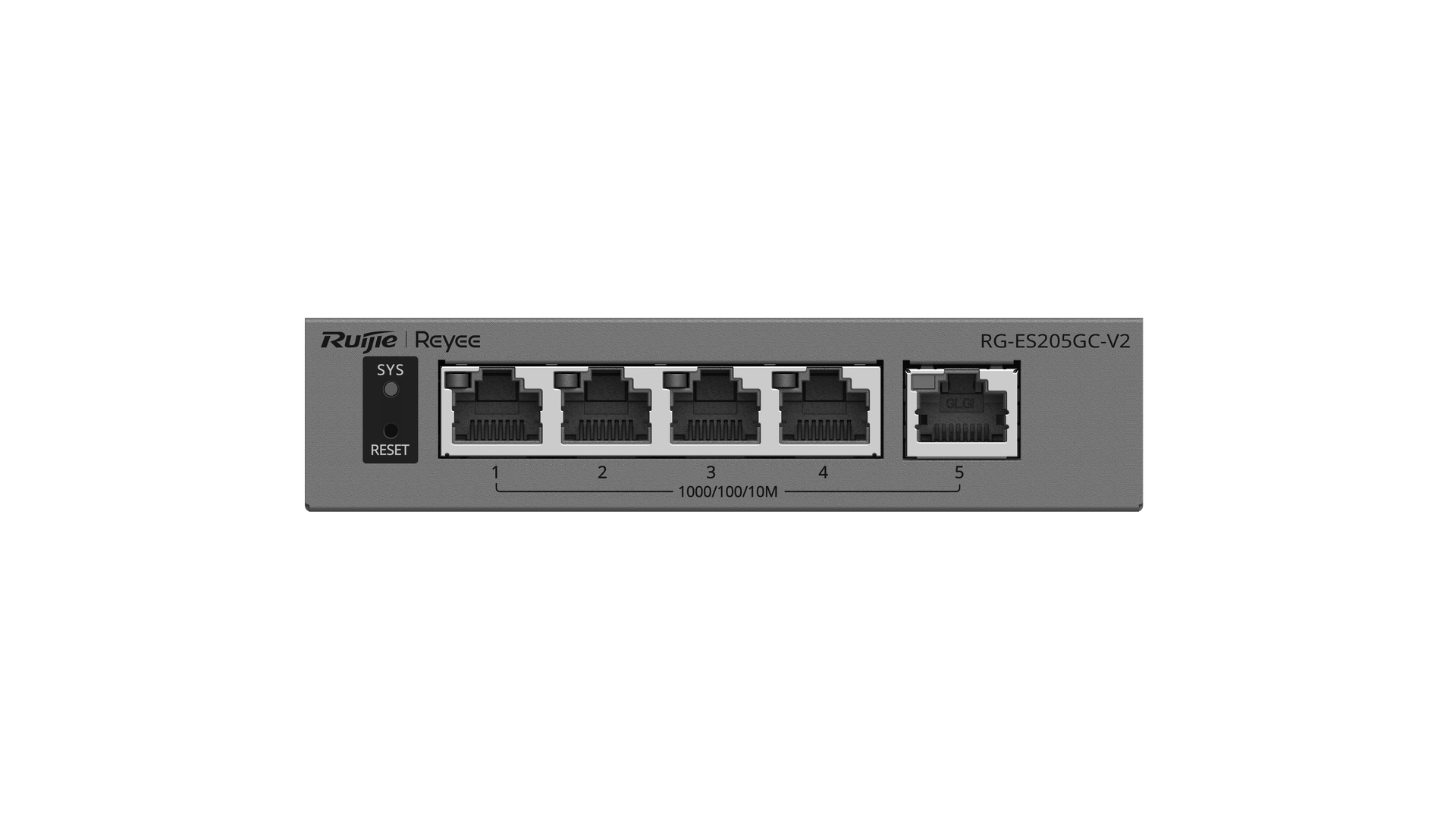

Ruijie Reyee RG-ES205GC-V2

Features

• Hardware Specs & Switching Performance
• • Total Ports: 5 × 10/100/1000BASE-T Gigabit RJ45 Ports (All copper ports, no SFP slots).
• • Switching Capacity: 10 Gbps of total backplane switching matrix.
• • Packet Forwarding Rate: 7.44 Mpps.
• • MAC Address Table: 2,000 entries.
• • Flash Memory: Upgraded to 8 MB (compared to 4 MB on the older V1 version).
• • PoE Capability: None. It is a data-only switch powered via a bundled DC adapter.
• CCTV Optimization & Software Features
• • Smart IP Camera Recognition: Instantly auto-discovers connected IP cameras and Network Video Recorders (NVRs) across the network, generating a visual topology right inside the app.
• • Automatic Loop Prevention: If a loop is accidentally created (e.g., plugging both ends of a cable into the same switch), it automatically detects and blocks the offending port to maintain network continuity.
• • Network Segmentation: Supports up to 32 concurrent VLANs (IEEE 802.1Q) for secure network isolation.
• • Layer 2 Security: Built-in DHCP Snooping, Port Isolation, Broadcast/Multicast Storm Control, and CPU Protection policies.
• • Free Lifetime Management: Fully configurable via local eWeb or remotely through the Ruijie Cloud App & Web Portal with zero ongoing subscription costs.
• Physical, Ruggedness & Electrical
• • Heavy-Duty Surge Protection: Features robust 6 kV surge protection on all Ethernet ports and 4 kV protection on the power supply to guard against lightning strikes.
• • Chassis & Cooling: Premium matte-black metal desktop protective case utilizing a fanless, noiseless design for silent placement right on a desk.
• • Power Consumption: Extremely energy-efficient, drawing a maximum of just 2.5 Watts.
• • Power Supply: Powered via an external 5V DC / 1A power brick.
• • Dimensions (W x D x H): Tiny footprint at 121 mm × 62 mm × 28 mm.
• • Weight: 0.19 kg.
