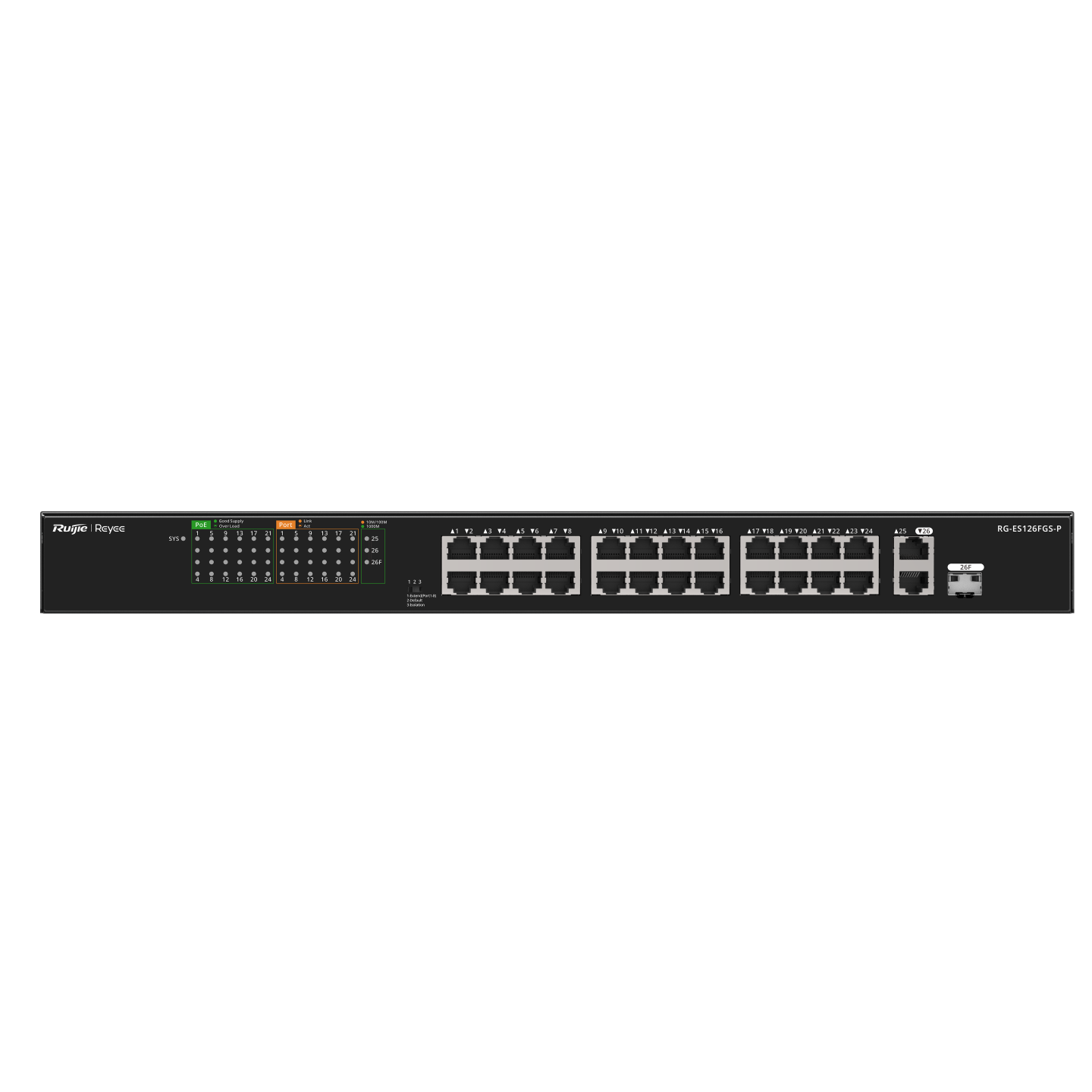

Ruijie Reyee RG-ES126FGS-P

Features

• Key Specifications
• • Ethernet Ports:
• • 24 x 10/100 Mbps Fast Ethernet ports supporting PoE/PoE+ (IEEE 802.3af/at)
• • 1 x Gigabit RJ45 Uplink port
• • 1 x Gigabit RJ45 / SFP combo port
• • PoE Power Budget:
• • Maximum 30W per port
• • Total PoE power budget of 370W (compared to 180W on the LP version)
• • Performance:
• • Switching capacity: 8.8 Gbps
• • Packet forwarding rate: 6.55 Mpps
• • MAC address table: 8K
• • Physical & Environment:
• • Casing: Steel rack-mountable design (19-inch, 1U)
• • Dimensions: 440 x 214.9 x 44 mm
• • Weight: 3.78 kg (slightly heavier due to the internal power supply)
• • Cooling: Incorporates active cooling with an adjustable-speed fan
• • Power supply: 100V to 240V AC, 6.0A
