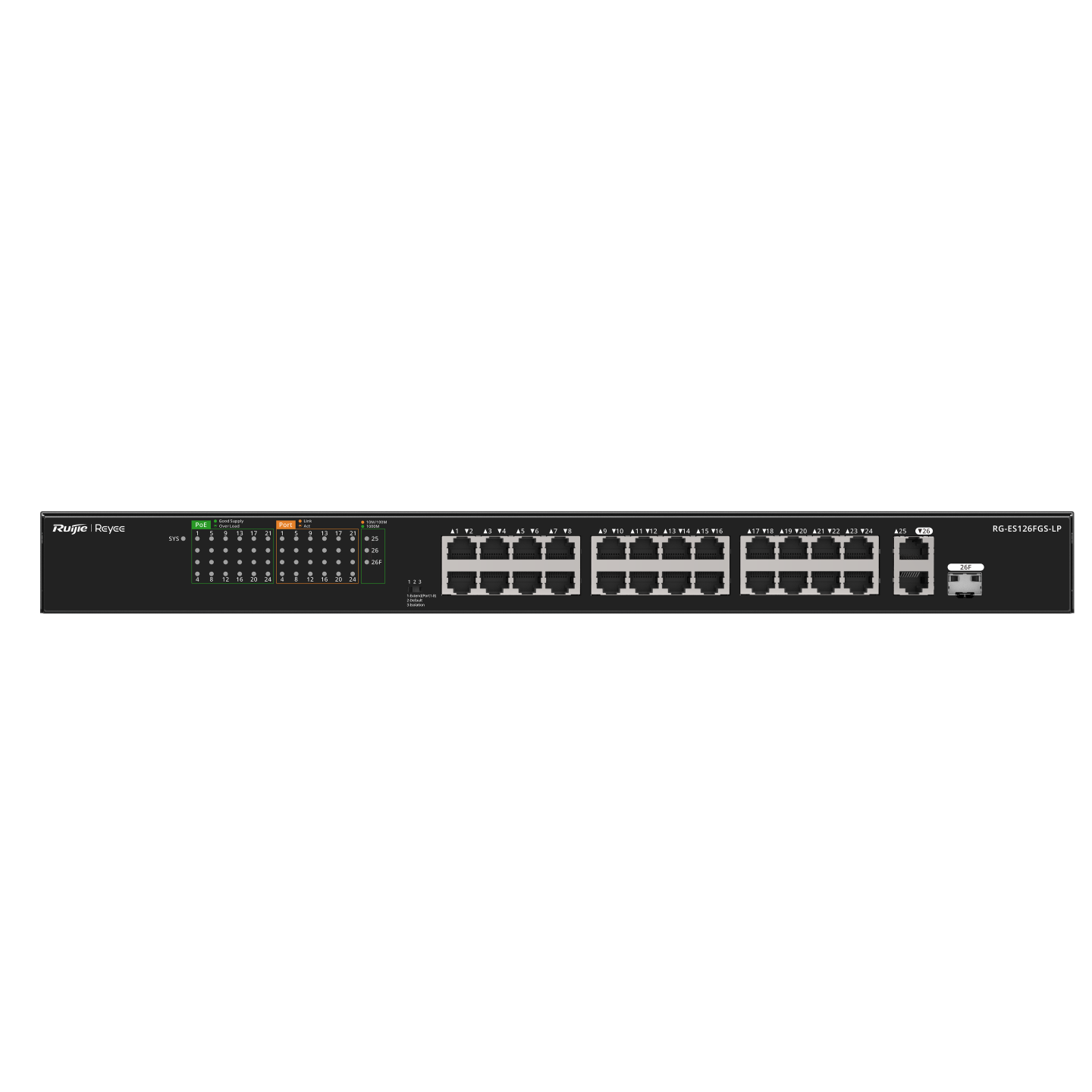

Ruijie Reyee RG-ES126FGS-LP

Features

• Key Specifications
• • Ethernet Ports:
• • 24 x 10/100 Mbps Fast Ethernet ports supporting PoE/PoE+ (IEEE 802.3af/at)
• • 2 x Gigabit RJ45 / SFP combo (or Gigabit uplink) ports
• • PoE Power Budget:
• • Maximum 30W per port
• • Total PoE power budget of 180W
• • Performance:
• • Switching capacity: 8.8 Gbps
• • Packet forwarding rate: 6.55 Mpps (million packets per second)
• • MAC address table: 8K (8,000 entries)
• • Physical & Environment:
• • Casing: Durable metal / steel rack-mountable design (19-inch, 1U)
• • Dimensions: 440 x 214.9 x 44 mm
• • Weight: 3.2 kg
• • Operating temperature: 0°C to 45°C
• • Power supply: 100V to 240V AC, 3.5A
• Main Features
• • PoE Watchdog / Auto-Recovery: Automatically detects and reboots unresponsive IP cameras or connected PoE devices.
• • Extend Mode: Supports long-distance PoE transmission up to 250 meters.
• • Port Isolation: Hardware DIP switch option to isolate ports for enhanced security.
• • Cloud Visibility: Unmanaged switch that can be viewed on the Ruijie Cloud platform if at least one managed Ruijie/Reyee switch is present on the network.
