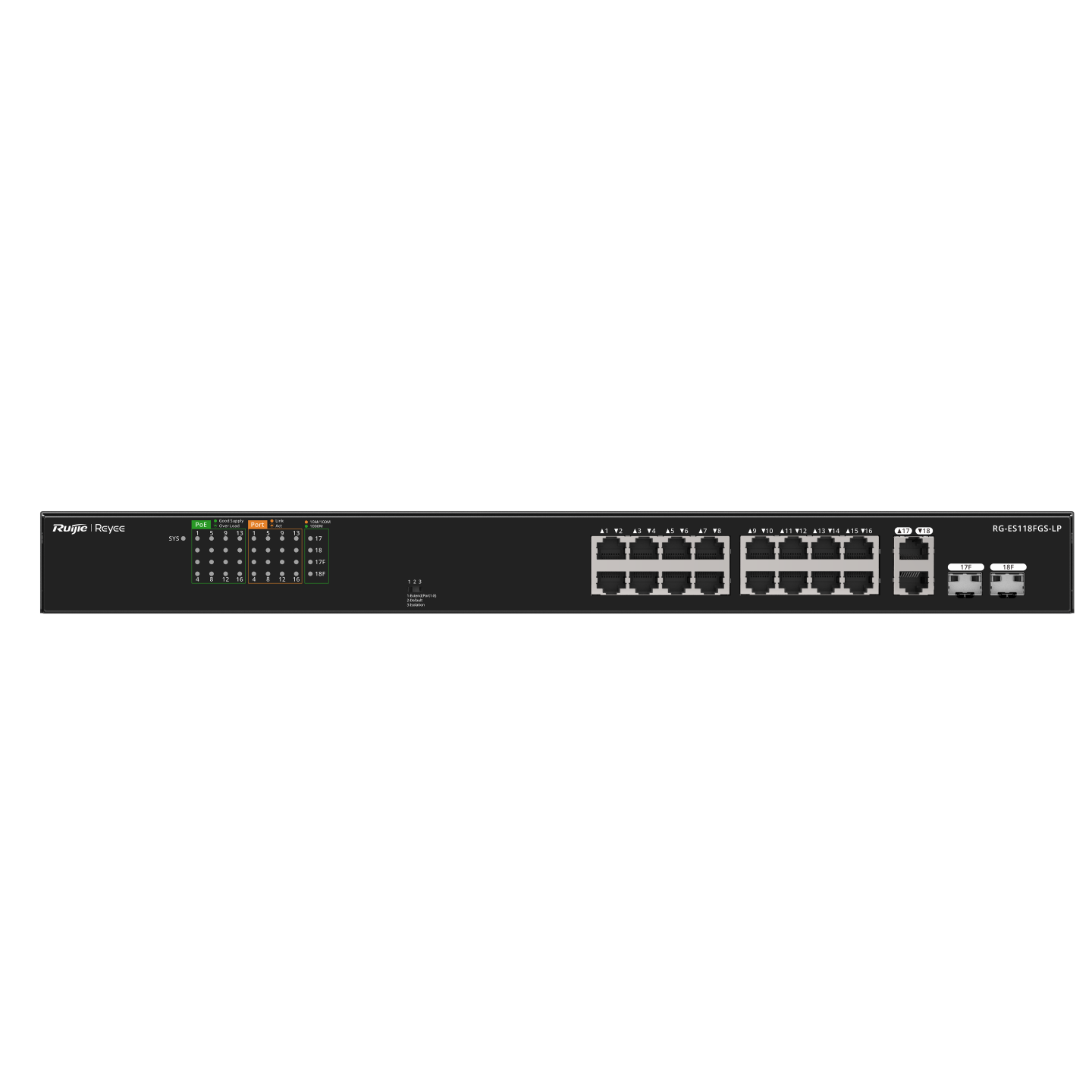

Ruijie Reyee RG-ES118FGS-LP

Features

• Hardware & Interface Specifications
• • Total Ports: 18 Ports
• • Downlink Ports: 16 × 10/100BASE-T RJ45 ports supporting PoE/PoE+ (IEEE 802.3af/at)
• • Uplink Combo Ports: 2 × 10/100/1000BASE-T RJ45 ports + 2 × 1GE SFP optical slots (The Gigabit RJ45 and SFP function as combo pairs)
• • Max PoE per Port: 30 W
• • PoE Budget: 120 W total power budget
• • PoE Power Pins: 1–2 (+), 3–6 (-)
• • Surge Protection: 4 kV common mode protection for service ports
• • Physical Work Mode Switch:
• • Default Mode: Standard network operation; all 18 ports communicate normally with full flow control active.
• • Extend Mode: Reduces the link speed of PoE ports 1–16 down to 10 Mbps but extends the maximum cable run up to 200 to 250 meters (using Cat5e or better), perfect for distant security cameras.
• • Port Isolation Mode: Isolates downlink ports 1 through 16 from communicating with one another, restricting them to talk only to the uplink ports 17 and 18 to isolate broadcast storms.
• Performance & System Architecture
• • Switching Capacity: 7.2 Gbps
• • Forwarding Rate: 5.3 Mpps to 5.35 Mpps
• • MAC Address Table: Up to 8,000 entries (8K)
• • Smart Features: Integrated PoE Watchdog (automatically power-cycles and reboots unresponsive or frozen IP cameras 24/7) and Intelligent PoE Power Management.
• Power & Environment
• • Power Supply: Internal layout supporting AC input from 100V AC to 240V AC, 3.0A (50/60 Hz)
• • Max Power Consumption: < 120 W to 125 W (under full PoE load)
• • Cooling: Fanless, completely silent thermal cooling system
• • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• Physical Characteristics
• • Casing Material: Sturdy, high-strength structural Metal housing
• • Dimensions (W × D × H): 440 mm × 214.9 mm × 44 mm (Fits a standard 1U structural profile)
• • Weight: 3 kg packaged weight
• • Mounting: Desktop or standard 19-inch rack-mount installation (rack ears and screws included)
• Cloud Visibility
• • Ruijie Cloud Integration: Functions as a plug-and-play unmanaged device that requires zero software or network-side manual configuration. It maintains Ruijie Cloud topology visibility, allowing it to map its connected endpoints onto your network topology layout remotely, provided there is at least one managed Ruijie master switch or gateway operating elsewhere on the same local network.
• • Warranty: 3-year warranty
