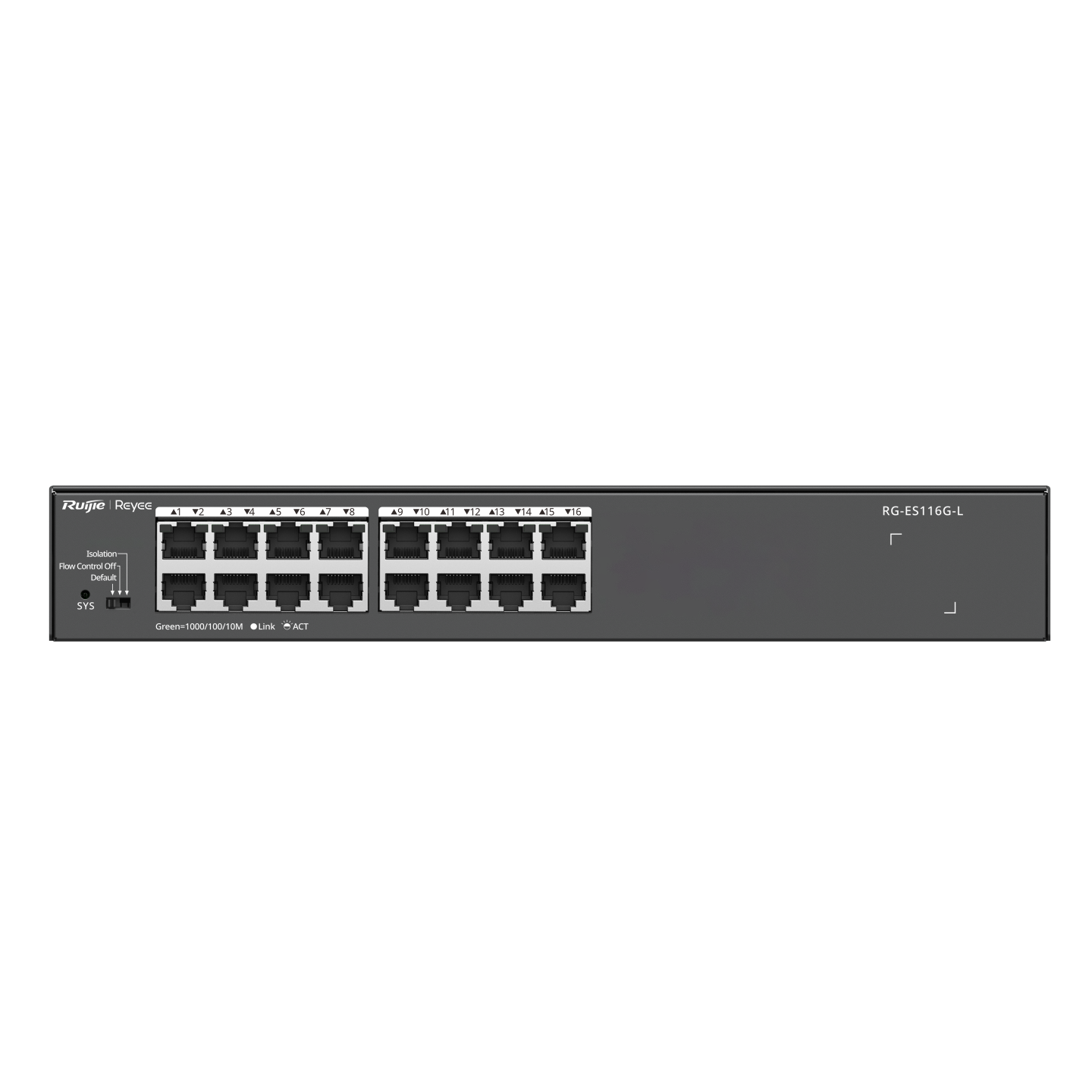

Ruijie Reyee RG-ES116G-L

Features

• Hardware & Interface Specifications
• • Ports: 16 × 10/100/1000BASE-T RJ45 ports (Gigabit Ethernet)
• • PoE Support: Non-PoE
• • Operating Modes: Half-duplex, full-duplex, and Auto-Negotiation
• • Supported Technologies: Auto-MDI/MDIX and Flow Control
• • Surge Protection: 4 kV common mode immunity for service ports
• • Physical DIP Switch Modes:
• • Default Mode: Normal operation; all ports communicate seamlessly with flow control enabled.
• • Flow Control Off Mode: All ports communicate normally, but traffic flow control is deactivated.
• • Isolation Mode: Isorates downlink ports 1 through 14 from each other, allowing them to only communicate with uplink ports 15 and 16 (ideal for safeguarding multi-tenant setups or CCTV backhauls).
• Performance & System Architecture
• • Switching Capacity: 32 Gbps
• • Forwarding Rate: 23.8 Mpps
• • MAC Address Table: Up to 8,000 entries (8K)
• • Flash Memory: 4 MB
• • MTBF: > 200,000 hours
• Power & Environment
• • Power Supply: Internal power layout supporting 100V AC to 240V AC, 50/60 Hz (Rated input current: 0.6 A)
• • Max Power Consumption: 11 W
• • Cooling: Fanless passive heat dissipation for silent operation
• • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• • Operating Humidity: 10% to 90% RH (non-condensing)
• Physical Characteristics
• • Casing Material: Professional Steel/Metal structure
• • Dimensions (W × D × H): 280 mm × 125 mm × 43.6 mm (11.02 in. × 4.92 in. × 1.72 in.)
• • Net Weight: 1.049 kg (Device only)
• • Mounting: Desktop, wall-mountable, or standard rack installation
• Cloud Visibility & Management
• • Ruijie Cloud Integration: It operates completely as a plug-and-play device. However, it retains Ruijie Cloud topology visibility. When paired with at least one managed Ruijie switch or gateway on the local network, it maps itself automatically on your remote Ruijie Cloud App or Web dashboard.
• • Warranty: 3-year warranty
