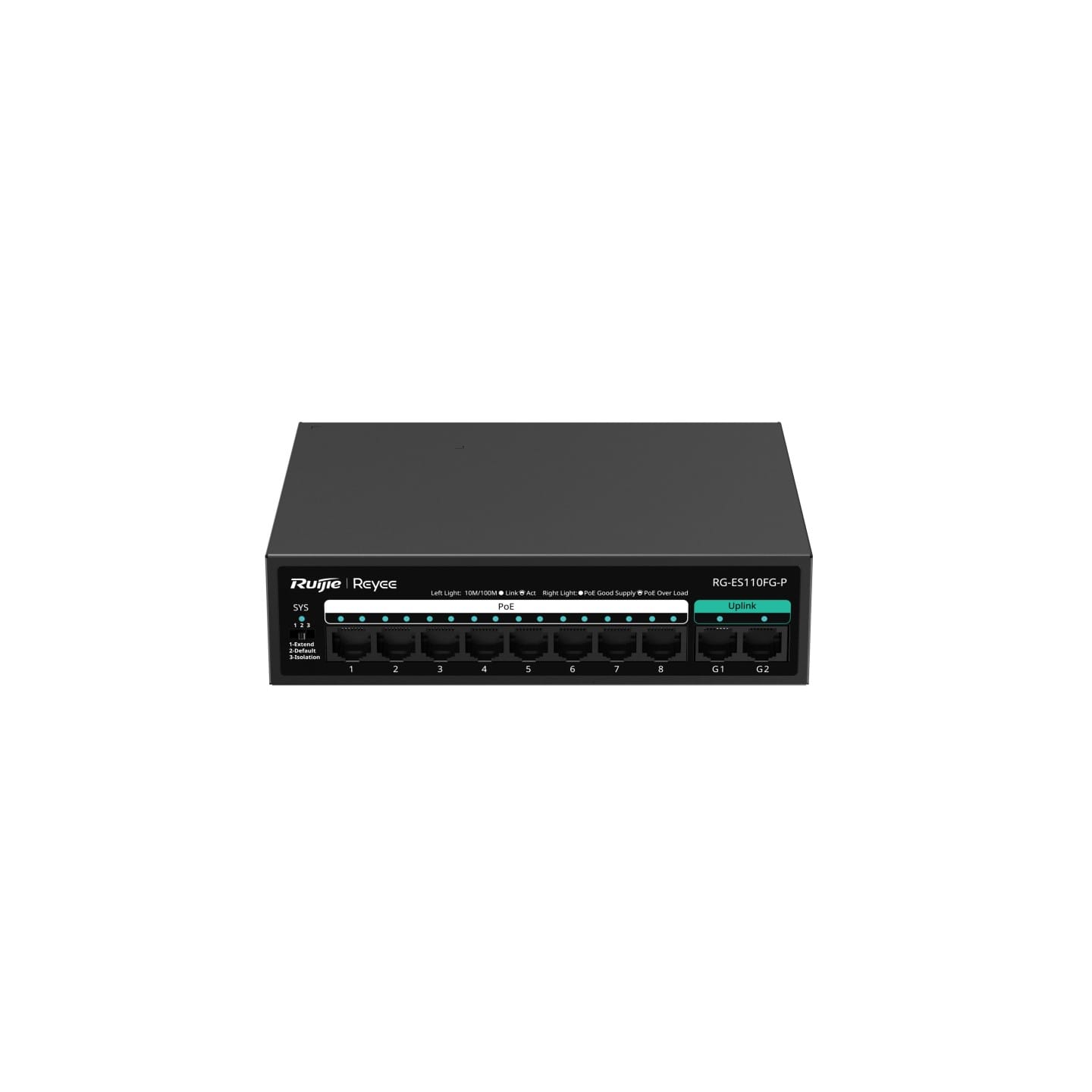

Ruijie Reyee RG-ES110F-P

Features

• Hardware & Interface Specifications
• • Total Ports: 10 × 10/100BASE-T RJ45 ports (8 Downlink + 2 Uplink)
• • PoE Output Ports: 8 × Ports (Ports 1 to 8) supporting 802.3af/at PoE/PoE+
• • Max PoE per Port: 30 W
• • PoE Budget: 110 W total power budget
• • PoE Power Pins: 1–2 (+), 3–6 (-)
• • Surge Protection: 4 kV for service ports
• • Physical DIP Switch Modes:
• • Default Mode: Standard operational layout; all ports communicate at 10/100 Mbps with full flow control active.
• • Extend Mode: Compresses the connection speed on PoE ports 1–8 down to 10 Mbps but expands the viable cable transmission range up to 200 to 250 meters (requires Cat5e or better).
• • Isolation Mode: Isolates downlink ports 1 through 8 from one another, permitting communication exclusively with uplink ports 9 and 10 to insulate against camera broadcast loops.
• Performance & System Architecture
• • Switching Capacity: 2.0 Gbps
• • Forwarding Rate: 1.48 Mpps to 1.5 Mpps
• • MAC Address Table: Up to 8,000 entries (8K)
• • Flash Memory: 2 MB
• • Smart Maintenance: Integrated hardware PoE Watchdog (automatically detects frozen powered items and power-cycles the individual port to restore connectivity).
• Power & Environment
• • Power Supply: Internal power design supporting AC input from 100V AC to 240V AC, 3.0A (50/60 Hz)
• • Power Consumption: 10 W (without PoE load) / up to 110 W (under a full PoE power load)
• • Cooling: Fanless, silent operation leveraging passive thermal cooling through the chassis
• • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• • Operating Humidity: 10% to 90% RH (non-condensing)
• • MTBF: > 200,000 hours
• Physical Characteristics
• • Casing Material: Galvanized structural Metal housing
• • Dimensions (W × D × H): 166 mm × 132.6 mm × 43 mm
• • Weight: 1.22 kg packaged weight
• • Mounting: Desktop, shelf, or wall-mountable
• Cloud Visibility
• • Ruijie Cloud Integration: Operates entirely plug-and-play without direct locally managed software. It retains Ruijie Cloud topology visibility, allowing it to map its uplink status and connected ports to your remote management architecture if at least one managed Ruijie device (like a Reyee gateway or managed switch) is running on the same local area network.
• • Warranty: 3-year warranty
