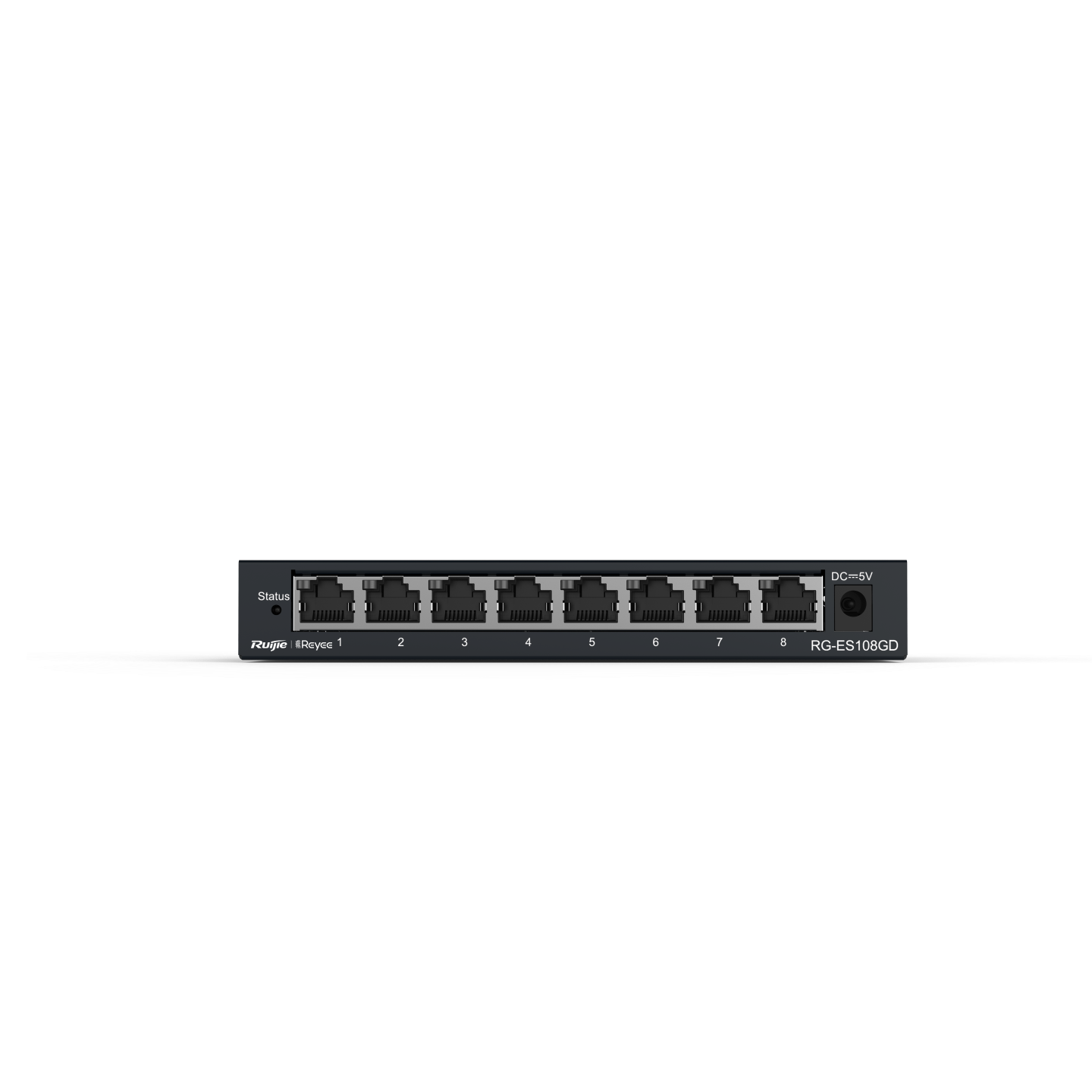

Ruijie Reyee RG-ES108GD

Features

• Hardware & Interface Specifications
• • Ports: 8 × 10/100/1000BASE-T RJ45 ports (Gigabit Ethernet)
• • PoE Support: Non-PoE
• • Operating Modes: Half-duplex, full-duplex, and Auto-Negotiation
• • Supported Technologies: Auto-MDI/MDIX mode
• • Surge Protection: 6 kV lightning/static surge immunity for service ports
• Performance & System Architecture
• • Switching Capacity: 16 Gbps
• • Forwarding Rate: 11.90 Mpps
• • MAC Address Table: Up to 4,000 to 8,000 entries (depending on hardware revision)
• • Flash Memory: 1 MB
• • Switching Method: Store-and-Forward
• • Buffer: Large internal data buffer optimized for smooth video stream transmission (ideal for NVRs and network loops)
• Power & Environment
• • Power Supply: External 5V DC / 1A power adapter
• • Max Power Consumption: ≤ 5 W
• • Cooling: Fanless, completely silent passive cooling through its metal housing
• • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• • Operating Humidity: 10% to 90% RH (non-condensing)
• • MTBF: > 200,000 hours
• Physical Characteristics
• • Casing Material: High-strength Metal housing
• • Dimensions (W × D × H): 160 mm × 75 mm × 24 mm (6.30 in. × 2.95 in. × 0.94 in.)
• • Weight: 350 g packaged weight
• • Mounting: Desktop or wall-mounted installation
• Cloud Visibility & Management
• • Ruijie Cloud Integration: While it cannot be managed or configured locally (plug-and-play), it features Ruijie Cloud topology visibility. If connected to a network that contains at least one managed Ruijie gateway or master switch, this switch automatically populates inside your visual network topology on the Ruijie Cloud App or Web interface.
• • Warranty: 3-year warranty
