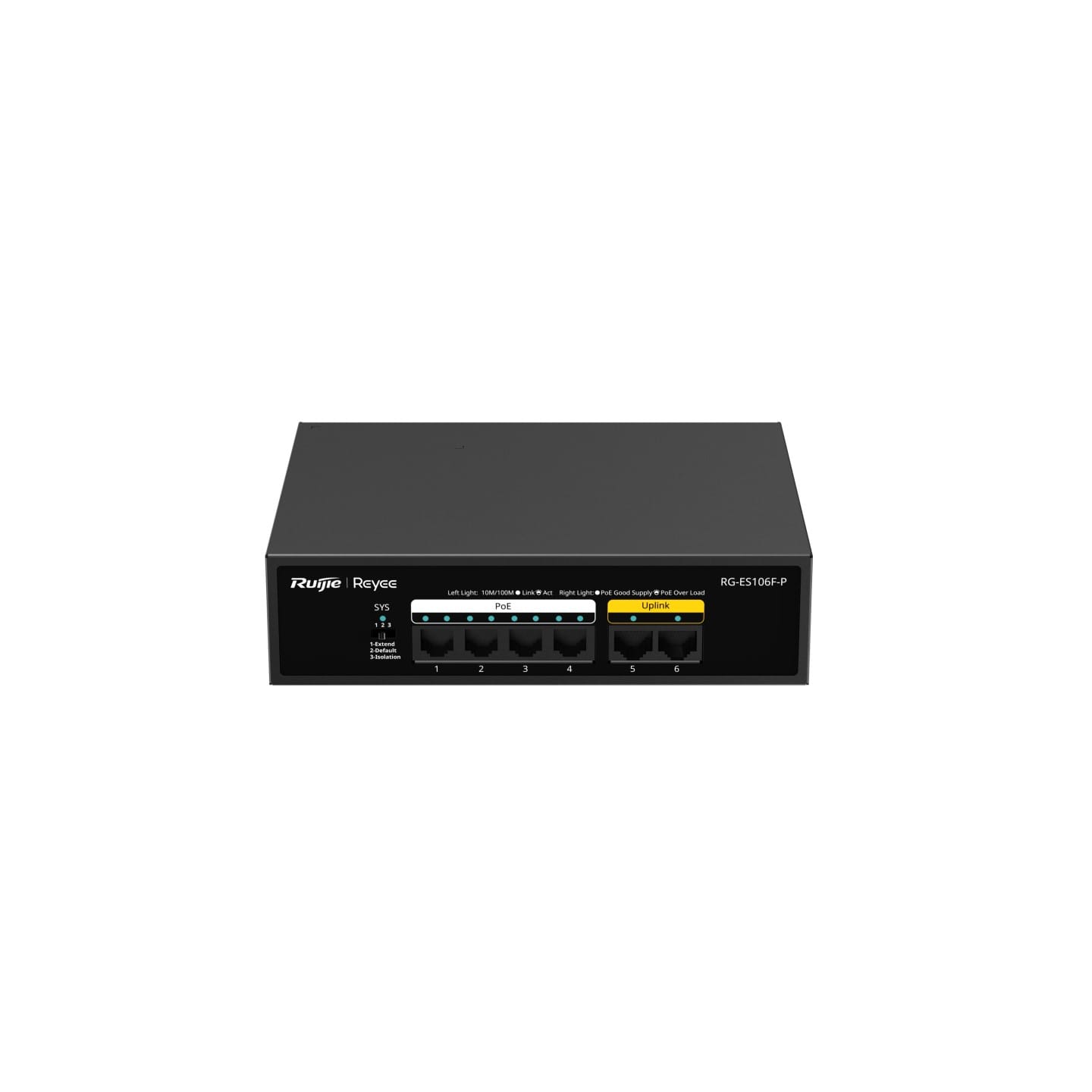

Ruijie Reyee RG-ES106F-P

Features

• Hardware & Interface Specifications
• • Total Ports: 6 × 10/100BASE-T RJ45 ports (4 Downlink + 2 Uplink)
• • PoE Output Ports: 4 × Ports (Ports 1 to 4) supporting 802.3af/at PoE/PoE+
• • Max PoE per Port: 30 W
• • PoE Budget: 54 W total power budget
• • PoE Power Pins: 1–2 (+), 3–6 (-)
• • Surge Protection: ±4 kV for service ports (common mode); ±6 kV for the power connector
• • Physical DIP Switch Modes:
• • Default Mode: Standard configuration; all ports communicate at 10/100 Mbps with flow control active.
• • Extend Mode: Reduces the link speed of PoE ports 1–4 to 10 Mbps but extends the stable transmission distance up to 200 to 250 meters (using Cat5e or better cabling).
• • Isolation Mode: Isorates downlink ports 1 through 4 from each other, allowing them to only communicate with uplink ports 5 and 6 (mitigates broadcast storms in CCTV networks).
• Performance & System Architecture
• • Switching Capacity: 1.2 Gbps
• • Forwarding Rate: 0.89 Mpps (0.9 Mpps)
• • MAC Address Table: Up to 2,000 entries (2K)
• • Flash Memory: 2 MB
• • Smart Features: Integrated PoE Watchdog (automatically power-cycles and reboots frozen or unresponsive IP cameras/devices).
• Power & Environment
• • Power Supply: Internal/Fixed power layout supporting 100V AC to 240V AC, 50/60 Hz (Rated input current: 2 A)
• • Power Consumption: ≤ 6 W (without PoE load) / up to 54 W to 60 W (under full PoE load)
• • Cooling: Fanless, natural passive thermal cooling for silent operation
• • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• • Operating Humidity: 10% to 90% RH (non-condensing)
• • MTBF: > 200,000 hours
• Physical Characteristics
• • Casing Material: High-strength Metal / Steel casing
• • Dimensions (W × D × H): 166 mm × 132.6 mm × 43 mm (6.54 in. × 5.22 in. × 1.69 in.)
• • Weight: 0.65 kg (1.43 lbs) device only
• • Mounting: Desktop or wall-mounted installation
• Cloud Visibility
• • Ruijie Cloud Integration: Operating completely plug-and-play with zero local software configuration required. It maintains Ruijie Cloud topology visibility, meaning it self-maps on your remote dashboard if there is at least one managed Ruijie master switch or gateway operating elsewhere on the same local network.
• • Warranty: 3-year warranty
