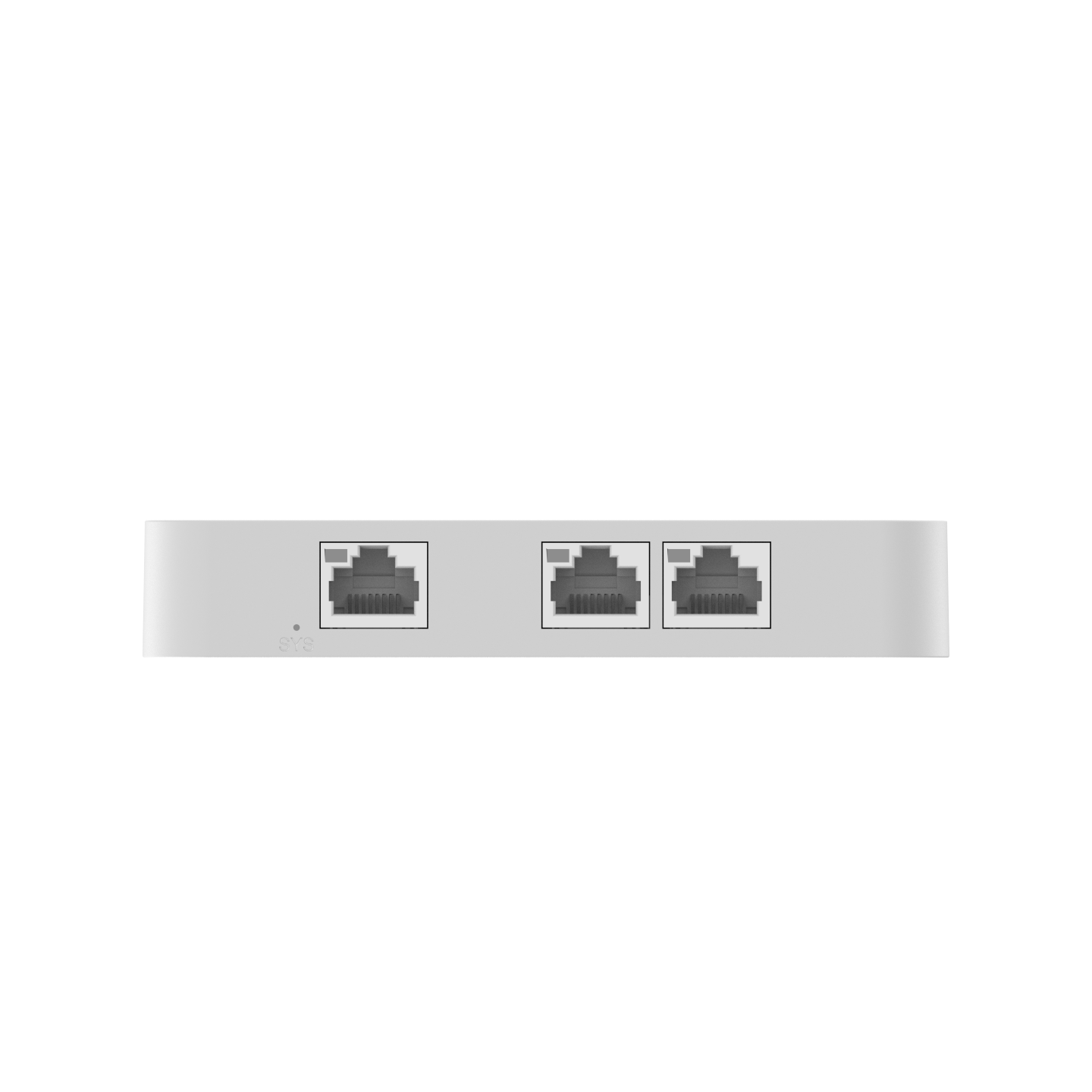

Ruijie Reyee RG-ES103F-P

Features

• Hardware & Interface Specifications
• • Total Ports: 3 × 10/100BASE-T RJ45 ports
• • PoE Input Port: 1 × Port supporting 802.3af/at PoE+ input (receives power/data from an upstream PoE switch or injector)
• • PoE Output Ports: 2 × Ports supporting 802.3af/at PoE/PoE+ output (connects up to two concurrent devices, such as 4MP IP cameras)
• • PoE Budget: Up to 30 W total downstream power budget
• • PoE Pins: 1–2 (+), 3–6 (-)
• • Surge Protection: ±4 kV common mode immunity for service ports
• Performance & System Architecture
• • Switching Capacity: 0.6 Gbps
• • Forwarding Rate: 0.45 Mpps
• • Layer Type: Layer 2 unmanaged (plug-and-play)
• • PoE Watchdog: Integrated automatic recovery for frozen powered devices
• • Transmission Range: Supports up to 350-meter long-distance deployment when connected to a compatible long-distance upstream Ruijie device.
• Power & Environment
• • Power Supply: PoE Power-In via upstream cable (no AC power cord or local power adapter needed)
• • Power Consumption: 2.5 W (without downstream PoE load) / up to 32.5 W (under full PoE load)
• • Cooling: Fanless, natural passive cooling for completely silent operation
• • Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
• Physical Characteristics
• • Casing Material: White plastic housing
• • Dimensions (W × D × H): 120 mm × 34 mm × 20.5 mm (4.72 in. × 1.34 in. × 0.81 in.)
• • Weight: 50 g (0.11 lbs) ultra-lightweight layout
• • Mounting: Wall-mountable or desktop placement
• Cloud Visibility
• • Ruijie Cloud Integration: Functions as a zero-configuration plug-and-play unit. However, like other Reyee unmanaged switches, it retains Ruijie Cloud topology visibility. If there is an active managed Ruijie switch or gateway on the same network, this micro-switch will automatically render itself on your visual network topology dashboard.
• • Warranty: 3-year warranty
