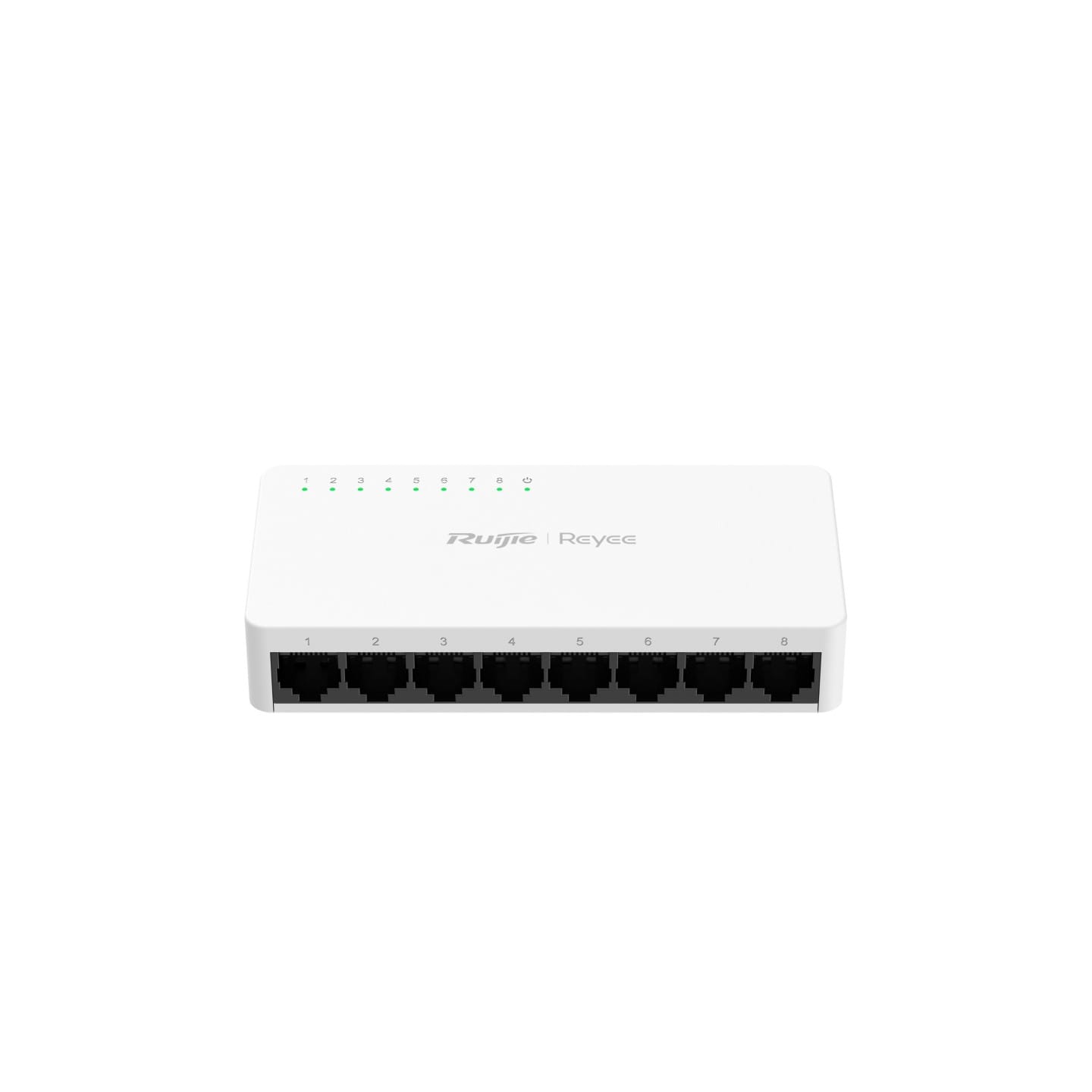

Ruijie Reyee RG-ES08G-L

Features

• Hardware & Interface Specifications
• • Ports: 8 × 10/100/1000BASE-T RJ45 ports (Gigabit Ethernet)
• • PoE Support: Non-PoE
• • Supported Technologies: Auto-Negotiation and Auto-MDI/MDIX
• • Surge Protection: ±4 kV for service ports
• Performance & System Architecture
• • Switching Capacity: 16 Gbps
• • Forwarding Rate: 11.9 Mpps
• • MAC Address Table: Up to 4,000 entries (4K)
• • Flash Memory: 1 MB
• • Layer Type: Layer 2 unmanaged
• Power & Environment
• • Power Supply: External 5V DC / 1A power adapter
• • Max Power Consumption: 3.3 W
• • Cooling: Fanless design for silent operation
• • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• • Operating Humidity: 10% to 90% RH (non-condensing)
• Physical Characteristics
• • Casing Material: Matte plastic housing (White)
• • Dimensions (W × D × H): 124 mm × 60 mm × 24 mm (4.88 in. × 2.36 in. × 0.94 in.)
• • Weight: 91 g (0.20 lbs) without packaging
• • Mounting: Desktop or wall-mountable
• Cloud Visibility & Management
• • Ruijie Cloud Integration: It operates completely plug-and-play with zero local configuration. However, it supports Ruijie Cloud topology visibility, allowing it to appear on your visual network map remotely via the Ruijie Cloud App or Web interface if at least one managed Ruijie switch or gateway is active on the same local network.
• • Warranty: 3-year warranty
