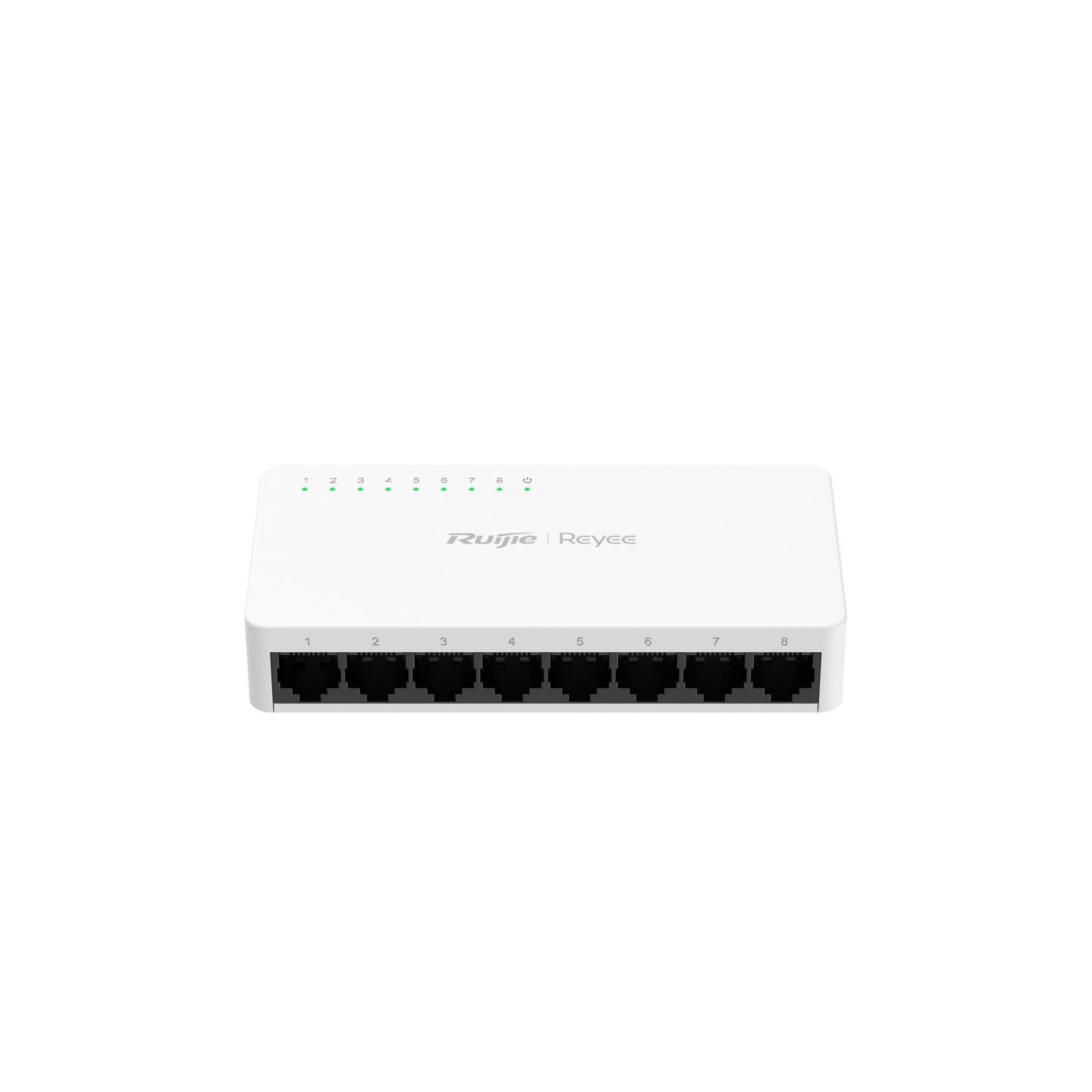

Ruijie Reyee RG-ES08F

Features

• Hardware & Interface Specifications
• • Ports: 8 × 10/100BASE-T RJ45 ports (Fast Ethernet)
• • PoE Support: Non-PoE
• • Supported Technologies: Auto-Negotiation and Auto-MDI/MDIX
• • Surge Protection: ±4 kV for service ports (common mode)
• Performance & System Architecture
• • Switching Capacity: 1.6 Gbps
• • Forwarding Rate: 1.19 Mpps
• • MAC Address Table: Up to 2,000 entries (2K)
• • Layer Type: Layer 2 unmanaged
• Power & Environment
• • Power Supply: External 5V DC / 1A power adapter (included)
• • Max Power Consumption: 2.3 W
• • Cooling: Fanless architecture for completely silent operation
• • Operating Temperature: 0 °C to 45 °C (32 °F to 113 °F)
• • Operating Humidity: 10% to 90% RH (non-condensing)
• Physical Characteristics
• • Casing Material: White matte plastic housing
• • Dimensions (W × D × H): 124 mm × 60 mm × 24 mm (4.88 in. × 2.36 in. × 0.94 in.)
• • Weight: 82 g (approx. 0.18 lbs) device only / 0.25 kg packaged
• • Mounting: Desktop or wall-mountable
• Cloud Visibility & Management
• • Ruijie Cloud Integration: It functions entirely as a zero-configuration plug-and-play switch. However, it retains Ruijie Cloud topology visibility. As long as there is at least one managed Ruijie switch functioning as a gateway/master on the same local network, this unmanaged switch will be discovered and mapped on your remote network dashboard.
• • Warranty: 3-year warranty
